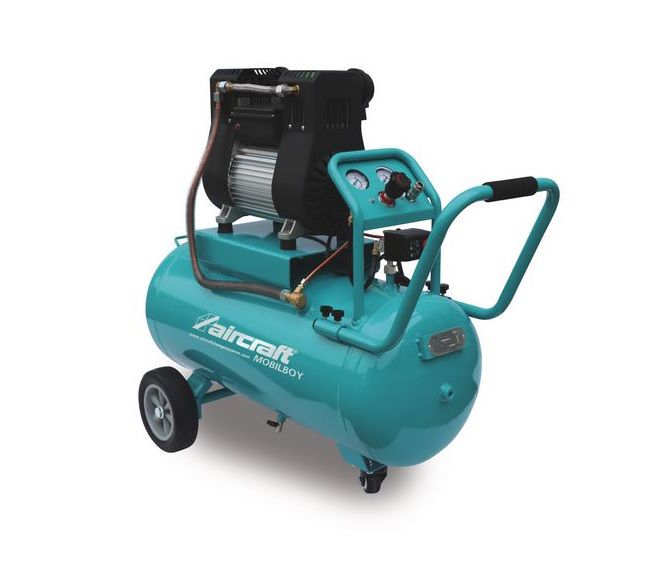

Sturmer Aircraft MOBILBOY SILENCE 320/90 OF E Piston Compressor 10 Bar 2200W 230v
Product Code: STU/2002340
Brand: Stuermer
Available to Order Please Call
01726 828 388
£959.99 Inc. VAT
£799.99 Exc. VAT
Sturmer Aircraft
MOBILBOY SILENCE 320/90 OF E Piston Compressor 10 Bar 2200W 230v
ref: 2002340
Key Features
- MOBILBOY SILENCE 320/90 OF E Twin cylinder reciprocating mobile oil free piston compressor + quiet operation + powder coated air tank + 10 Bar + 90 Ltr + 2200W motor 230v
- Very smooth operation and therefore very quiet
- Oil-free piston compressor: No oil change necessary and no oil in the condensate - best working quality and at the same time long service life of the pneumatic tools
- Compressed air reducer for stepless adjustment of the desired working pressure
- High-quality CONDOR pressure switch
- Electric motor equipped with motor protection switch
- Fully automatic on/off operation
- One pressure gauge each for displaying the tank and working pressure
- Compressed air tank powder-coated
Technical details
- Pressure regulation: Pressure regulator
- Automatic pressure switch: CONDOR
- Drive transmission: Direct-coupled
- Material compressed air line: Flexible armored hose line, copper line
- Compressed air outlet: Two one-hand quick couplings
- Pressure vessel: Powder coated
- Compressor base: Two wheels with solid rubber tires, one swivel castor with parking brake
- Connection cable: 1.8 m
- Connector: CEE 7/4
Compressed air tank
- Maximum pressure: 10 bar
- Pressure vessel capacity: 90 l
- Tank vertical / horizontal: Horizontal
Compressor
- Oil-free / oil-lubricated: Oil free
- Suction capacity approx.: 320 l/min
- Filling capacity approx.: 230 l/min
- Explanation filling capacity: at 6 bar working pressure
- Number of cylinders: 2
- Number of compressor stages: 1
- Piston stroke: 30 mm
- Diameter of piston: 69.7 mm
Dimensions and weights
- Length approx.: 980 mm
- Width/depth approx.: 470 mm
- Height approx.: 950 mm
- Weight approx.: 68.4 kg
Electrical Data
- Delivery power: 1.55 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
Noise emission
- Whisper quiet: Yes
- Sound power level Lw: 90 dB(A)
- Explanation sound power level Lw: Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG)
- Sound pressure level Lp: 72 dB(A)
- Explanation sound pressure level Lp: Sound pressure level at 1 m distance according to DIN 45635 T 13
- VPE: 1
