Sturmer Aircraft MOBILBOY 301/50 E Piston Compressor 10 Bar 2000W 230v

X
Product Code: STU/2003731
Brand: Stuermer
In Offsite Stock - Delivery in 4 to 5 Days
£275.99 Inc. VAT
£229.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities
Qty
Stuermer

Sturmer Aircraft

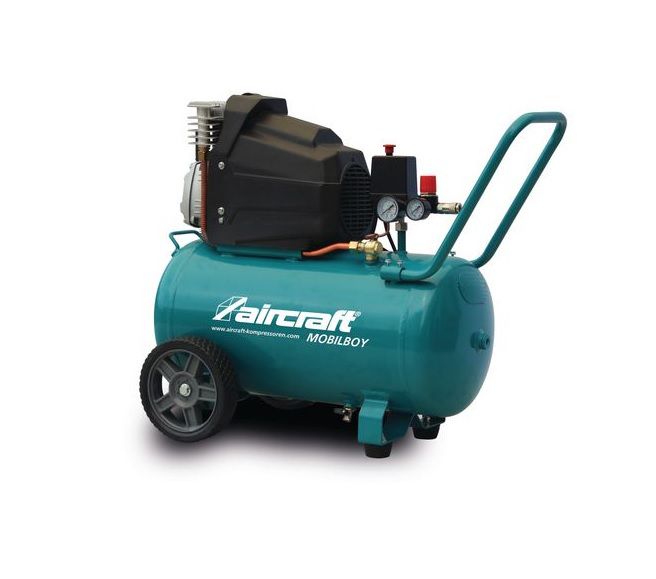

MOBILBOY 301/50 E Piston Compressor 10 Bar 2000W 230v

ref: 2003731



Key Features

  • MOBILBOY 301/50 E Mobile oil lubricated compressor + 10 Bar + 50 Ltr + powder coated compressed air tank + 2000W motor 230v
  • Units with high-performance oil lubrication system, efficient lubrication with optimum sealing at the same time
  • Pressure regulator for continuously variable setting of the desired working pressure
  • Compressed air outlet via one single-handed quick-action coupling
  • Fully automatic on-off operation via pressure switch
  • One pressure gauge each for displaying the tank and working pressure
  • Electric motor equipped with protection switch
  • Powder coated compressed air tank
  • Two plastic wheels at rear



Technical details

  • Pressure regulation: Pressure regulator
  • Automatic pressure switch: ✔
  • Drive transmission: Direct-coupled
  • Material compressed air line: Copper
  • Compressed air outlet: Two one hand quick coupling
  • Condensate drain: Ball valve
  • Pressure vessel: Powder coated
  • Compressor base: Two wheels Wheels with solid rubber tires, two rubber bumpers
  • Connection cable: 1.5 m
  • Connector: CEE 7/4

Compressed air tank

  • Maximum pressure: 10 bar
  • Pressure vessel capacity: 50 l
  • Tank vertical / horizontal: Horizontal
  • Tank surface: Powder coated

Compressor

  • Compressor system: HOS
  • Oil-free / oil-lubricated: Oil lubricated
  • Suction capacity approx.: 300 l/min
  • Filling capacity approx.: 145 l/min
  • Explanation filling capacity: at 6 bar working pressure
  • Number of cylinders: 1
  • Number of compressor stages: 1
  • Piston stroke: 42 mm
  • Diameter of piston: 55 mm

Dimensions and weights

  • Length approx.: 800 mm
  • Width/depth approx.: 360 mm
  • Height approx.: 750 mm
  • Weight approx.: 35 kg

Electrical Data

  • Delivery power: 1.9 kW
  • Supply voltage: 230 V
  • Mains frequency: 50 Hz

Noise emission

  • Sound pressure level Lp: 73 dB(A)
  • Explanation sound pressure level Lp: Sound pressure level at 1 m distance according to DIN 45635 T 13
  • VPE: 1
