Sturmer Aircraft MOBILBOY 185 OF E Piston Compressor 10 Bar 1100W 230v

X
Product Code: STU/2001240
Brand: Stuermer
In Offsite Stock - Delivery in 4 to 5 Days
£227.99 Inc. VAT
£189.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities
Qty
Stuermer

Sturmer Aircraft

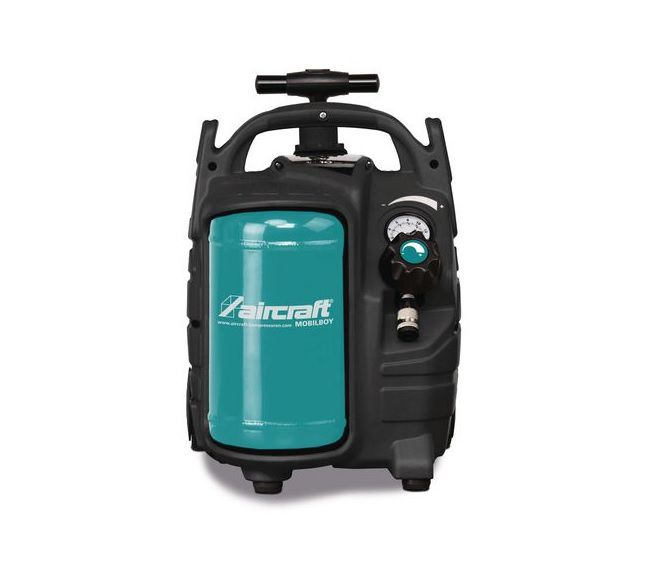

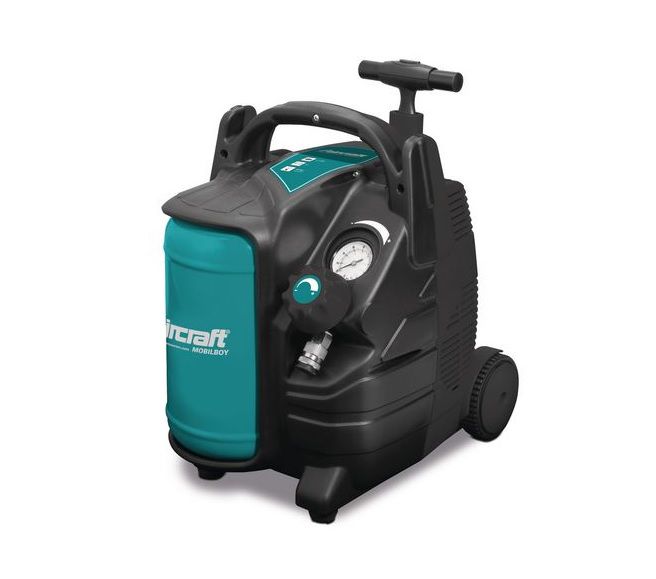

MOBILBOY 185 OF E Piston Compressor 10 Bar 1100W 230v

ref: 2001240



Key Features

  • MOBILBOY 185 OF E Portable oil free compressor + 10 bar + 5 ltr + wheeks & telescopic handle for easy transport + 1100W motor 230v
  • Oil-free, no oil change required and no oil in condensate
  • Compact mobile and portable model

Oil-free compressor

  • No oil change necessary
  • For best quality of work and long service life of compressed air tools

User-friendly design

  • Compact model, therefore portable and portable

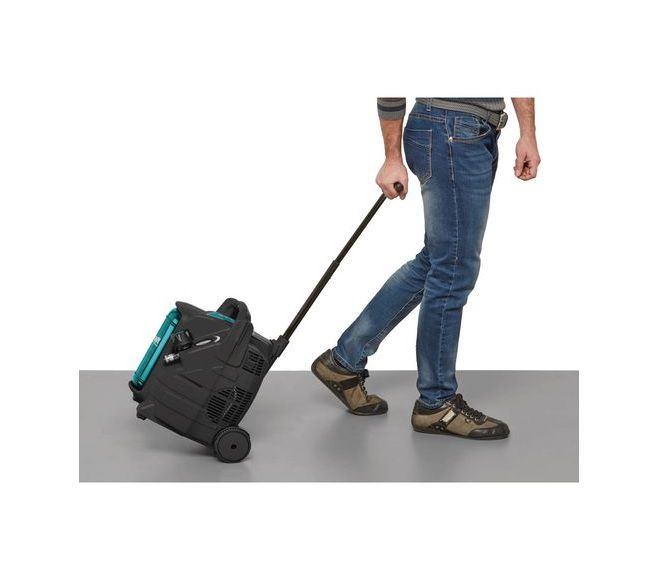

  • Sturdy plastic wheels and extendable handle for easy transport
  • Practical storage compartment integrated in the housing

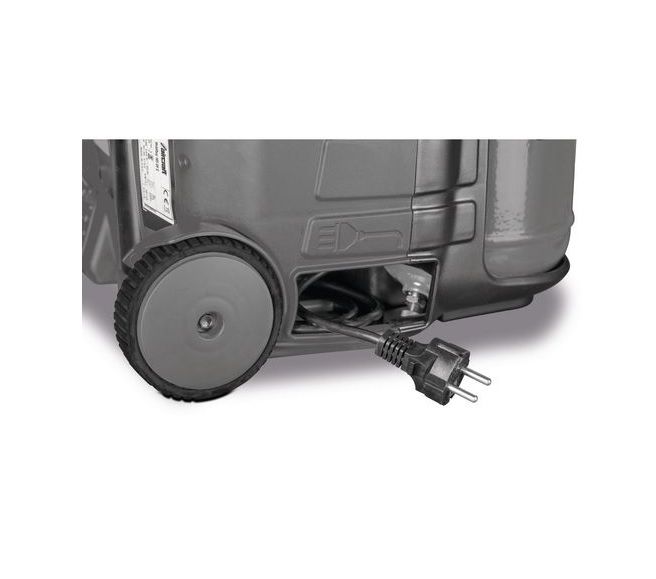

  • Storage compartment for the power line

Complete equipment

  • A manometer for the working pressure
  • A one-hand quick release
  • Pressure regulator for stepless fixation of the working pressure
  • Condensate drain valve on the compressed air tank



Technical details

  • Pressure regulation: Pressure regulator
  • Automatic pressure switch: ✔
  • Drive transmission: V-belt
  • Compressed air outlet: A one-hand quick coupling
  • Pressure vessel: Powder coated
  • Compressor base: Two wheels, two rubber buffers

Compressed air tank

  • Maximum pressure: 10 bar
  • Pressure vessel capacity: 5 l

Compressor

  • Compressor system: WDS
  • Suction capacity approx.: 180 l/min
  • Filling capacity approx.: 90 l/min
  • Explanation filling capacity: at 6 bar working pressure
  • Number of cylinders: 1
  • Number of compressor stages: 1

Dimensions and weights

  • Length approx.: 320 mm
  • Width/depth approx.: 380 mm
  • Height approx.: 467 mm
  • Weight approx.: 12 kg

Electrical Data

  • Delivery power: 1,1 kW
  • Supply voltage: 230 V
  • Mains frequency: 50 Hz

Noise emission

  • Sound power level Lw: 97 dB(A)
  • Explanation sound power level Lw: Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG)
  • VPE: 1



Mobilboy 185 OF E Aircraft Compressor Manual
