Sturmer Aircraft AIRSTAR 853/270/10V Piston Compressor with Belt Drive 10 Bar 5.5kW 415v
Product Code: STU/2028760
Brand: Stuermer
Stock Due Soon
Please Call For Update
Please Call For Update
£2,399.99 Inc. VAT
£1,999.99 Exc. VAT
Sturmer Aircraft

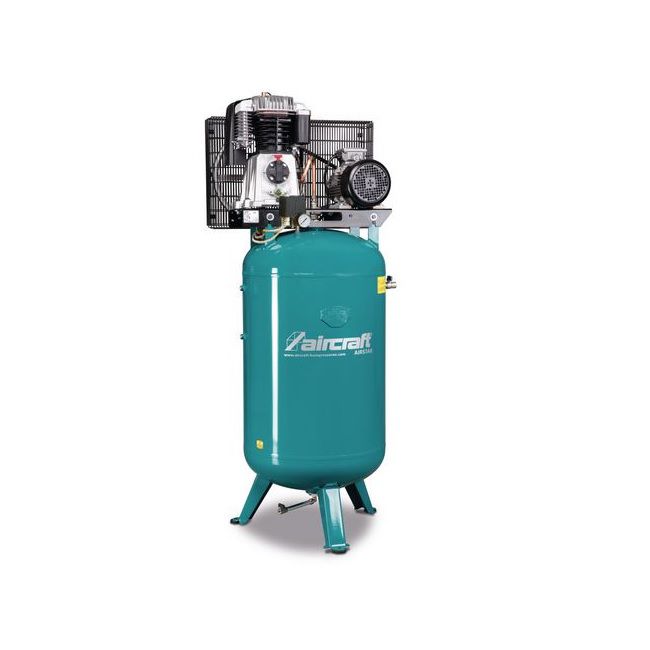

AIRSTAR 853/270/10V Piston Compressor with Belt Drive 10 Bar 5.5kW 415v
ref: 2028760
Key Features
- The two-stage compression 2-cylinder high-performance unit achieves a very low rotational speed, resulting in a particularly quiet and low-vibration run
- This ensures a longer life due to less wear
- Large fan wheel and a cooling air baffle on the cylinder for optimum cooling of the compressor
- Aftercooler with cooling fins and intercooler to the aftercooler ensure a low container inlet temperature and thus less moisture in the compressed air
- High quality electric motor with high torque
- Electric motor equipped with motor protection switch
- With high-quality CONDOR pressure switch
- Equipped with a pressure gauge for tank pressure and a ball valve on the compressed air tank
- Compressed air tank equipped with safety valve, container pressure gauge and condensate drain tap
- Ten-year rust-through warranty on powder-coated compressed air tank
- With all safety devices
- Fully wired
- Stable belt guard made of metal
- Including swinging elements
- Connection to grid by qualified electrician
Technical details
Compressed air tank
- Maximum pressure: 10 bar
- Pressure vessel capacity: 270 l
Compressor
- Compressor system: HOS
- Suction capacity approx.: 860 l/min
- Filling capacity approx.: 720 l/min
- Explanation filling capacity: at 6 bar working pressure
- Number of cylinders: 2
- Number of compressor stages: 2
Dimensions and weights
- Length approx.: 720 mm
- Width/depth approx.: 720 mm
- Height approx.: 1770 mm
- Weight approx.: 146 kg
Electrical Data
- Delivery power: 5.5 kW
- Supply voltage: 400 V
- Mains frequency: 50 Hz
Noise emission
- Sound power level Lw: 95 dB(A)
- Explanation sound power level Lw: Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG)
- Sound pressure level Lp: 79 dB(A)
- Explanation sound pressure level Lp: Sound pressure level at 4 m distance
- VPE: 1
