Sturmer Aircraft AIRBOY 131 OF E Piston Compressor 8 Bar 600W 230v

X
Product Code: STU/2001225
Brand: Stuermer
Stock Available
Delivery typically 3-4 days
£155.99 Inc. VAT
£129.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Stuermer

Sturmer Aircraft

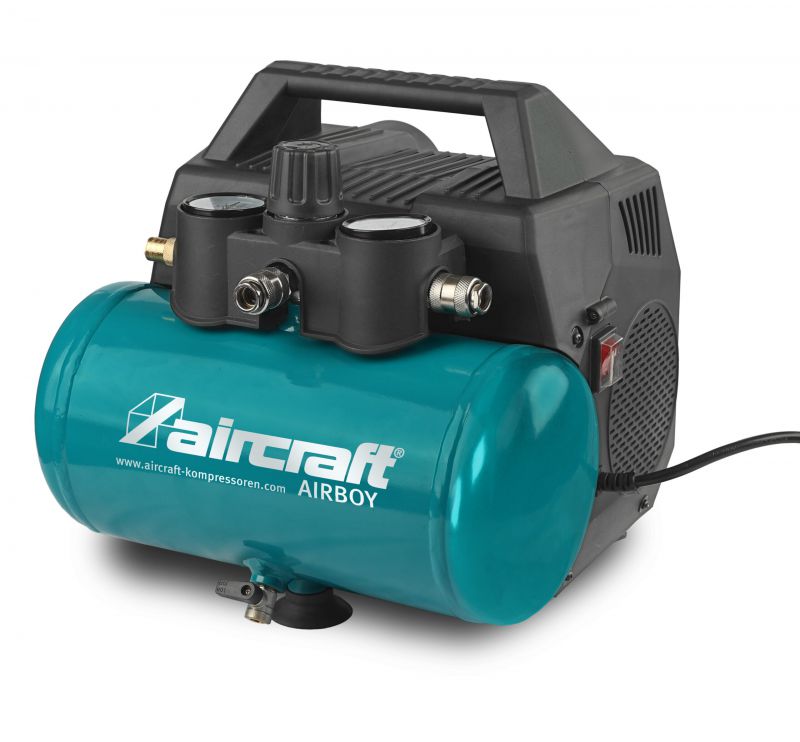

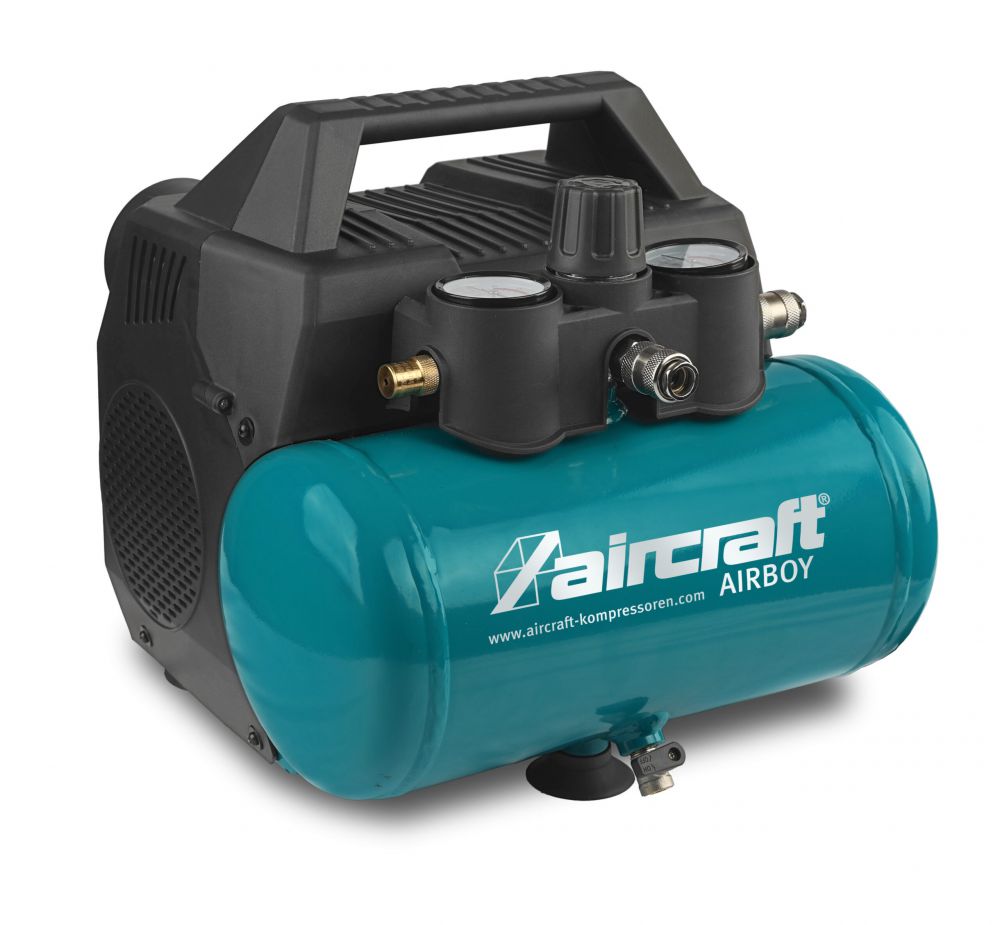

AIRBOY 131 OF E Piston Compressor 8 Bar 600W 230v

ref: 2001225



Key Features

  • AIRBOY 131 OF E Portable piston oil free compressor + twin cylinders + 8 bar + stepless adjustment for correct pressure + twin pressure guages + 600W motor 230v
  • Universally applicable
  • Oil-free piston compressor, therefore no oil change necessary and no oil in the condensate
  • Small, compact design
  • Fully automatic on-off operation
  • Electric motor equipped with motor protection switch
  • Compressed air withdrawal via two one-hand quick couplings
  • Pressure reducer for stepless adjustment of the desired working pressure

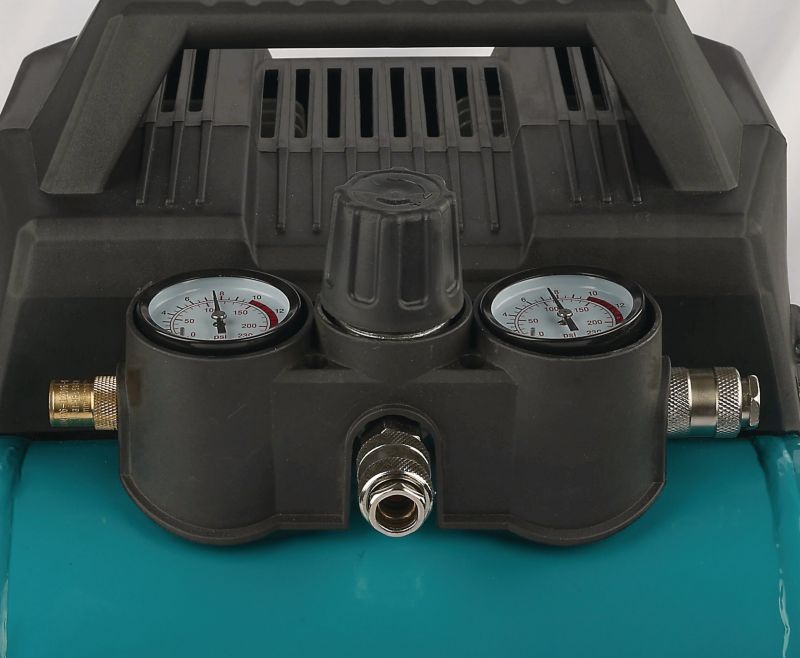

  • One pressure gauge each for display of container and working pressure
  • Three suction cups for safe standing



Technical details

  • Pressure regulation: Pressure regulator
  • Automatic pressure switch: ✔
  • Drive transmission: Direct-coupled
  • Compressed air outlet: Two one-hand quick couplings
  • Condensate drain: Ball valve
  • Pressure vessel: Powder coated
  • Compressor base: Three suction cups
  • Connection cable: 1.8 m
  • Connector: CEE 7/4

Compressed air tank

  • Maximum pressure: 8 bar
  • Pressure vessel capacity: 6 l
  • Tank vertical / horizontal: Horizontal

Compressor

  • Compressor system: WDS
  • Oil-free / oil-lubricated: Oil free
  • Suction capacity approx.: 107 l/min
  • Filling capacity approx.: 42 l/min
  • Explanation filling capacity: at 6 bar working pressure
  • Number of cylinders: 2
  • Number of compressor stages: 1
  • Piston stroke: 5.8 mm
  • Diameter of piston: 63.7 mm

Dimensions and weights

  • Length approx.: 345 mm
  • Width/depth approx.: 340 mm
  • Height approx.: 315 mm
  • Weight approx.: 15.9 kg

Electrical Data

  • Delivery power: 0.6 kW
  • Supply voltage: 230 V
  • Mains frequency: 50 Hz

Noise emission

  • Sound power level Lw: 71 dB(A)
  • Explanation sound power level Lw: Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG)
  • Sound pressure level Lp: 49 dB(A)
  • Explanation sound pressure level Lp: Sound pressure level at 1 m distance according to DIN 45635 T 13
  • VPE: 1
