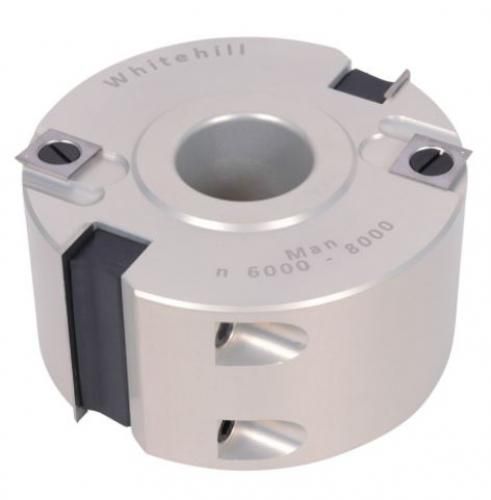

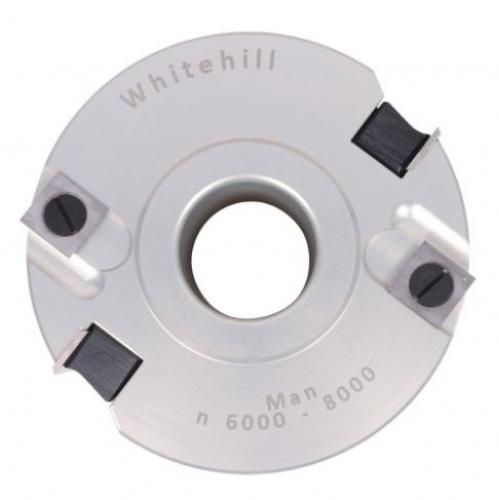

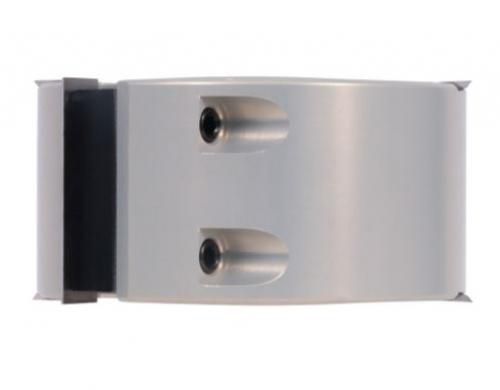

Rebate Cutter Block 100 x 50 x 30mm

Whitehill Rebate Cutter Block 100 x 50 x 30mm - (Ref: WHRCB100)

• Spindle moulder cutter block, specifically designed for rebating. Fits any moulder with a 30mm diameter spindle.
• The Aluminium cutter head has 2, double edged, planing knives and 4 spur cutters. The spur cutters give a clean crisp edge to the internal corner when rebating. The spurs can removed if required.
• The rebate block can be used for cutting curved timber, but should only be used with an appropriate ring fence and guard fitted to the spindle moulder.
• The tungsten carbide (TC) cutting knives are reversible, the tungsten carbide (TC) spur cutters have 4 points and can be rotated as they wear.
• Suitable for MDF boards, ply or hard-textured, glued and solid timber.
• Supplied with 4mm Alan key and knife setting jig.

• Diameter: 100mm
• Height: 50mm
• Bore: 30mm
• Weight: 1.0kg
• Min. RPM: 6000
• Max. RPM: 8000
• Rating: Trade

HSE Information Sheet - Spindle Moulder Tooling
