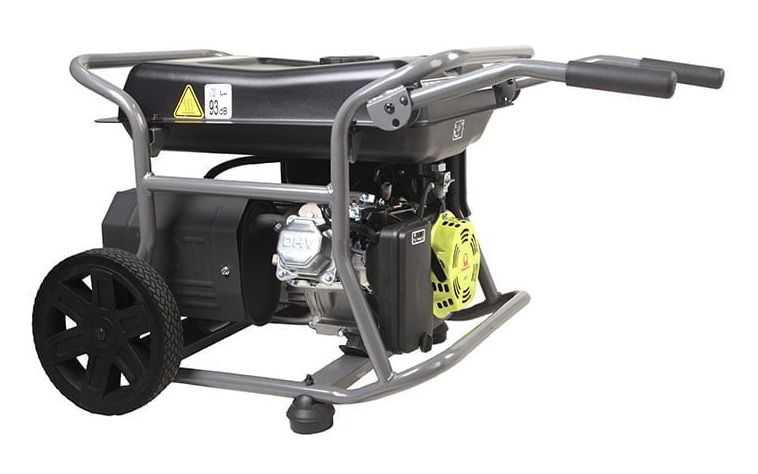

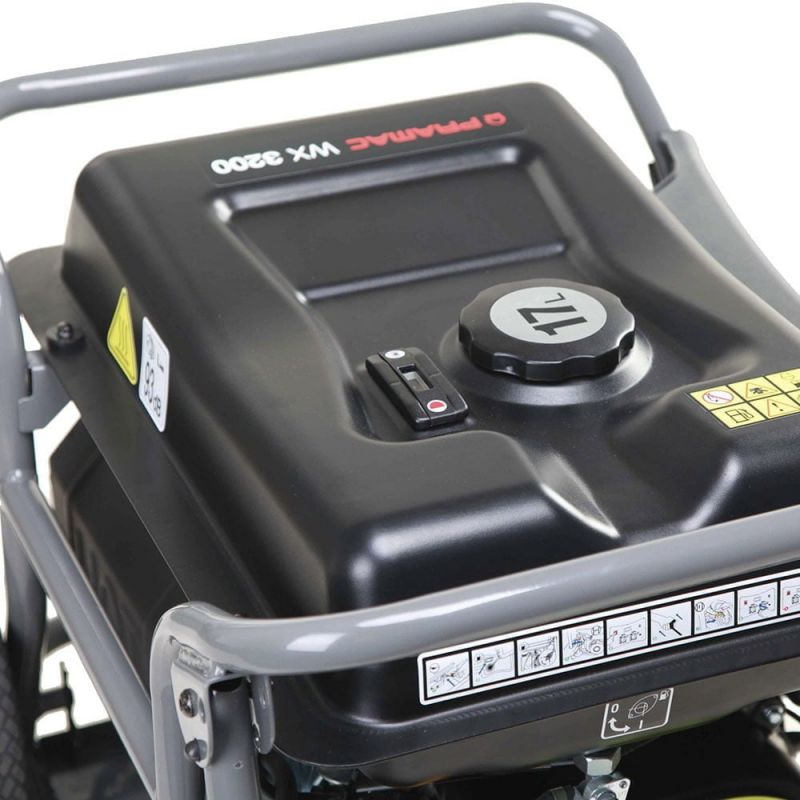

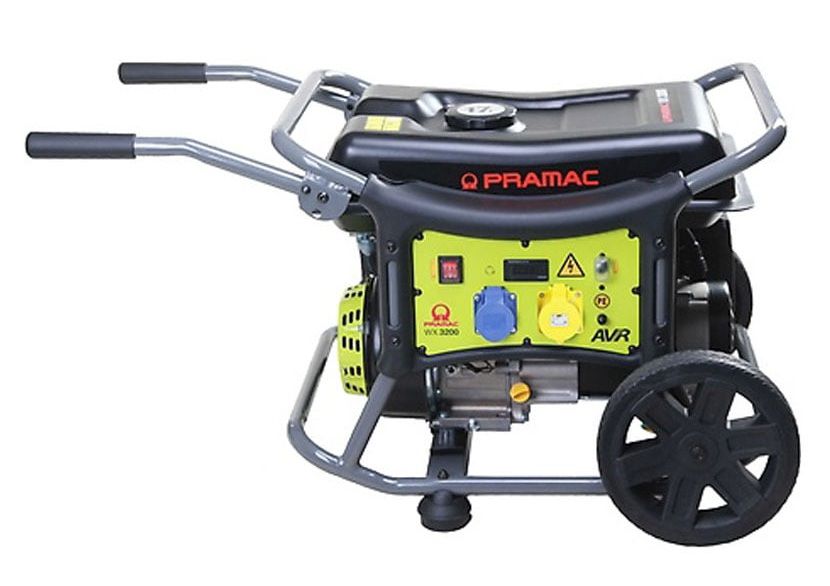

Pramac WX 3200 Portable Petrol Generator with Handles and Wheel Kit - WX3200-230/115

Pramac WX 3200 Portable Petrol Generator with Handles and Wheel Kit

ref: WX3200-230/115 / PR242SXIZ02

• Pramac WX3200: This generator delivers affordable and reliable power for your recreational or emergency home backup use.

A portable petrol generator ideal to power outdoor activities, job sites and emergency home use. Includes:

• Equipped with an OHV engine which provides consistent power for multiple applications.
• Handles and wheels kit integrated for easy transportation.
• Oil funnel and oil bottle included in the carton box.
• Practical and quick user starting instructions (decal).

Control Panel:

• Selector switch: OFF – ON
• Digital Display: Voltmeter, Frequency meter, Hourmeter
• Protections: Thermal protection

Sockets:

• 1 X CEE 115V 32A IP44
• 1 X CEE Socket 230V 16A IP44

Main Features

• Frequency Hz: 50
• Voltage V: 230/115
• Phase: 1
• Max Power Watts: 2850
• Rated Power Watts: 2450

Engine specifications

• Engine Brand: Pramac
• Type: OHV
• Exhaust emission level: Stage V
• Operating Speed Nominal rpm: 3000
• Fuel: Petrol
• Starting Systems: Recoil
• Oil capacity l: 0.6
• Low Oil Shutdown: yes

Alternator Specifications

• Voltage regulation system: AVR

Dimensional data

• Length (L) mm: 680
• Width (W) mm: 602
• Height (H) mm: 523
• Dry weight kg: 49

Autonomy

• Fuel tank capacity: 17
• Fuel consumption 50% 1/h: 1.04
• Running time 50% h: 16.3

Noise level

• Guaranteed noise level (LWA) dB(A): 93

Genset Control:

• COMMANDS • Selector switch: OFF - ON • Recoil Start
• INSTRUMENTATION: • Voltmeter • Frequency meter • Hourmeter • Fuel gauge
• PROTECTIONS  • Thermal protection • Oil Guard
• SOCKET TYPE: 2P+T CEE 115V 32A IP44, 2P+T CEE 230V 16A IP44.
