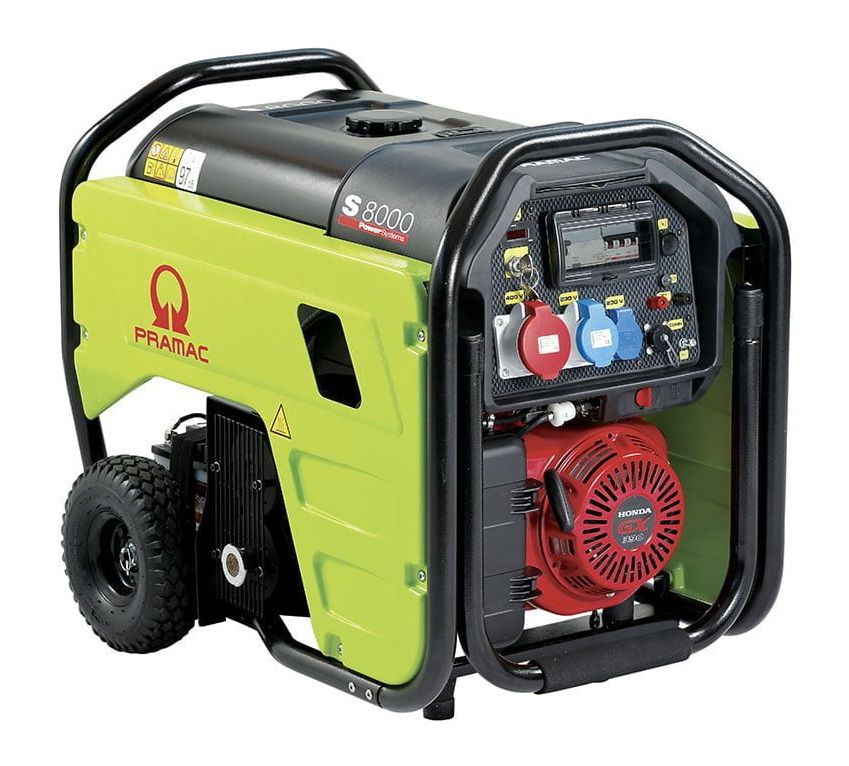

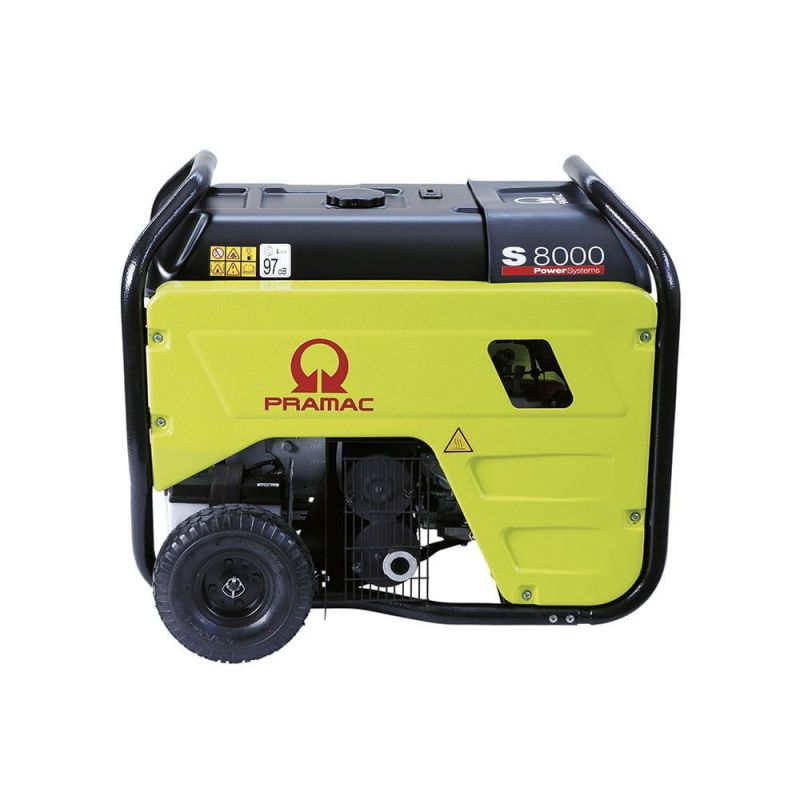

Pramac S8000 Portable Petrol Generator 230V/400V 8.3kva - S8000-400

Pramac S8000 Portable Petrol Generator 230V/400V 8.3kva

ref: S8000-400 / PD652TH2Z05

• Pramac S8000: This robust and powerful generator is designed for professional and intensive use. The S8000 is easy to carry and to configure and has a strong and compact frame.

A compact professional generator equipped with full control panel inclusive of digital display. This generator is ready to move where power is needed thanks to the integrated handle and wheels. Includes:

• Practical quick user instructions leaflet on the front panel.
• Integrated transport kit.

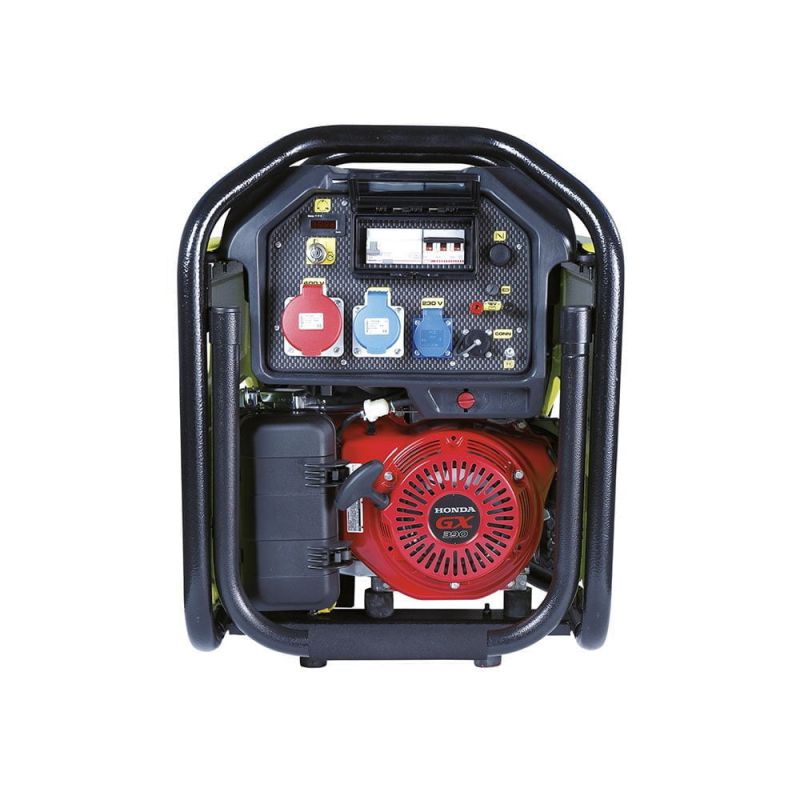

Control Panel:

• Selector switch with key: OFF – ON-START
• Pushbutton Choke
• CONNector for AMF/RSS (AMF/RSS Accessory available not included)

Instrumentation:

• Voltmeter
• Hours-meter
• Frequency meter
• Fuel gauge

Output:

• Battery Charger 12V DC

Sockets:

• 1 x SCHUKO 230V 16A IP54
• 1 x CEE 230V 16A IP44
• 1 x CEE 400V 16A IP44

Main Features

• Frequency Hz: 50
• Voltage V: 400/230
• Power factor cos ϕ: 0.8
• Phase: 3

Power Rating *

• Emergency Standby Power ESP kVA: 8.3
• Emergency Standby Power ESP kW: 6.6
• Continuous power COP kVA :7.0
• Continuous power COP kW: 5.6

Engine specifications

• Engine Brand: Honda
• Model: GX390 Electric
• Engine cooling system: Air
• Displacement cm³: 389
• Aspiration: Natural
• Operating Speed-Nominal rpm: 3000
• Speed governor: Mechanical
• Fuel: Petrol
• Oil capacity l: 1.1
• Starting system: Electric (+ Recoil)

Alternator Specifications

• Brushes
• Class: H
• IP protection: 23
• Poles: 2
• Frequency Hz: 50
• Voltage regulation system: Electronic
• Standard AVR: AVR 860

Dimensional data

• Length (L) mm: 840
• Width (W) mm: 615
• Height (H) mm: 753
• Dry weight kg: 112
• Fuel tank capacity l: 27

Autonomy

• Fuel consumption at 75% of Load l/h: 2.15
• Fuel consumption at 100% of Load l/h: 2.87
• Running time at 75% of load h: 12.56
• Running time at 100% of load h: 9.41

Noise level

• Guaranteed noise level (LWA) dB(A): 97
• Noise pressure level @ 7 m dB(A): 69

* Ratings definition (ISO-8528)

• ESP - Emergency Standby Power: It is the maximum power available during a variable electrical power sequence, under the stated operating conditions, for which a generating set is capable of delivering in the event of a utility power outage or under test conditions for up to 200 h of operation per year with the maintenance intervals and procedures being carried out as prescribed by the manufacturers. The permissible average power output over 24 h of operation shall not exceed 70 % of the ESP.
• COP - Continuos Power: It is defined as being the maximum power which a generating set is capable of delivering continuously for an unlimited number of hours, with the maintenance intervals and procedure being carried out as prescribed by the manufacturers.
