Pramac S12000 Portable Petrol Generator 230V 11.9kva - S12000-230/115

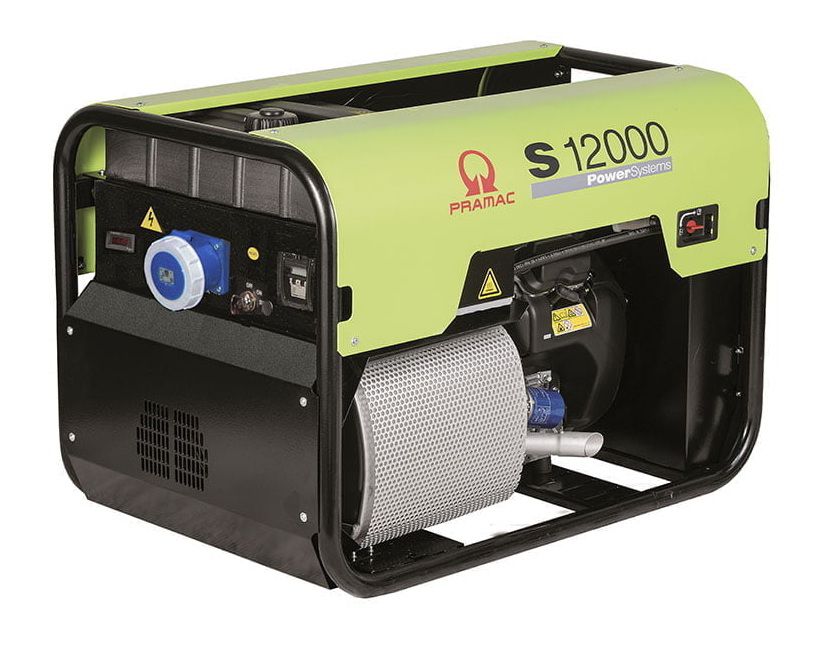

Pramac S12000 Portable Petrol Generator 230V 11.9kva

ref: S12000-230/115 / PD103SH200U

• Pramac S12000 has been designed for an intensive and professional use. As your perfect partner for work, this powerful generator is robust and easy to carry.
• Your perfect partner! This high quality and powerful portable generator is built to provide constant power for your professional activities.

Control Panel:

• Selector switch with key: OFF – ON - START
• CONNector for AMF/RSS (AMF/RSS Accessory available not included)

Instrumentation:

• Voltmeter
• Hours-meter
• Frequency Meter

Sockets:

• 1 x CEE 230V 63A

Main Features

• Frequency Hz: 50
• Voltage V: 230
• Power factor cos ϕ: 0.9
• Phase: 1

Power Rating *

• Emergency Standby Power ESP kVA: 11.9
• Emergency Standby Power ESP kW: 10.7
• Continuous power COP kVA :10.0
• Continuous power COP kW: 9.1

Engine specifications

• Engine Brand: Honda
• Model: GX630
• Engine cooling system: Air
• Displacement cm³: 688
• Aspiration: Natural
• Operating Speed-Nominal rpm: 3000
• Speed governor: Mechanical
• Fuel: Petrol
• Oil capacity l: 1.9
• Starting system: Electric

Alternator Specifications

• Brushes
• Class: H
• IP protection: 23
• Poles: 2
• Frequency Hz: 50
• Voltage regulation system: AVR
• Standard AVR: ASR

Dimensional data

• Length (L) mm: 960
• Width (W) mm: 641
• Height (H) mm: 667
• Dry weight kg: 162
• Fuel tank capacity l: 24

Autonomy

• Fuel consumption at 75% of Load l/h: 4.07
• Fuel consumption at 100% of Load l/h: 5.43
• Running time at 75% of load h: 5.90
• Running time at 100% of load h: 4.42

Noise level

• Guaranteed noise level (LWA) dB(A): 96
• Noise pressure level @ 7 m dB(A): 68

* Ratings definition (ISO-8528)

• ESP - Emergency Standby Power: It is the maximum power available during a variable electrical power sequence, under the stated operating conditions, for which a generating set is capable of delivering in the event of a utility power outage or under test conditions for up to 200 h of operation per year with the maintenance intervals and procedures being carried out as prescribed by the manufacturers. The permissible average power output over 24 h of operation shall not exceed 70 % of the ESP.
• COP - Continuos Power: It is defined as being the maximum power which a generating set is capable of delivering continuously for an unlimited number of hours, with the maintenance intervals and procedure being carried out as prescribed by the manufacturers.
