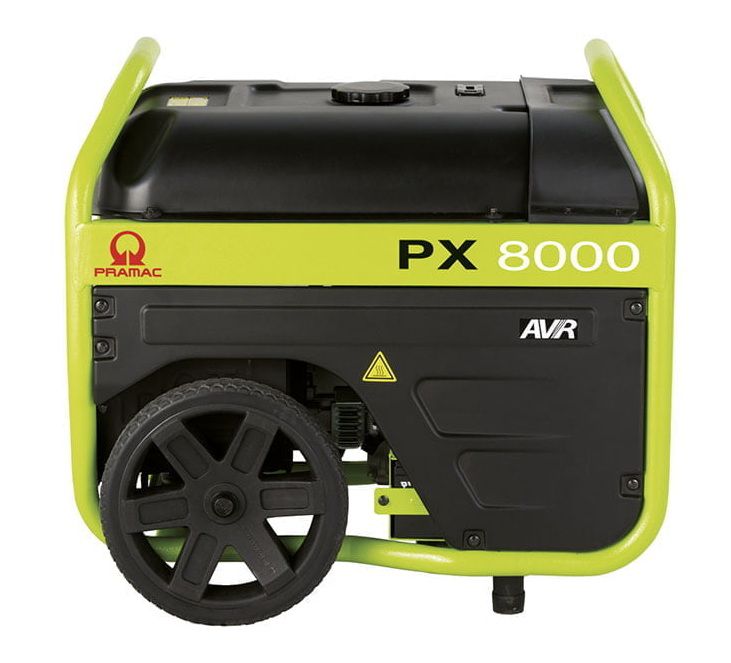

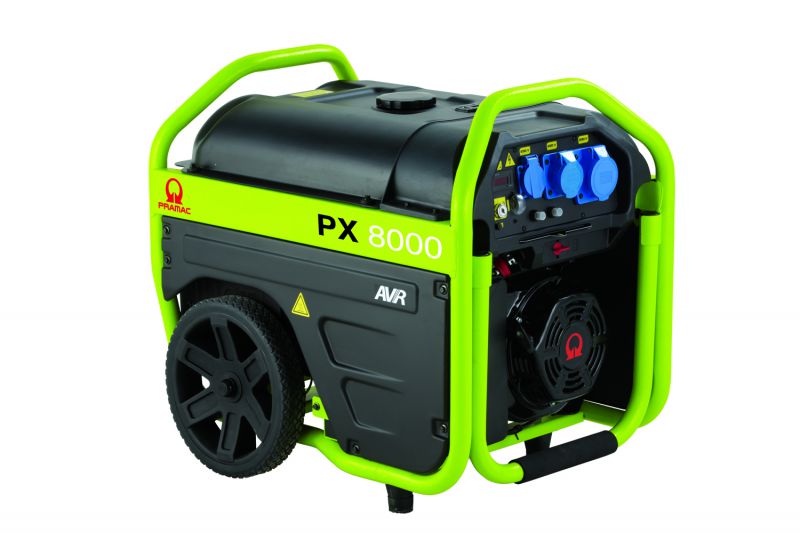

Pramac PX8000UK Portable Petrol Generator 230V/115V 6kva - PX8000-230/115

Pramac PX8000UK Portable Petrol Generator 230V/115V 6kva

PX8000-230/115 / PK452SX2001

• Pramac PX8000: Engineered for your professional performance, this generator is designed to withstand the rigours and intensity of job site applications and construction sites.

A professional portable generator designed to withstand the rigours and intensity of job site applications and construction sites. Includes:

• Equipped with an OHV engine which provides consistent power for multiple applications.
• Handles and wheels kit integrated for easy transportation.
• Practical and quick user starting instructions.

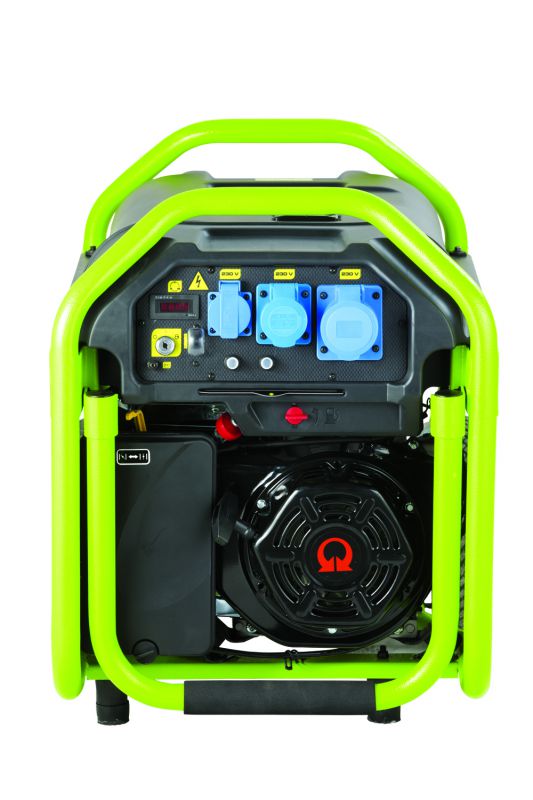

Control Panel:

• Selector switch: OFF – ON
• Digital Display: Voltmeter, Frequency meter, Hourmeter, Quick start Guide
• Protections: Thermal protection, oil guard

Sockets:

• 1 X 2P+T CEE 115V 32A IP44
• 1 X 2P+T CEE 230V 32A IP44

Main Features

• Frequency Hz: 50
• Voltage V: 230/115
• Power factor cos ϕ: 0.9
• Phase: 1

Power Rating *

• Emergency Standby Power ESP kVA: 6.0
• Emergency Standby Power ESP kW: 5.4
• Continuous power COP kVA :5.0
• Continuous power COP kW: 4.5

Engine specifications

• Model: SR190F
• Engine cooling system: Air
• Displacement cm³: 420
• Aspiration: Natural
• Operating Speed-Nominal rpm: 3000
• Speed governor: Mechanical
• Fuel: Petrol
• Oil capacity l: 1.1
• Starting system: Electric

Alternator Specifications

• Class: F
• IP protection: 23/44
• Poles: 2
• Frequency Hz: 50
• Voltage regulation system: Electronic
• Standard AVR: yes

Dimensional data

• Length (L) mm: 727
• Width (W) mm: 515
• Height (H) mm: 670
• Dry weight kg: 94.5
• Fuel tank capacity l: 27

Autonomy

• Fuel consumption at 75% of Load l/h: 2.00
• Fuel consumption at 100% of Load l/h: 2.66
• Running time at 75% of load h: 13.50
• Running time at 100% of load h: 10.15

Noise level

• Guaranteed noise level (LWA) dB(A): 97
• Noise pressure level @ 7 m dB(A): 69

* Ratings definition (ISO-8528)

• ESP - Emergency Standby Power: It is the maximum power available during a variable electrical power sequence, under the stated operating conditions, for which a generating set is capable of delivering in the event of a utility power outage or under test conditions for up to 200 h of operation per year with the maintenance intervals and procedures being carried out as prescribed by the manufacturers. The permissible average power output over 24 h of operation shall not exceed 70 % of the ESP.
• COP - Continuos Power: It is defined as being the maximum power which a generating set is capable of delivering continuously for an unlimited number of hours, with the maintenance intervals and procedure being carried out as prescribed by the manufacturers.
