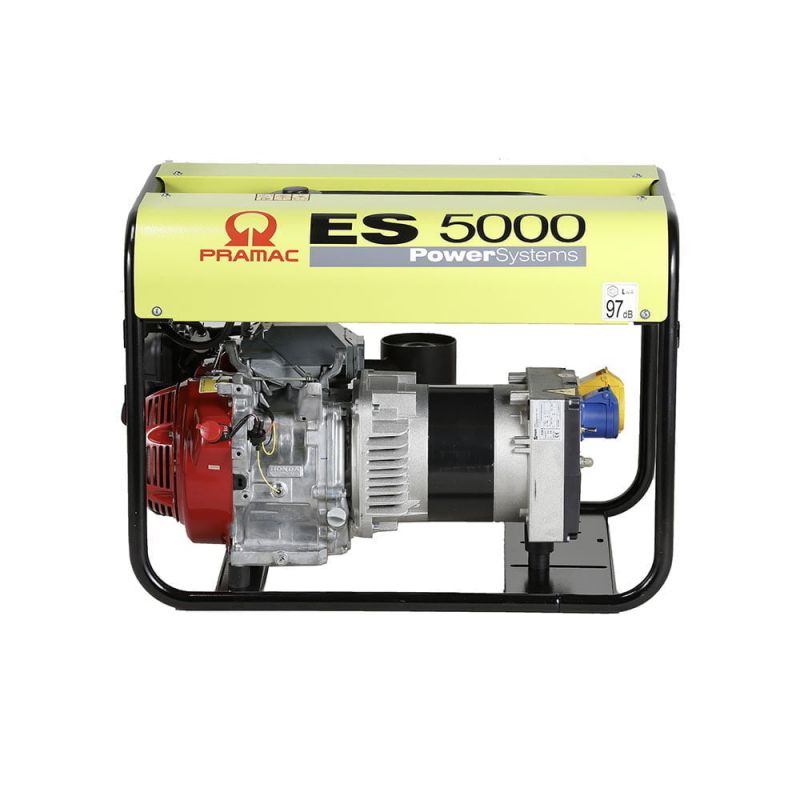

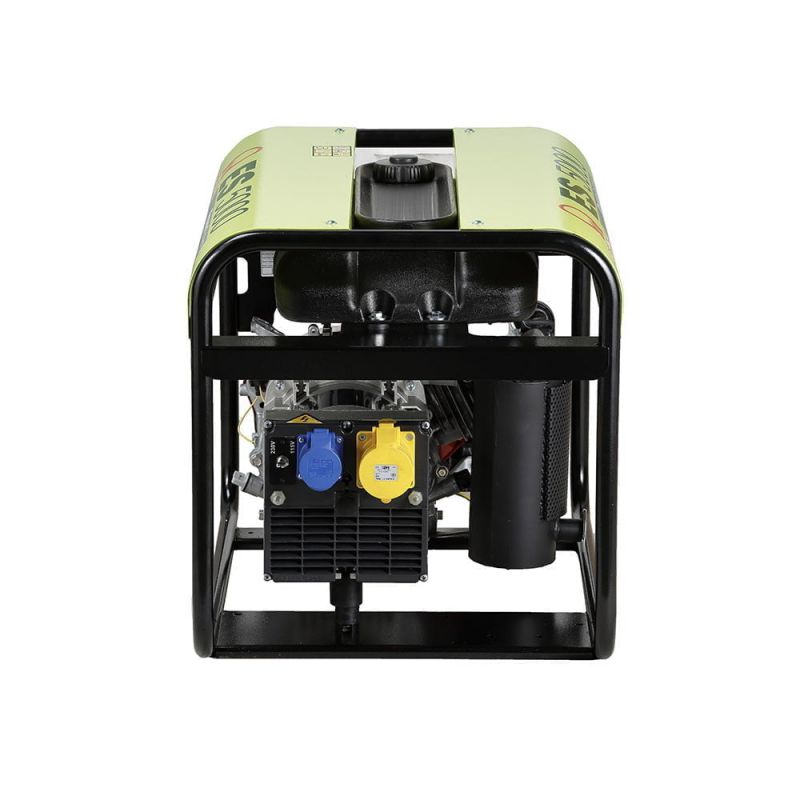

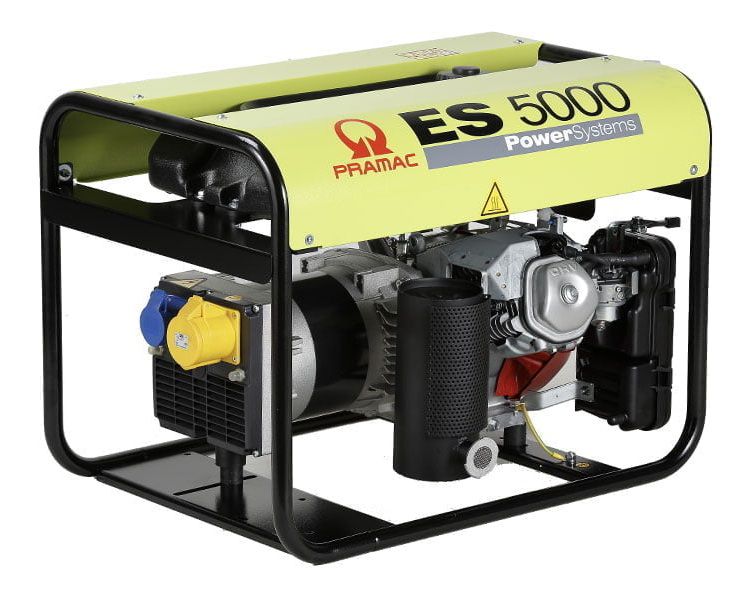

Pramac ES5000 Portable Petrol Generator 230V/115V 5.1kva - ES5000-230/115

Pramac ES5000 Portable Petrol Generator 230V/115V 5.1kva

ref: ES5000-230/115 / PE402SH1006

• The Pramac ES5000 offers a generous fuel tank and basic configuration which makes it the perfect solution for when you need a long lasting professional generator.

Pramac ES5000: Providing a long lasting professional power supply, it is a compact generator with a generous fuel tank and basic configuration. Includes:

• Professional GX Honda engine.
• Recoil starting system.
• Super silent muffler.
• Easy to transport.
• Long running fuel tank.

Control Panel:

• Selector switch OFF – ON to start the engine
• Selector switch 115/230V to select voltage
• Fuel tap for easy storage
• Choke lever
• Protections: thermal protection, oil guard

Sockets:

• 1 x CEE 115V 16A IP44
• 1 x CEE 230V 16A IP44

Main Features

• Frequency Hz: 50
• Voltage V: 230/115
• Power factor cos ϕ: 0.9
• Phase: 1

Power Rating *

• Emergency Standby Power ESP kVA: 5.1
• Emergency Standby Power ESP kW: 4.6
• Continuous power COP kVA :4.2
• Continuous power COP kW: 3.9

Engine specifications

• Engine Brand: Honda
• Model: GX270 Recoil
• Engine cooling system: Air
• Displacement cm³: 270
• Aspiration: Natural
• Operating Speed-Nominal rpm: 3000
• Speed governor: Mechanical
• Fuel: Petrol
• Oil capacity l: 1.1
• Starting system: Recoil

Alternator Specifications

• Brushless
• Class: H
• IP protection: 23
• Poles: 2
• Frequency Hz: 50
• Voltage regulation system: Capacitor

Dimensional data

• Length (L) mm: 729
• Width (W) mm: 500
• Height (H) mm: 536
• Dry weight kg: 61
• Fuel tank capacity l: 11

Autonomy

• Fuel consumption at 75% of Load l/h: 1.67
• Fuel consumption at 100% of Load l/h: 2.22
• Running time at 75% of load h: 6.59
• Running time at 100% of load h: 4.95

Noise level

• Guaranteed noise level (LWA) dB(A): 97
• Noise pressure level @ 7 m dB(A): 69

* Ratings definition (ISO-8528)

• ESP - Emergency Standby Power: It is the maximum power available during a variable electrical power sequence, under the stated operating conditions, for which a generating set is capable of delivering in the event of a utility power outage or under test conditions for up to 200 h of operation per year with the maintenance intervals and procedures being carried out as prescribed by the manufacturers. The permissible average power output over 24 h of operation shall not exceed 70 % of the ESP.
• COP - Continuos Power: It is defined as being the maximum power which a generating set is capable of delivering continuously for an unlimited number of hours, with the maintenance intervals and procedure being carried out as prescribed by the manufacturers.
