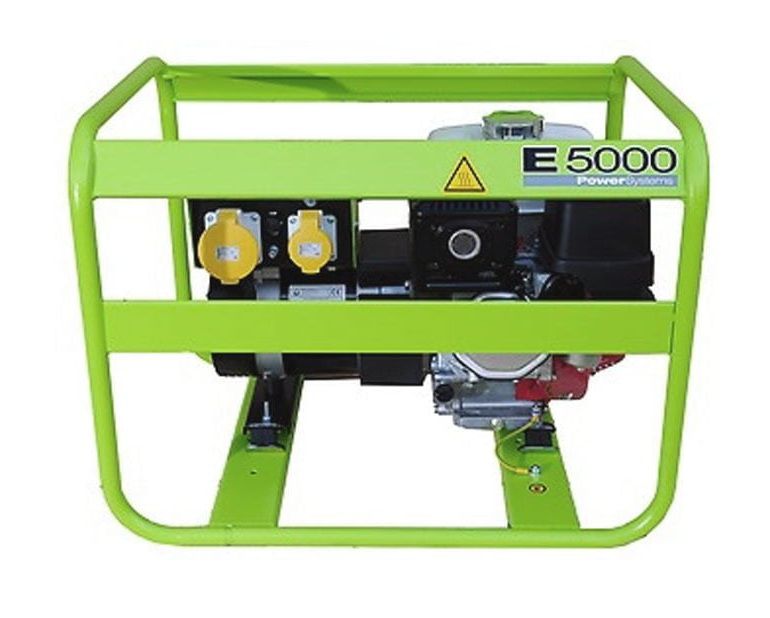

Pramac E5000 Portable Petrol Generator 230V/115V 5.1kva - E5000-230/115

Pramac E5000 Portable Petrol Generator 230V/115V 5.1kva

ref: E5000-230/115 / PA432SH1005

• Pramac E5000: With its high performances and easy maintenance, this professional generator is essential to all your activities.

This generator meets your professional needs perfectly. It is light, easy to transport, strong and powerful. Includes:

• Robust protective tubular frame (roll bar).
• Professional GX Honda engine.
• Accessible for inspection and maintenance.
• Easy to transport.
• Start plug and work.

Control Panel:

• Selector switch: OFF – ON, Selector switch 115/230V
• Fuel Chock
• Protections: Thermal protection, Oil guard

Sockets:

• 1 x CEE 115V 16A IP44
• 1 x CEE 115V 32A IP44
• 2 x CEE 230V 16A IP44

Main Features

• Frequency Hz: 50
• Voltage V: 230/115
• Power factor cos ϕ: 0.9
• Phase: 1

Power Rating *

• Emergency Standby Power ESP kVA: 5.1
• Emergency Standby Power ESP kW: 4.6
• Continuous power COP kVA :4.2
• Continuous power COP kW: 3.9

Engine specifications

• Engine Brand: Honda
• Model: GX270 Recoil
• Engine cooling system: Air
• Displacement cm³: 270
• Aspiration: Natural
• Operating Speed-Nominal rpm: 3000
• Speed governor: Mechanical
• Fuel: Petrol
• Oil capacity l: 1.1
• Starting system: Recoil

Alternator Specifications

• Class: H
• IP protection: 23
• Poles: 2
• Frequency Hz: 50
• Voltage regulation system: Capacitor

Dimensional data

• Length (L) mm: 715
• Width (W) mm: 550
• Height (H) mm: 545
• Dry weight kg: 61
• Fuel tank capacity l: 5.3

Autonomy

• Fuel consumption at 75% of Load l/h: 1.64
• Fuel consumption at 100% of Load l/h: 2.19
• Running time at 75% of load h: 3.23
• Running time at 100% of load h: 2.42

Noise level

• Guaranteed noise level (LWA) dB(A): 97
• Noise pressure level @ 7 m dB(A): 69

* Ratings definition (ISO-8528)

• ESP - Emergency Standby Power: It is the maximum power available during a variable electrical power sequence, under the stated operating conditions, for which a generating set is capable of delivering in the event of a utility power outage or under test conditions for up to 200 h of operation per year with the maintenance intervals and procedures being carried out as prescribed by the manufacturers. The permissible average power output over 24 h of operation shall not exceed 70 % of the ESP.
• COP - Continuos Power: It is defined as being the maximum power which a generating set is capable of delivering continuously for an unlimited number of hours, with the maintenance intervals and procedure being carried out as prescribed by the manufacturers.
