Pramac E4000 Portable Petrol Generator 115V 3.4kva - E4000-115

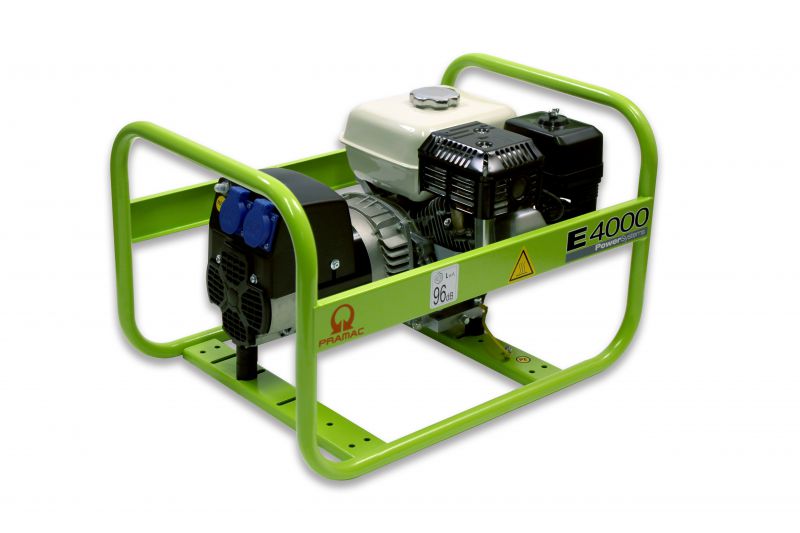

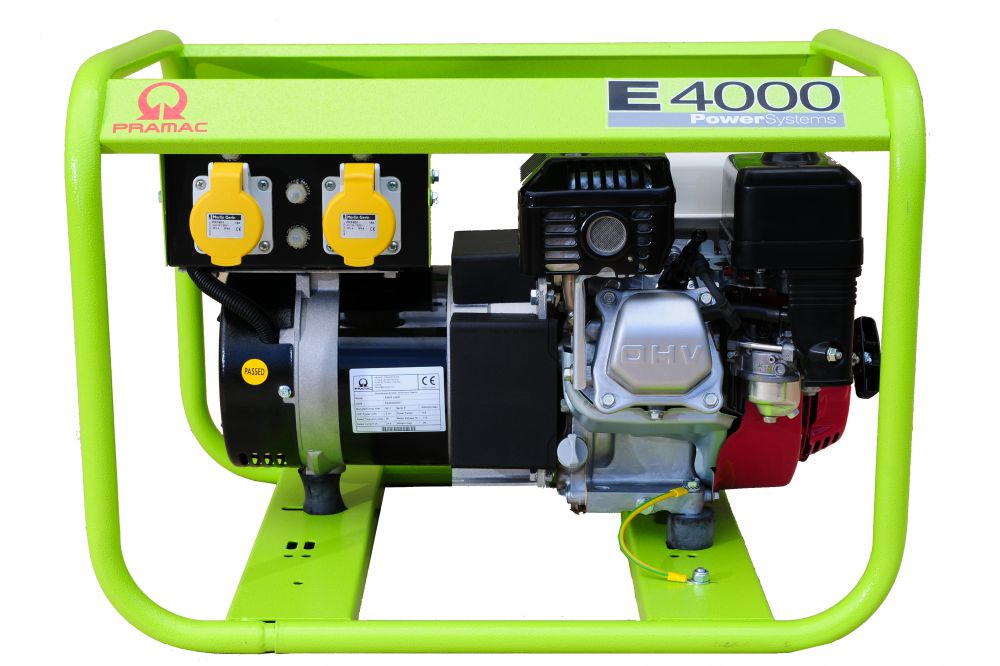

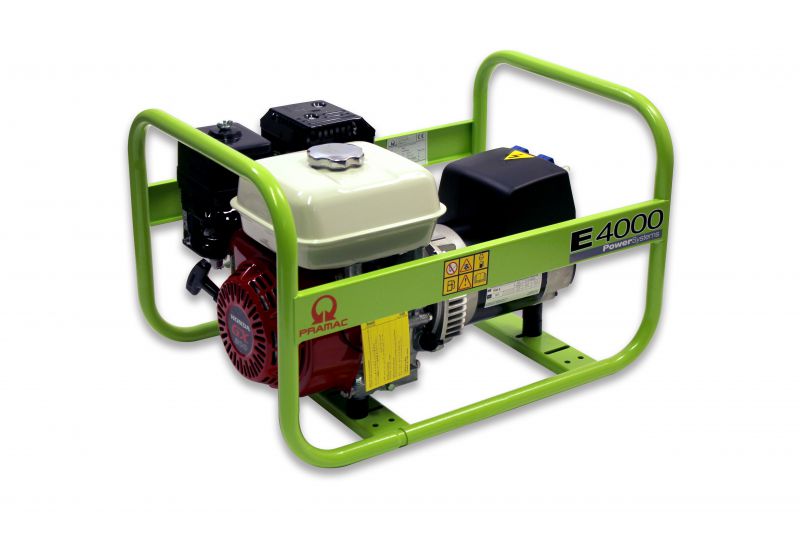

Pramac E4000 Portable Petrol Generator 115V 3.4kva

ref: E4000-115 / PA352GH1001

• Pramac E4000: A strong, powerful and professional generator that is easy to use and maintain.

A light but powerful generator which is easy to configure and ideal for your professional needs. Includes:

• Robust protective tubular frame (roll bar).
• Professional GX Honda engine.
• Accessible for inspection and maintenance.
• Easy to transport.
• Start plug and work.

Control Panel:

• Selector switch: OFF – ON
• Fuel Chock
• Protections: Thermal protection, Oil guard

Sockets:

• 4 x CEE 115V 16A IP44

Main Features

• Frequency Hz: 50
• Voltage V: 115
• Power factor cos ϕ: 0.9
• Phase: 1

Power Rating *

• Emergency Standby Power ESP kVA: 3.4
• Emergency Standby Power ESP kW: 3.1
• Continuous power COP kVA :2.9
• Continuous power COP kW: 2.6

Engine specifications

• Engine Brand: Honda
• Model: GX200
• Engine cooling system: Air
• Displacement cm³: 196
• Aspiration: Natural
• Operating Speed-Nominal rpm: 3000
• Speed governor: Mechanical
• Fuel: Petrol
• Oil capacity l: 0.6
• Starting system: Recoil

Alternator Specifications

• Class: H
• IP protection: 23
• Poles: 2
• Frequency Hz: 50
• Voltage regulation system: Capacitor

Dimensional data

• Length (L) mm: 625
• Width (W) mm: 455
• Height (H) mm: 455
• Dry weight kg: 36
• Fuel tank capacity l: 3.1

Autonomy

• Fuel consumption at 75% of Load l/h: 1.17
• Fuel consumption at 100% of Load l/h: 1.57
• Running time at 75% of load h: 2.65
• Running time at 100% of load h: 1.97

Noise level

• Guaranteed noise level (LWA) dB(A): 96
• Noise pressure level @ 7 m dB(A): 68

* Ratings definition (ISO-8528)

• ESP - Emergency Standby Power: It is the maximum power available during a variable electrical power sequence, under the stated operating conditions, for which a generating set is capable of delivering in the event of a utility power outage or under test conditions for up to 200 h of operation per year with the maintenance intervals and procedures being carried out as prescribed by the manufacturers. The permissible average power output over 24 h of operation shall not exceed 70 % of the ESP.
• COP - Continuos Power: It is defined as being the maximum power which a generating set is capable of delivering continuously for an unlimited number of hours, with the maintenance intervals and procedure being carried out as prescribed by the manufacturers.
