PROXXON FF 250/BL Micro Mill 230v

X
Product Code: BRI/109490
Brand: Proxxon
Available to Order
Delivery Times Vary - Please Call
£1,058.38 Inc. VAT
£881.98 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Proxxon

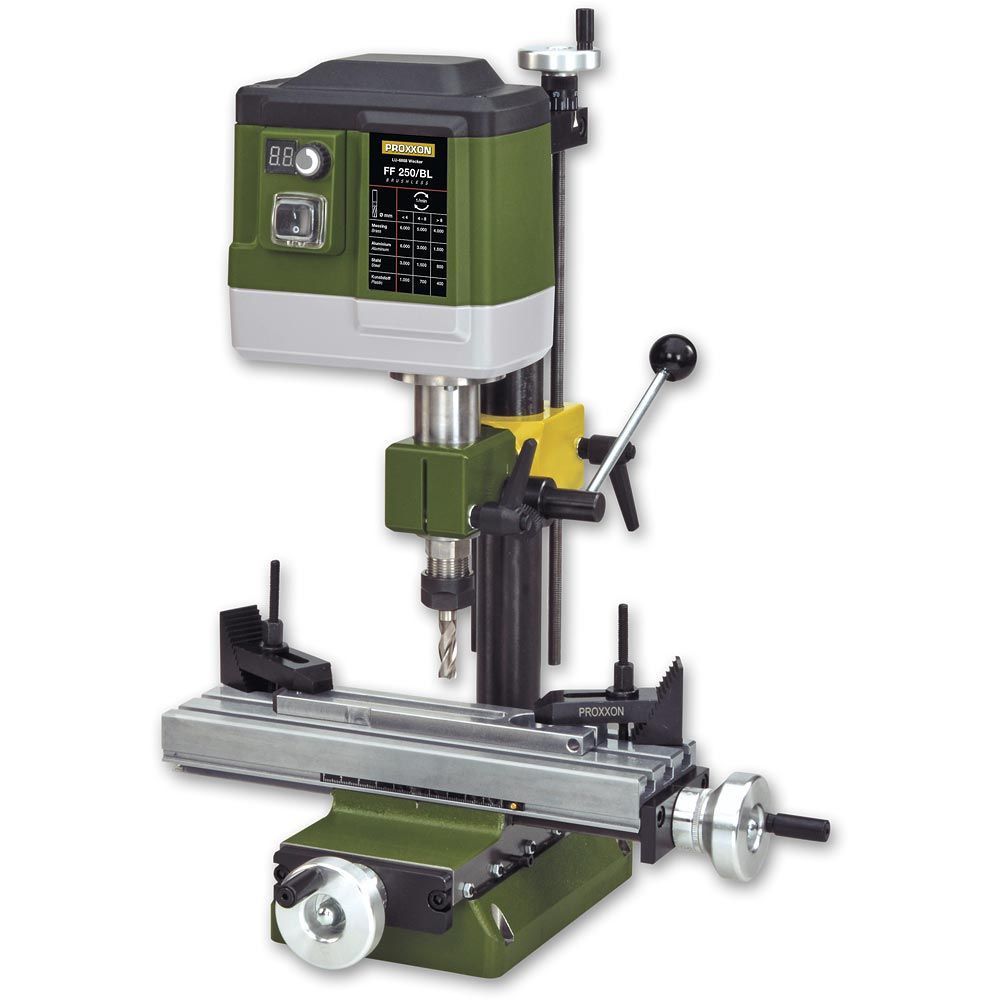

PROXXON FF 250/BL Micro Mill 230v

ref: 109490



Key Features

  • The FF 250/BL is a stand alone mill/drill, and a high quality addition to the PROXXON Micromot range of engineering machines. The FF 250/BL features variable speed pre-selection from 400 - 6.000rpm with digital speed display. Speed sensors guarantee high torque also in the lower speed range. A rotational speed chart on the front of the housing shows the appropriate spindle speeds for the most common applications. The headstock swivels through 360°, and tilts 90° left and right. The mill/drill’s table offers X-Y travel, longitudinally and cross-wise respectively of 110 x 70mm, with 3 T-slots. The tool holder uses ER 16 collets.
  • The FF 250/BL is supplied with 6mm, 8mm and 10mm collets.
  • Variable speed pre-selection from 400 - 6.000rpm
  • Solid plane-milled steel compound table with 3 T-slots
  • Digital speed indication
  • Tool holder uses ER 16 (DIN ISO 15488) collets
  • Supplied with 6mm, 8mm and 10mm collets



Technical details

  • Diameter of Column: 35 mm
  • End Milling Capacity: 10 mm
  • Face Milling Capacity: 10 mm
  • Head Tilt: 90° - 0° - 90°
  • Lateral Table Movement: 170 mm
  • Longitudinal Table Movement: 65 mm
  • Max Drilling Mild Steel: 10 mm
  • Nett Weight: 17 kg
  • Nose of Spindle to Table [Max]: 200 mm
  • Overall L x W x H: 180 mm x 130 mm x 500 mm
  • Plug Fitted: UK 3 pin plug
  • Power: 250 W
  • Rating: Home/Light Trade
  • Spindle Speed: 400 - 6,000 rpm (Var)
  • Spindle Taper: ER16 Collet
  • Spindle Travel: 30 mm
  • T Slot Size: 12 mm x 8 mm
  • Table Size: 270 mm x 80 mm
  • Throat: 65 mm
  • Voltage: 230 V
