PROXXON 717492 FBS240E DRILL GRINDER PACKAGE

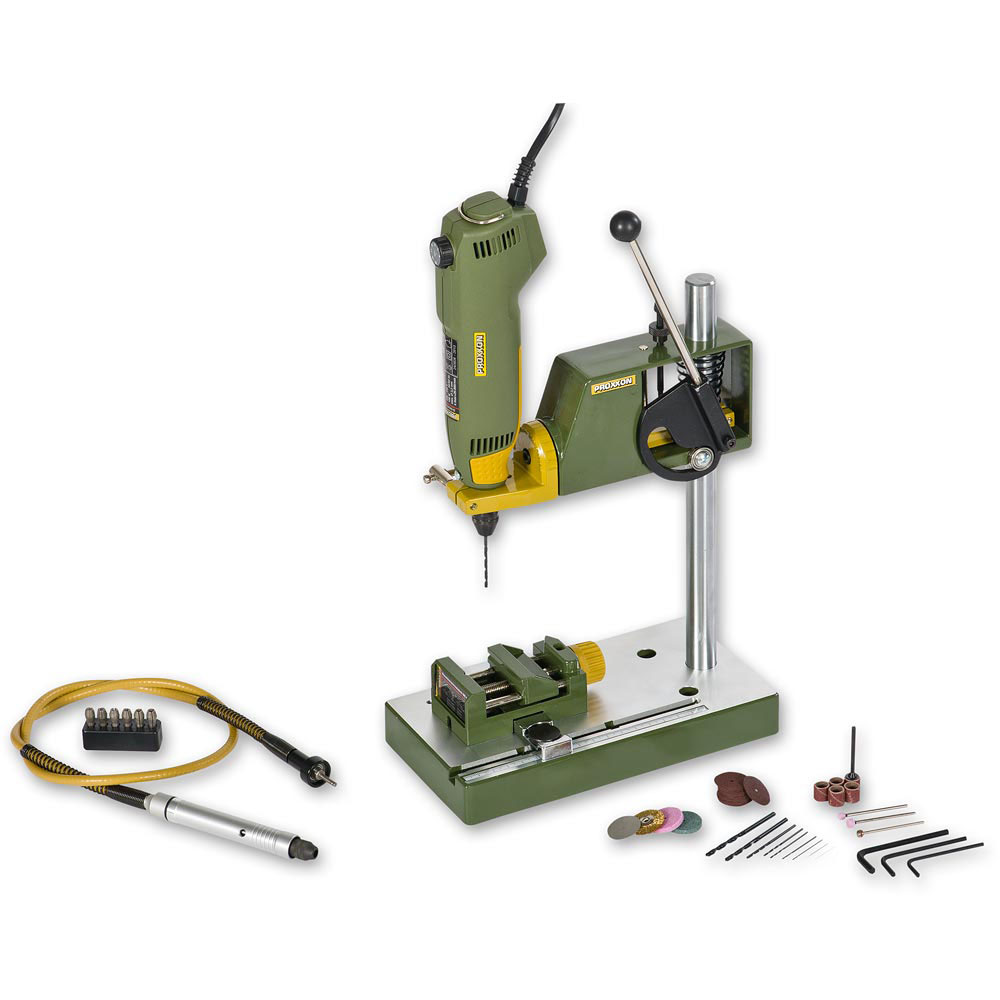

Proxxon FBS240/E Multi-Tool, Flexi-Shaft, Stand & Vice - PACKAGE DEAL

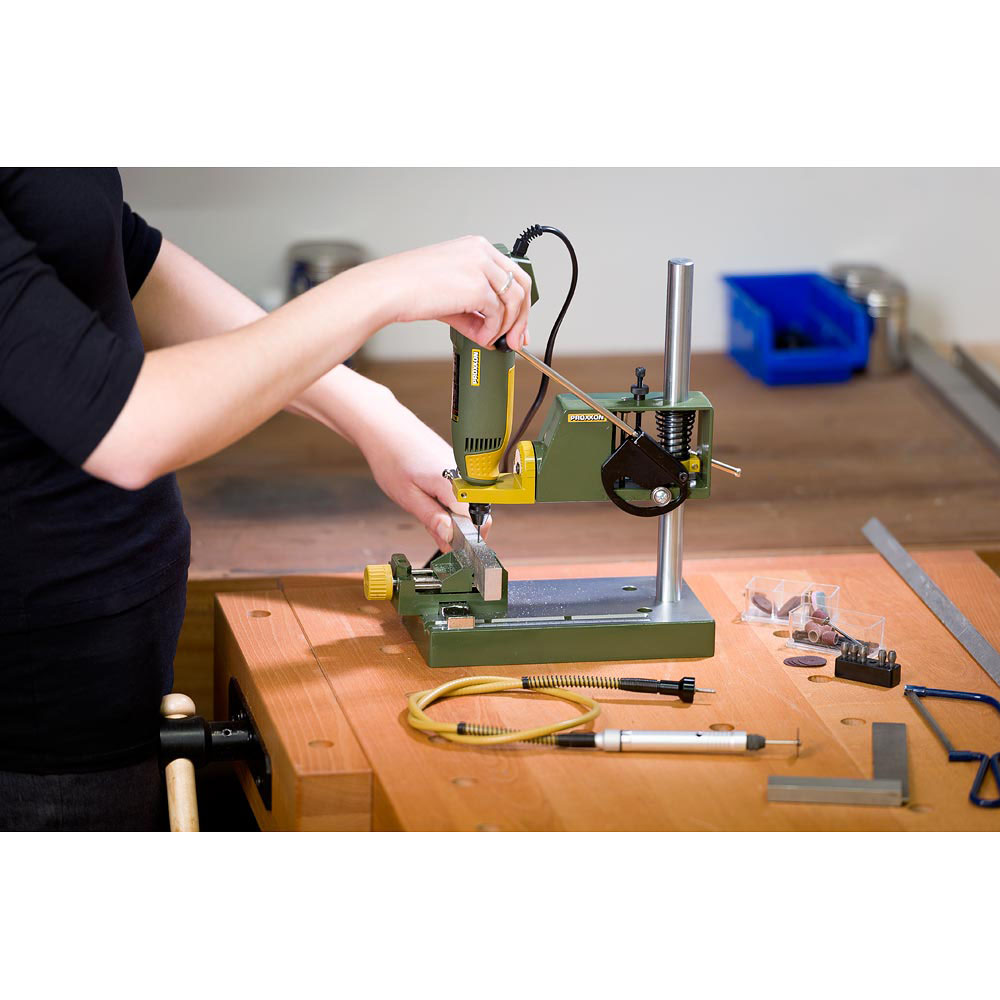

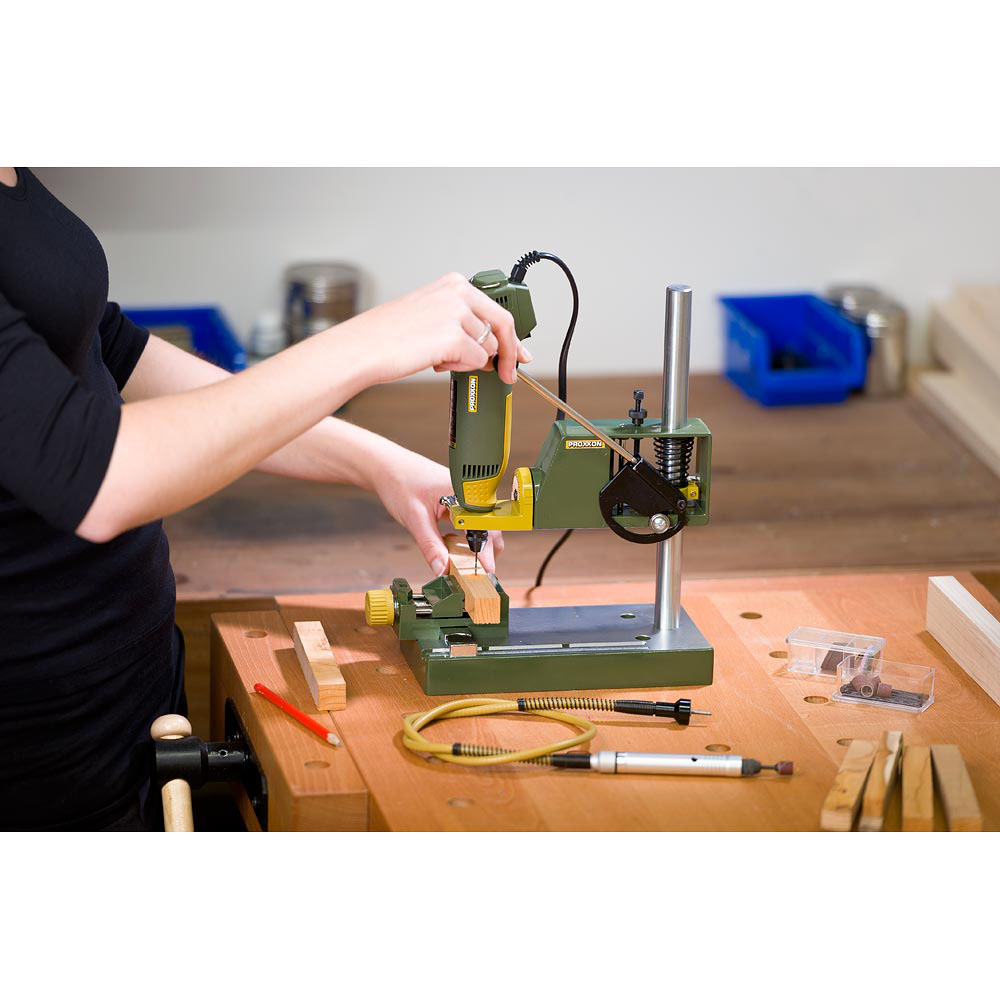

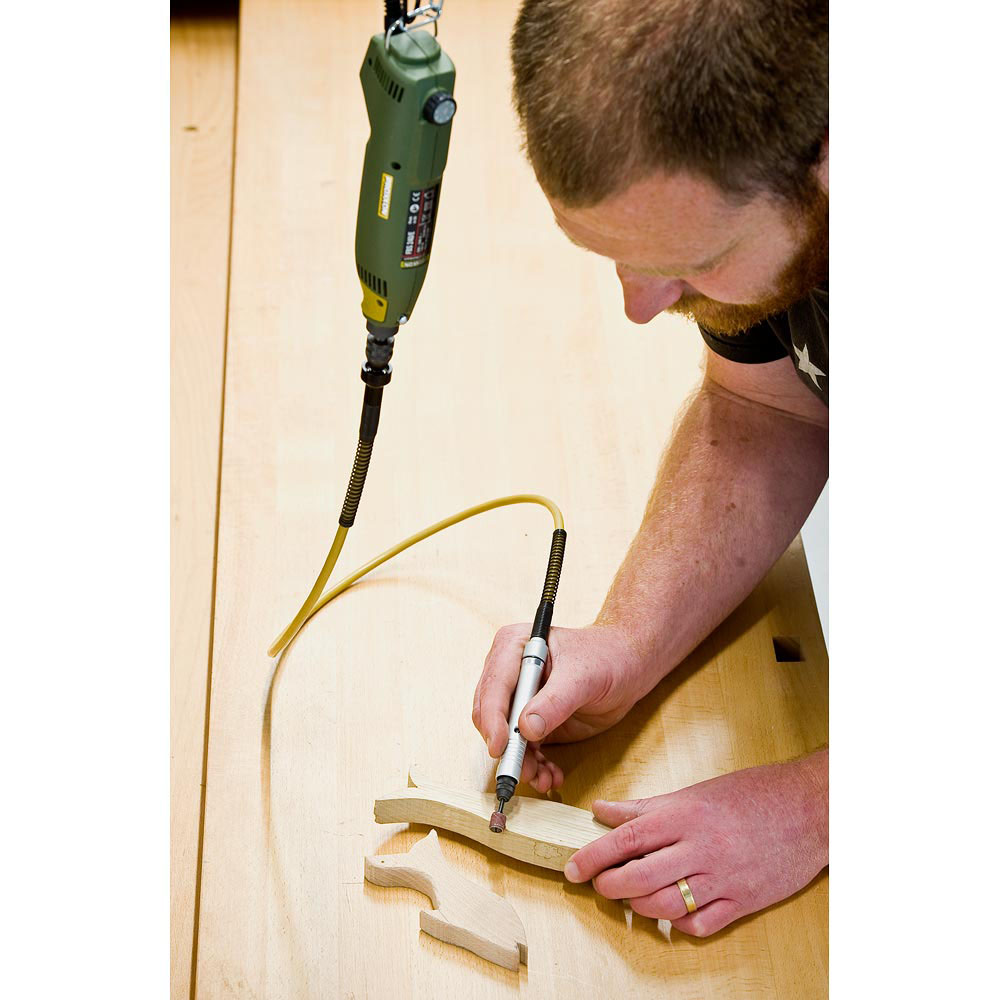

Package deal comprises theProxxon FBS 240/E Precision Drill/Grinder Multi-Tool,Proxxon 110/P Flexi-Shaft,Proxxon MICROMOT MB 140/S Drill Stand and theProxxon MS 4 Machine Vice. Proxxon FBS 240/E Precision Drill/Grinder Multi-Tool This 100W multi-tool has a keyless chuck (0.3-3.2mm) to accept a wide range of accessories, well balanced and with variable speed for maximum control. The tool is well designed and the two inset rubber grips on the body ensure a good purchase, important for fine detail work. The permanent magnet motor is powerful and well balanced and the variable speed control gives a range of 5,000 to 20,000rpm. At the opposite end to the drill chuck is a hanging loop, used when the tool is coupled up to a flexible shaft. This tool has a quality specification, a flexible drive shaft with precision handpiece and 1.0mm, 2.4mm and 3.0mm collets is also available as an optional extra. Supplied in a plastic storage case with 43 cutting, grinding, drilling and sanding accessories. Proxxon 110/P Flexi-Shaft A truly flexible shaft some 1 metre long. The precision aluminium hand piece features a milled steel shaft and dual ball-bearings. The highly-flexible core ensures no overheating even when working tight radii. Length 1,000mm, maximum speed 25,000rpm. Fitted with a delicate hand piece complete with six steel collets (1.0 - 1.5 - 2.0 - 2.4 - 3.0 and 3.2mm) for accurate holding of rotary tools and collet nut. Suitable for use with any of theProxxon range of tools or indeed any type of power source that can grip the 3mm male shaft of the unit. Proxxon MICROMOT MB 140/S Drill Stand The 120 x 220mm milled table is fitted with a fence and a scale. The solid column is chrome plated and the headstock is of die-cast aluminium, offering a throat capacity of 140mm and 30mm travel. A chromed feed lever operates via a drive disc and ball-bearing system, offering a sensitive feed set-up. T-bars allow simple height adjustment as well as the fixing of the mill drill in the 20mm bore fitting. The mill drill collar, with scale, tilts through 90° in both directions. The drill stand features a depth stop as well as drilled, tapped holes for securing the KT 70 Compound Table. The MS 4 Machine Vice can also be fitted, it is made of die-cast zinc with three machined sides and horizontal and vertical V-slots in the jaws. Jaw width 50mm and height 10mm. Maximum clamping width 34mm. Proxxon MS 4 Machine Vice The MS 4 Machine Vice is made of die-cast zinc with three machined sides and horizontal & vertical V-slots in the jaws. Jaw width 50mm and height 10mm. Maximum clamping width 34mm.

Proxxon FBS 240/E Precision Drill/Grinder Multi-Tool

Multiple uses; cuts, sands, polishes and grinds, etc.

0.3-3.2mm keyless chuck

Variable speed

2 inset rubber body grips

Permanent magnet motor

Maximum motor power 100W

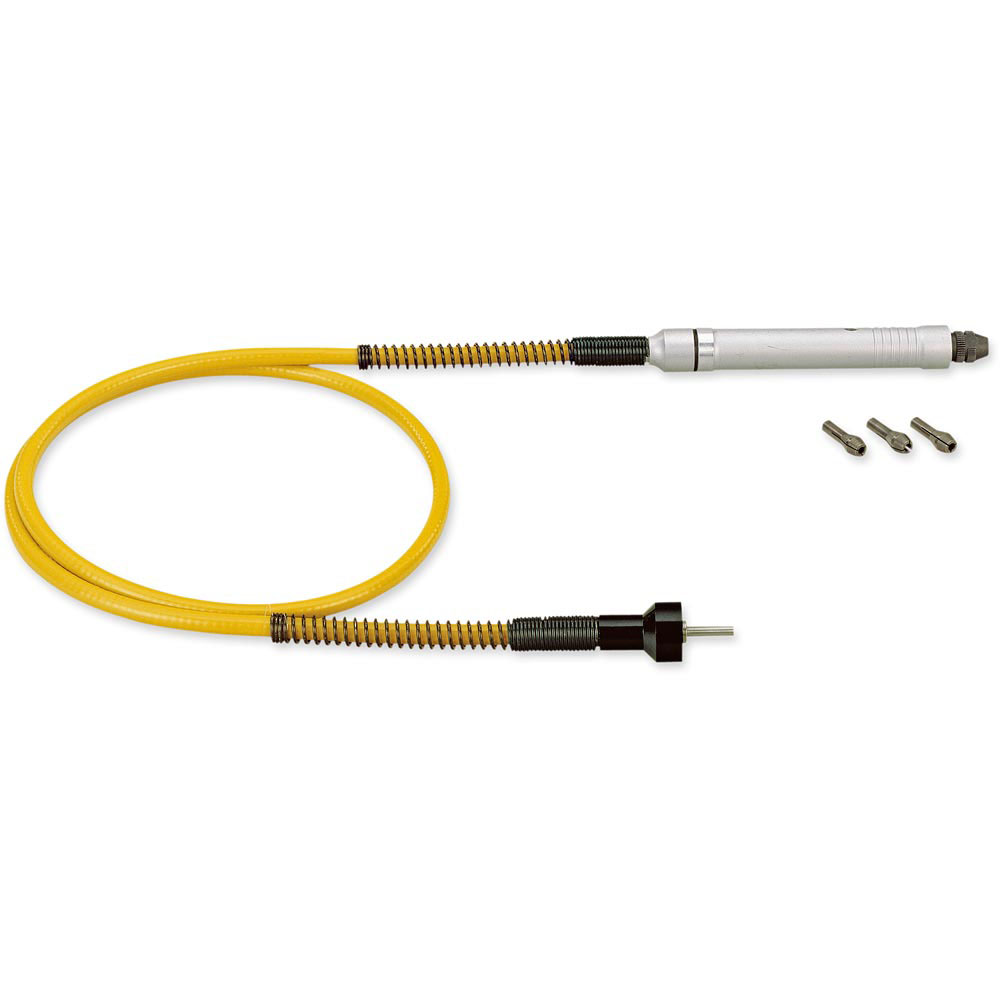

Supplied in a plastic storage case with 43 cutting, grinding, drilling and sanding accessories Proxxon 110/P Flexi-Shaft

1,000mm flexible shaft

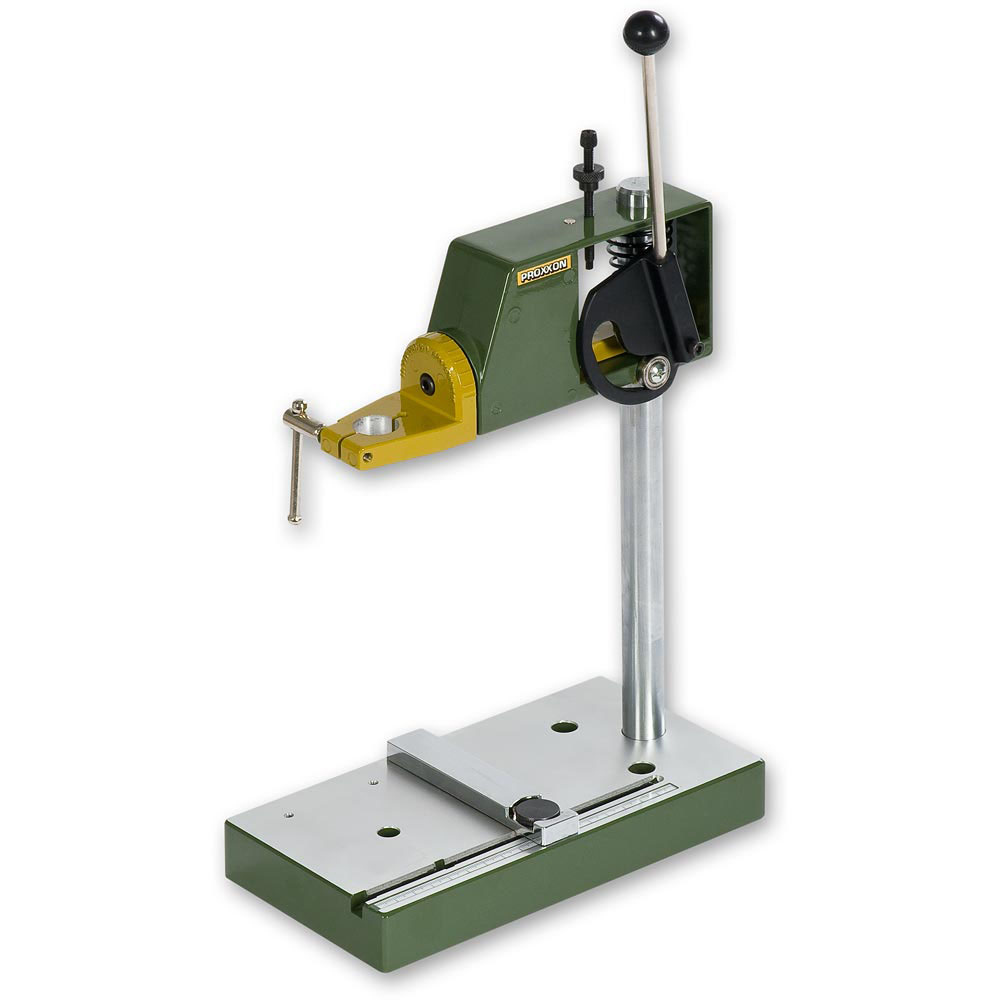

Six steel collets - 1mm to 3.2mm Proxxon MICROMOT MB 140/S Drill Stand

120 x 220mm table fitted with fence and scale

Solid column is chrome plated

Throat capacity of 140mm & 30mm travel

Collar with 20mm bore for fixing tools

Tilts through 90° in both directions

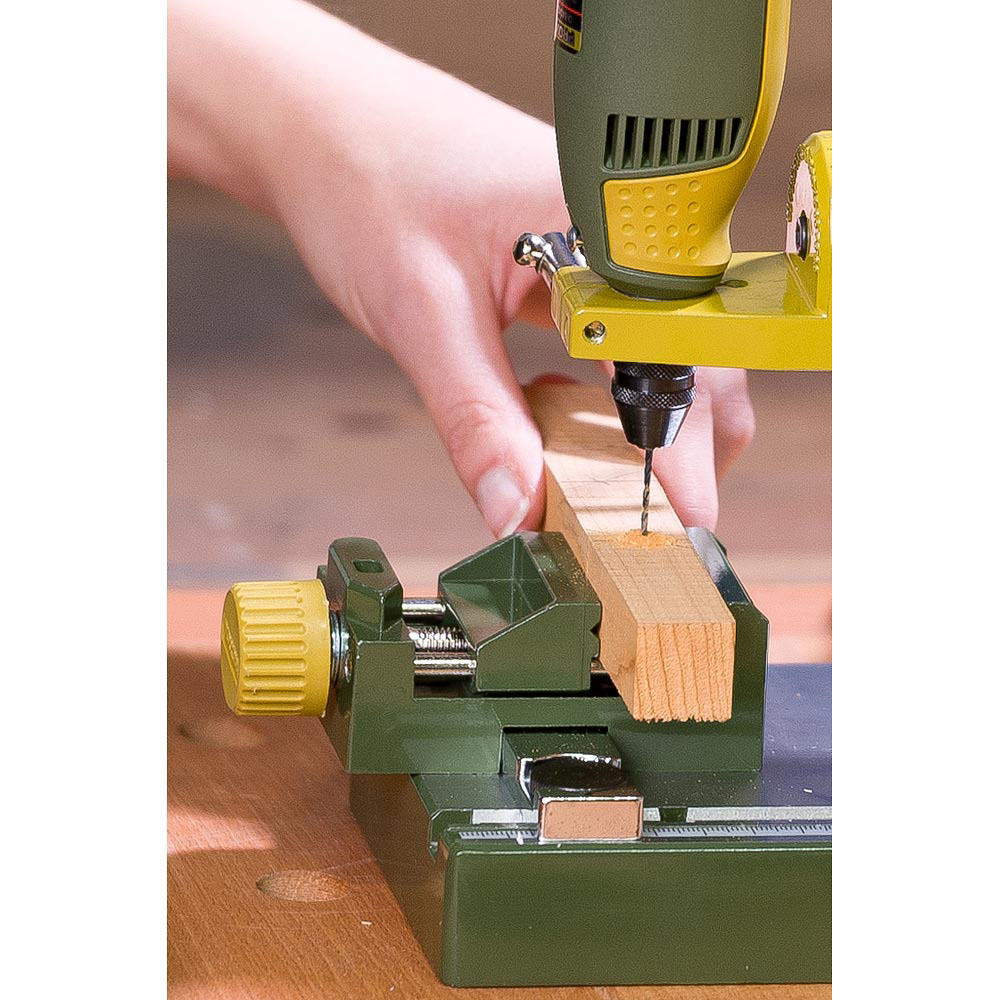

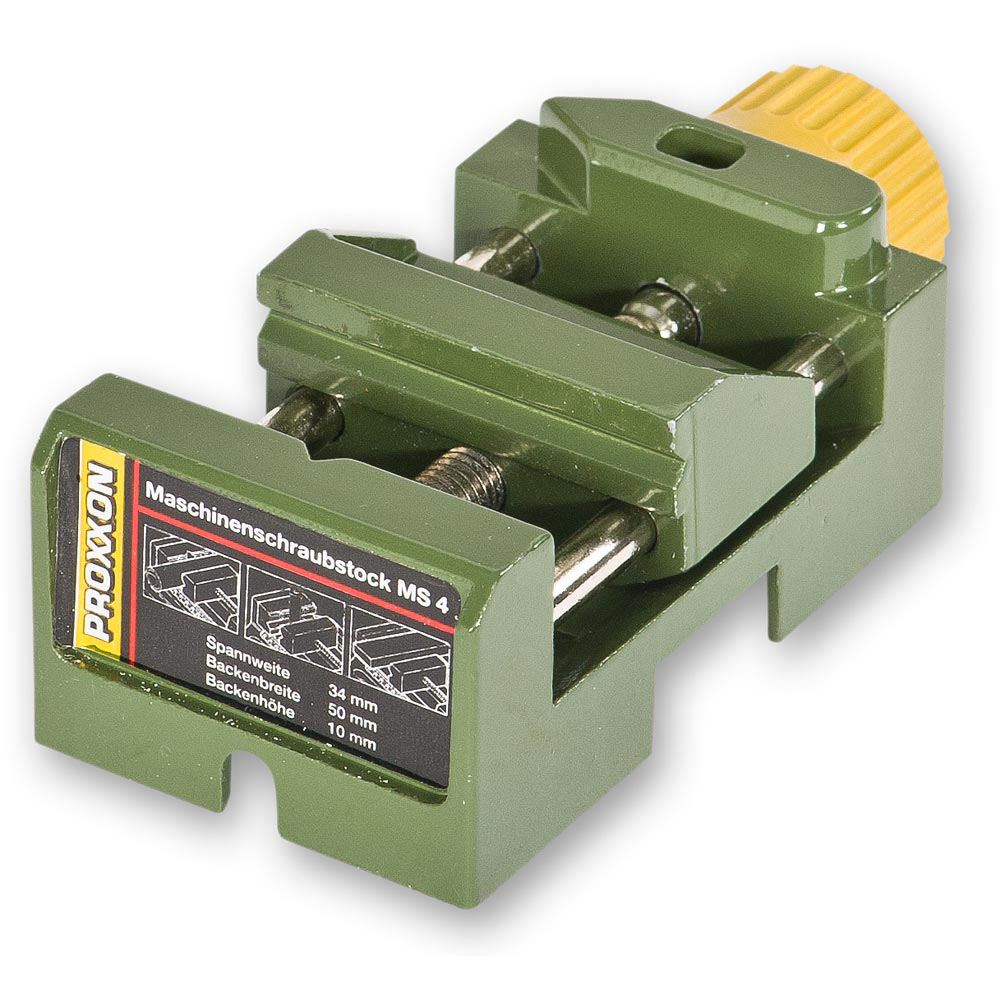

Depth stop Proxxon MS 4 Machine Vice

Die-cast zinc with three machined sides

Slot fits the adjustable fence of the drill stand MB 140/S & bench drill TBM 220

Horizontal & vertical V-slots in jaw

Jaw width 50 mm & height 10mm

Maximum clamping width 34mm
