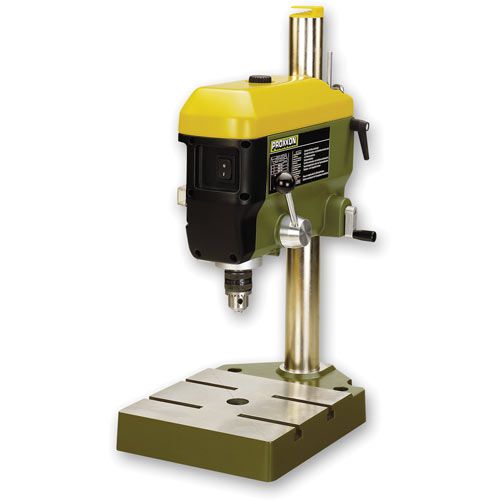

PROXXON 28124 TBH DRILL PRESS *240V*

Proxxon TBH Bench Drill Press - 230V


• Height adjustment easily altered with headstock lock lever
• Table features ribbed base and milled work area with T-slots
• Permanent magnet motor
• Max drill bit size 10mm
• Three speeds 1,080, 2,400 & 4,500rpm

• The table and arm of theProxxon TBH drilling machine are made of die-cast aluminium. A refined, rust-proof and statically very solid material. Fittings and feeds are machined on CNC controlled machines (milled, line-bored, lathed, etc.). Practical height adjustment via toothed rack with easy to operate crank. The table features a ribbed base and milled work area with T-slots. The column is bright nickel-plated. Powerful, long life 230V permanent magnet motor. The quill is driven via a belt and three step pulleys. This yields a torque multiplication of as much as 6x at the lowest speed. Geared quill feed for exact operations runs in ball bearings. Spindle with 1/2"' thread accepts the industrial standard ROHM chuck.

• Base Size: 200 mm x 200 mm
• Chuck Travel: 63 mm
• Diameter of Column: 45 mm
• Max Chuck to Base: 70 mm
• Model: TBH
• Nett Weight: 10 kg
• Speed Range: 1,080, 2,400 & 4,500 rpm
• Table Size: 200 mm x 200 mm
• Voltage: 230 V
