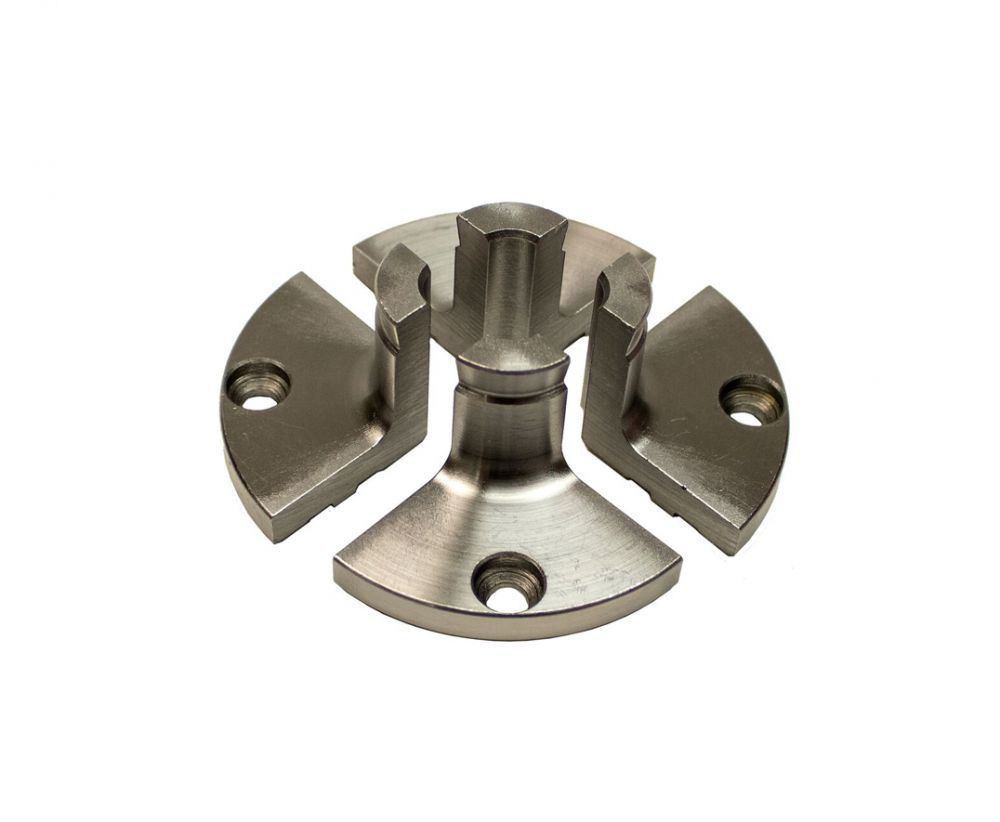

Nova JSPIN 25mm / 1" Pin Chuck Jaw Set for Woodturning Scroll Chuck

NOVA JSPIN - 25mm / 1" Pin Chuck Jaw Set
Woodturning Scroll Chuck Jaws
Ref: JSPIN

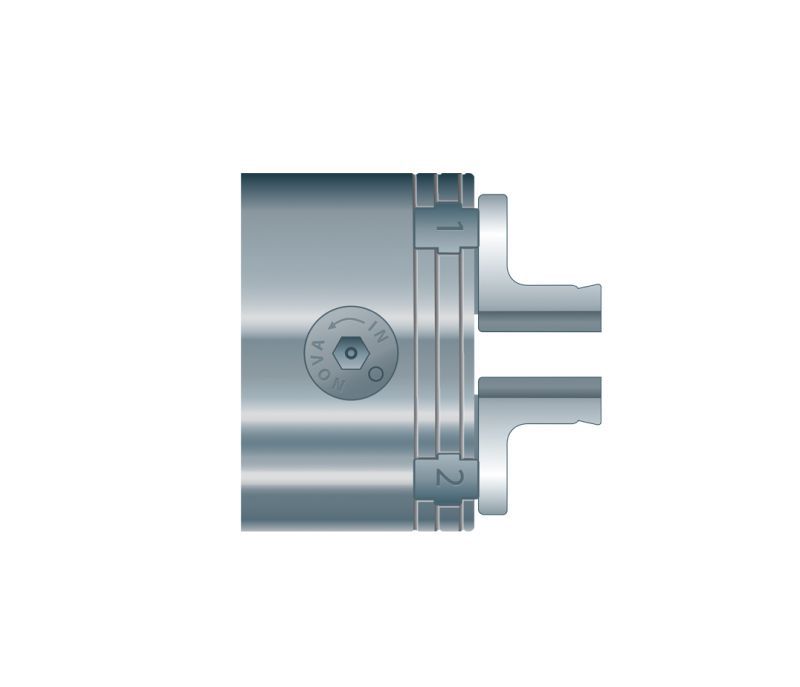

JAWS ONLY - chuck shown for illustration

• Useful jaw when turning free form edge bowls
• 25mm extended jaws act like a pin chuck expanding into a pre-bored hole
• Longer stand-out of the jaws allow for a very powerful spigot grip
• Expands into a recess between 26mm and 46mm diameter
• Spigot range from 10mm to 31mm diameter
• Square timber between 7mm and 38mm

The JSPIN Pin Chuck Jaw Set is a special 25mm extended jaw that acts like a pin chuck by expanding into a pre-bored hole. This is a useful jaw when turning free form edge bowls. The jaw will lock into a simple bored hole; the advantage over a standard pin chuck is that you don't have to bore to an exact size. Simply expanding the jaw means turning can commence without further delay. The longer stand-out of the jaws allows for a very powerful spigot grip for smaller work such as lace bobbins and delicate pots etc. The jaws also have a dovetail to mount small bowls (up to 150mm diameter). The jaw expands into a recess between 26mm and 46mm diameter. When gripping a spigot the range is 10mm to 31mm diameter. These jaws will also hold square stock between 7mm and 38mm.

Suits SuperNova2, Nova G3 chucks and Robert Sorby Patriot Woodturning Scroll Chucks

If you are unsure if these jaws fit your chuck please contact us and we will be happy to help

THESE WILL NOT FIT ANY OF THE AXMINSTER RANGE OF CHUCKS

• Expands Internal - 26 to 46 mm
• Expands External - 10 to 31 mm
• Square Section - 7 to 28 mm
• Jaw Type JSPIN
• WARRANTY: 10 Year Full Replacement from Manufacture Defects
