Nova 6040 Cole Jaw Set Large 12"

NOVA 6040 - Cole Jaw Chuck Jaw Set
Woodturning Scroll Chuck Jaws
Ref - 6040

Image shows Nova 6040 Cole Jaws with Nova 6039 Cole Jaw Extensions fitted


• Versatile jaw set for NOVA chucks
• Designed for re-chucking of bowls
• Remove chuck marks, add decoration or re-shape the bottom of a bowl
• Maximum bowl diameter 305mm (12")
• For use on lathes with a minimum 355mm (14") swing

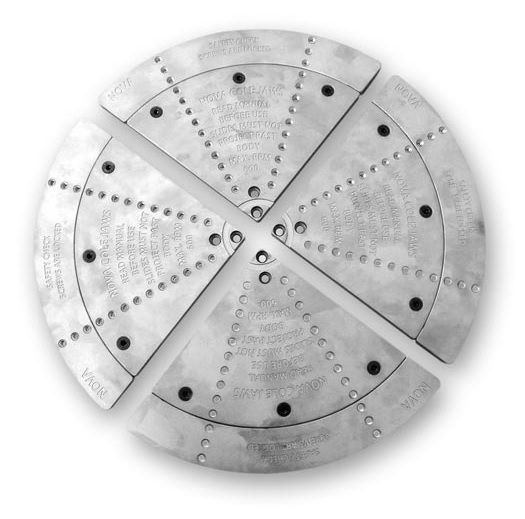

This accessory for NOVA chucks is a versatile jaw set designed for re-chucking a bowl, giving you a second opportunity at turning the outside of the bowl. It allows you to remove chuck marks, add decoration or to re-shape the bottoms of bowls. Once reversed, you can remove the original chuck recess to produce a bowl with no physical evidence of ever having been near a chuck. The NOVA 6040 Large Cole Jaw Set has the capacity to take a 305mm (12") diameter bowl. These jaws are only suitable for use on lathes with a minimum 355mm (14") swing. The jaws consist of four die-cast aluminium quadrants with rows of pre-set holes. The set includes fasteners to mount the jaws onto your NOVA chuck, eight standard rubber bumpers and instructions.

Suits both SuperNova2 and Robert Sorby Patriot chucks

If you are unsure if these jaws fit your chuck please contact us and we will be happy to help

Specifications:

• Max Lathe Swing Diameter - 355 mm
• Expands External Grip - 330 mm
• Expands Internal Grip - 265 mm
• Jaw Type 6040 Cole Jaw

WARRANTY: 10 Year Full Replacement from Manufacture Defects
