NOVA 1624 II Woodturning Lathe, Stand and Outrigger Package

X
Product Code: TUR/24224-PK2
Brand: NOVA Woodturning
Stock Due Soon
Please Call For Update
Was £1,324.99 Inc. VAT
Now £1,250.00!
£1,041.67 Exc. VAT
NOVA Woodturning

NOVA 1624 II Lathe - Woodturning Lathe and Leg Stand Package
Includes Outrigger for Bowl Turning
Ref: 24224-PK2



The NOVA 1624 II is an excellent entry level woodworking lathe that has enough versatility and power to give many years of turning. 8 speed range – features a low speed of 215 rpm essential for serious and safe large piece and bowl turning work. Steel and cast iron stand included as standard equipment. Full swivel head functionality and solid cast iron components complete the package. Available in 11/4" x 8TPI thread. Includes 1.5HP AC motor, belt, stand, 2MT live center, 2MT spur/drive center, 3" faceplate, 12" toolrest, manual and fastenings.



Key Features

  • Bowl turning capacity: 400mm/16″ onboard. 740mm/29″ outboard. (Using optional outrigger accessory)
  • Between centres: Standard 600mm/24″. Extendable to as long as you want in 510mm/20″ increments, using optional bed extension accessory.

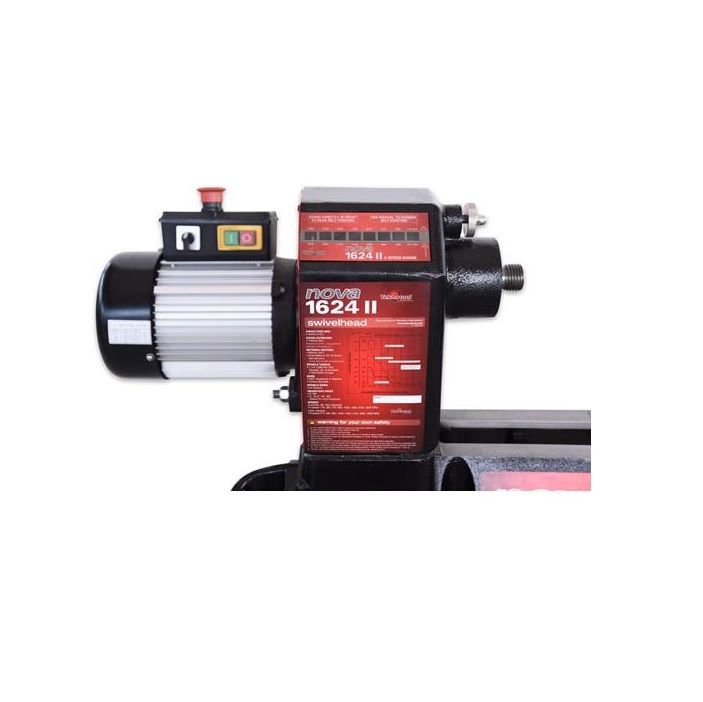

  • Powerful 1.5 HP Motor delivers continuous power. Provides 50% more power than comparable lathes on the market, to allow for much larger projects
  • Forward and Reverse motor function
  • Speed range 178 – 3,000 RPM.  Essential low speed when turning large pieces

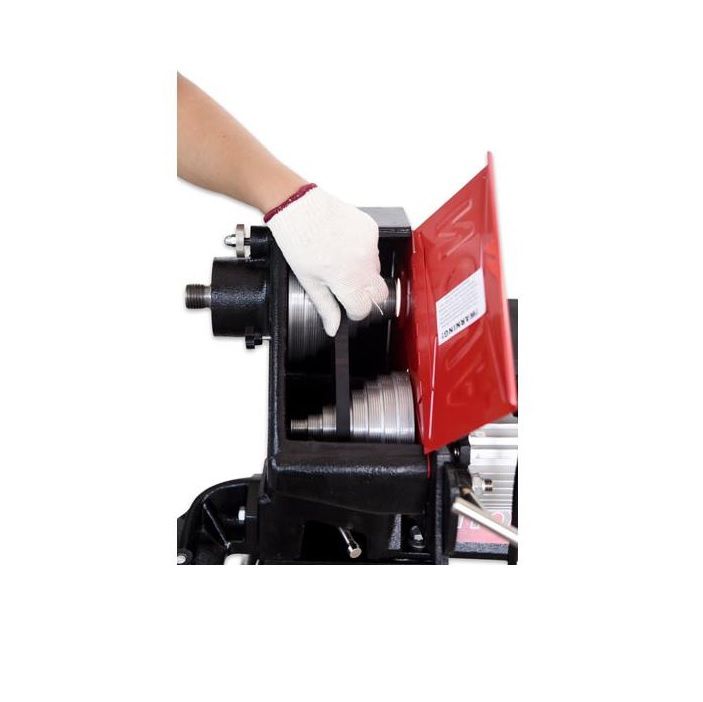

  • Belt drive – cam operated

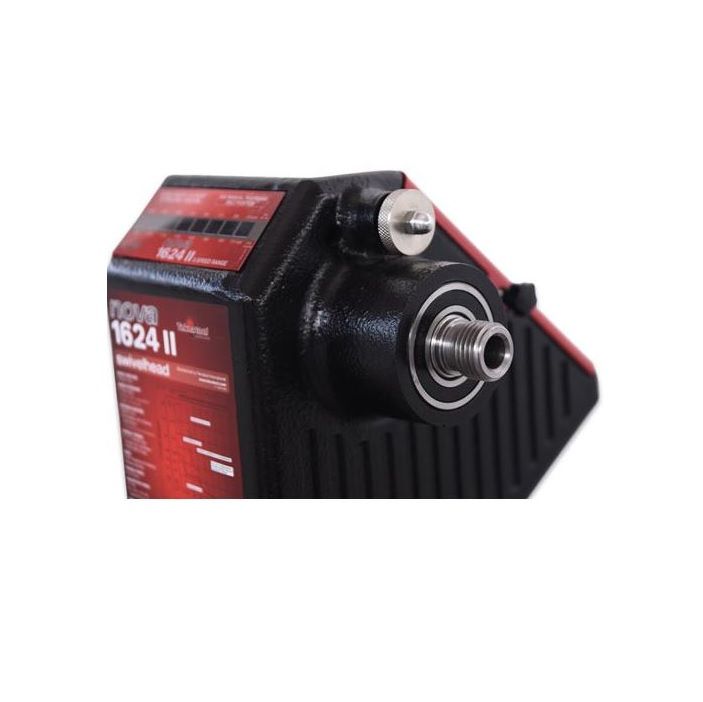

  • Spindle Thread: M33 x 3.5
  • Tailstock and headstock: 2MT Hollow

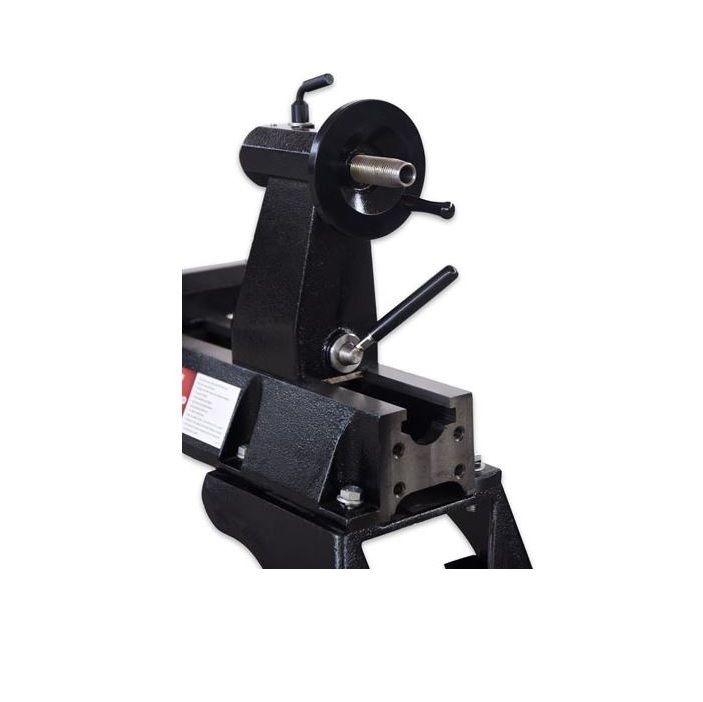

  • Cam action easy lock on Tailstock & Toolrest

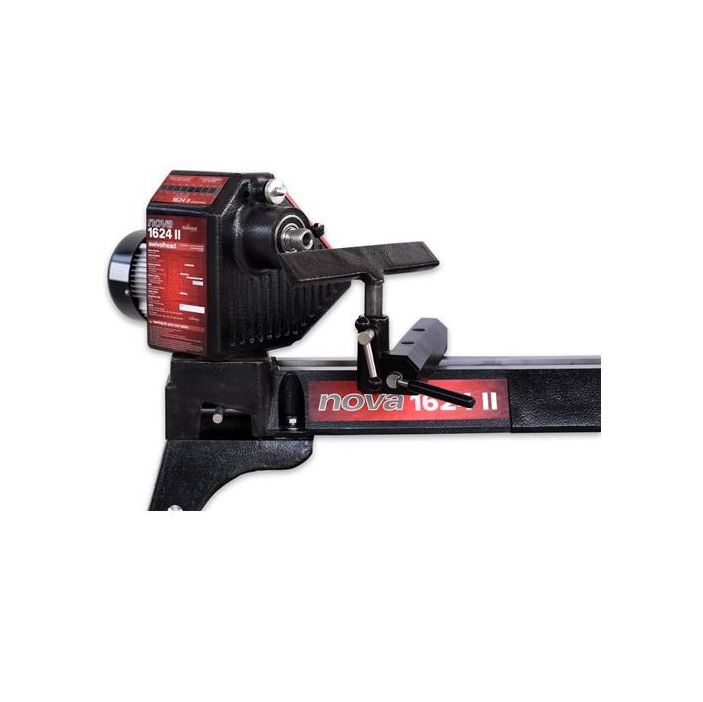

  • Swivel head: 360° swivel and lock at any position, plus detent locating positions at 0, 22.5, 45, 90 and 315 (for left-hand turners) degrees. High accuracy and easy swivel.
  • Indexing: 24 Division
  • Quality materials – Solid Cast Iron throughout for rock solid performance

Note: This unit replaces the older NOVA 1624 Lathe. All old accessories and parts are interchangeable.



Specification

  • Weight: 72 kg (158.7 lb) (without motor)
  • Swing Over Bed: 400 mm (16 in.)
  • Distance Between Centers: 600 mm (24 in.); expandable in 510 mm (20 in.) units with add-on Bed sections.

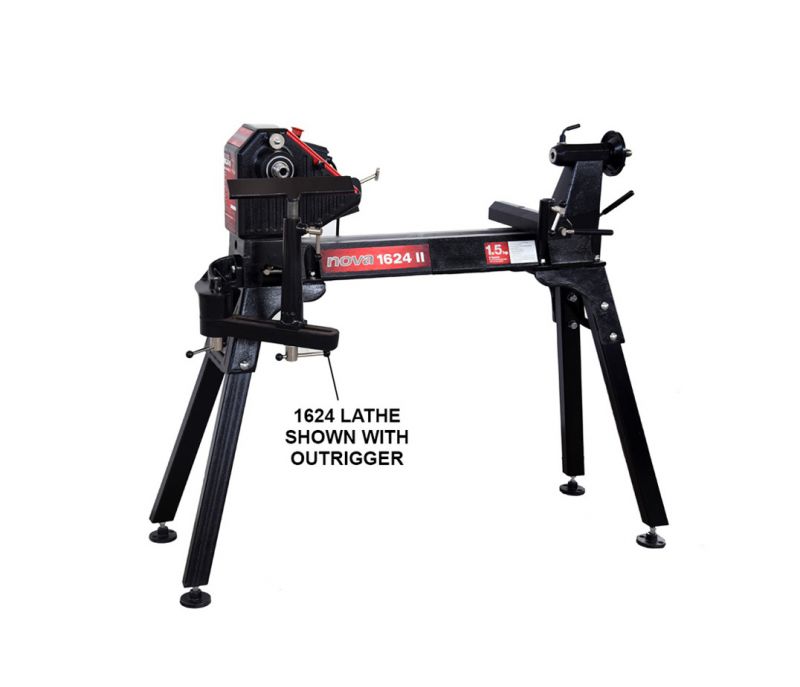

  • Swing Outboard: 740 mm (29 in.) with headstock at 90° with outrigger toolrest

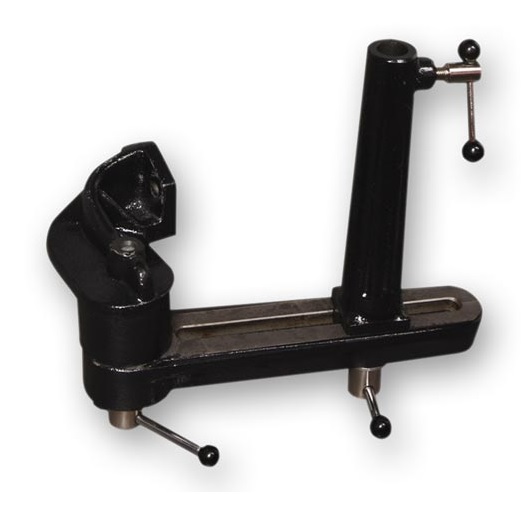

NOVA Outrigger for Nova Lathes
Ref: 55223

Outrigger Only - no bowl rest supplied



A well engineered accessory, the NOVA outrigger is an impressive hunk of precision machined cast iron. Coupled with the swivelling head feature of your lathe, it allows you to realise the full potential of turning items up to 735mm(29") diameter. The outrigger gives you rigid strength, stability and vibration-free performance. It provides rock steady chisel support for all larger turning. The articulating arm has three points of adjustment, making it very quick and easy to move into position to get the best support for your turning. The quick action gives positive locking, ready to go in less than 30 seconds. The Outrigger bolts to the end of the headstock bed casting without adding to the footprint of the lathe. Convenient, when not in use, the outrigger swings out of the way. You can use your existing tool rest or any alternative with a 25.4mm (1") shank.



Key Features

  • Allows work up to 735mm(29") in diameter
  • Offers rigid strength, stability, and vibration-free performance
  • Positive locking giving extra capacity within seconds
  • Space saving - does not add to lathe footprint
  • Weight 15kg(33lb)
  • Fits Nova lathes
Items Included
Click For Bigger Image

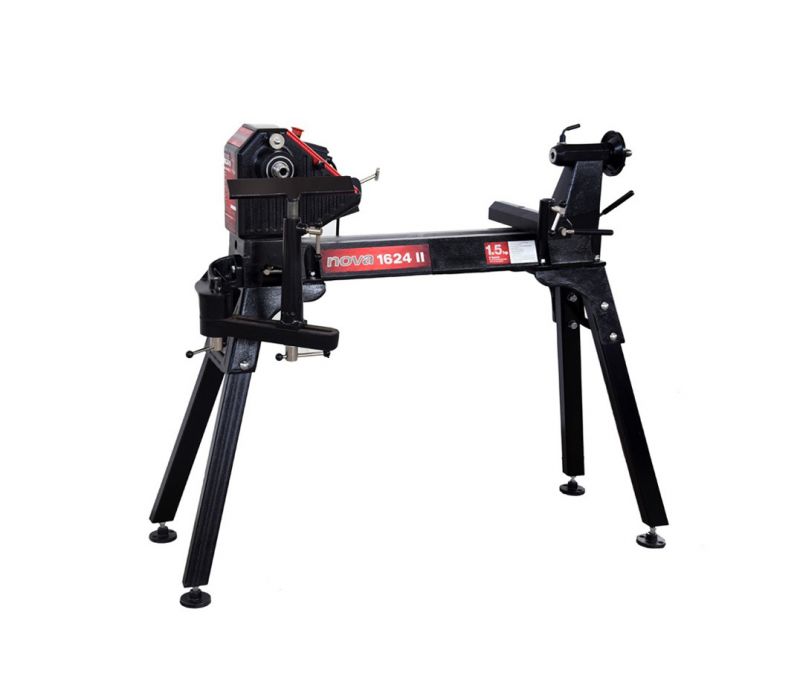

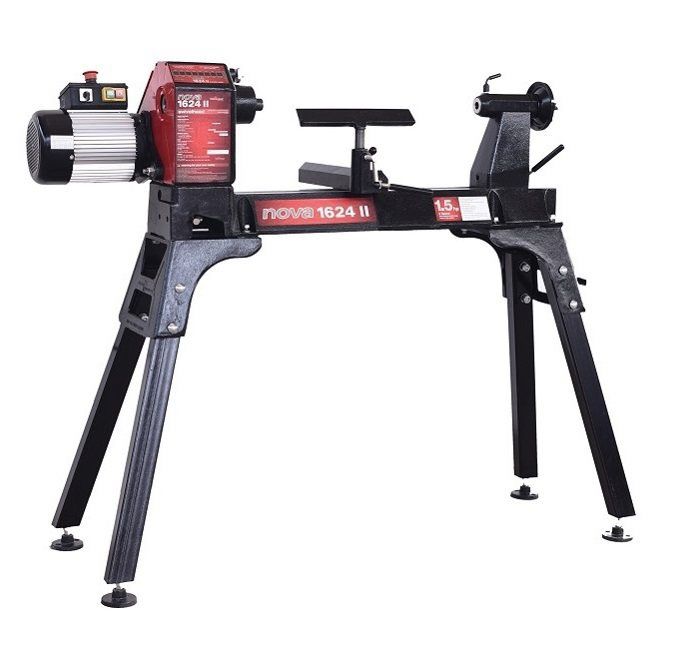

1 X NOVA 1624 II Woodturning Lathe with Leg Stand
Click For Bigger Image
1 X NOVA Outrigger for Nova Galaxi DVR, Nova Saturn XP and 1624 mk2 Lathes - Ref: 55223
