Mafell ZSX TWIN EC Carpenter's Chain Saw 240v, with Transport Trolley - 961601

X
Product Code: MAF/961601
Brand: Mafell
Stock Due Soon
Please Call For Update
£12,229.71 Inc. VAT
£10,191.43 Exc. VAT
Mafell

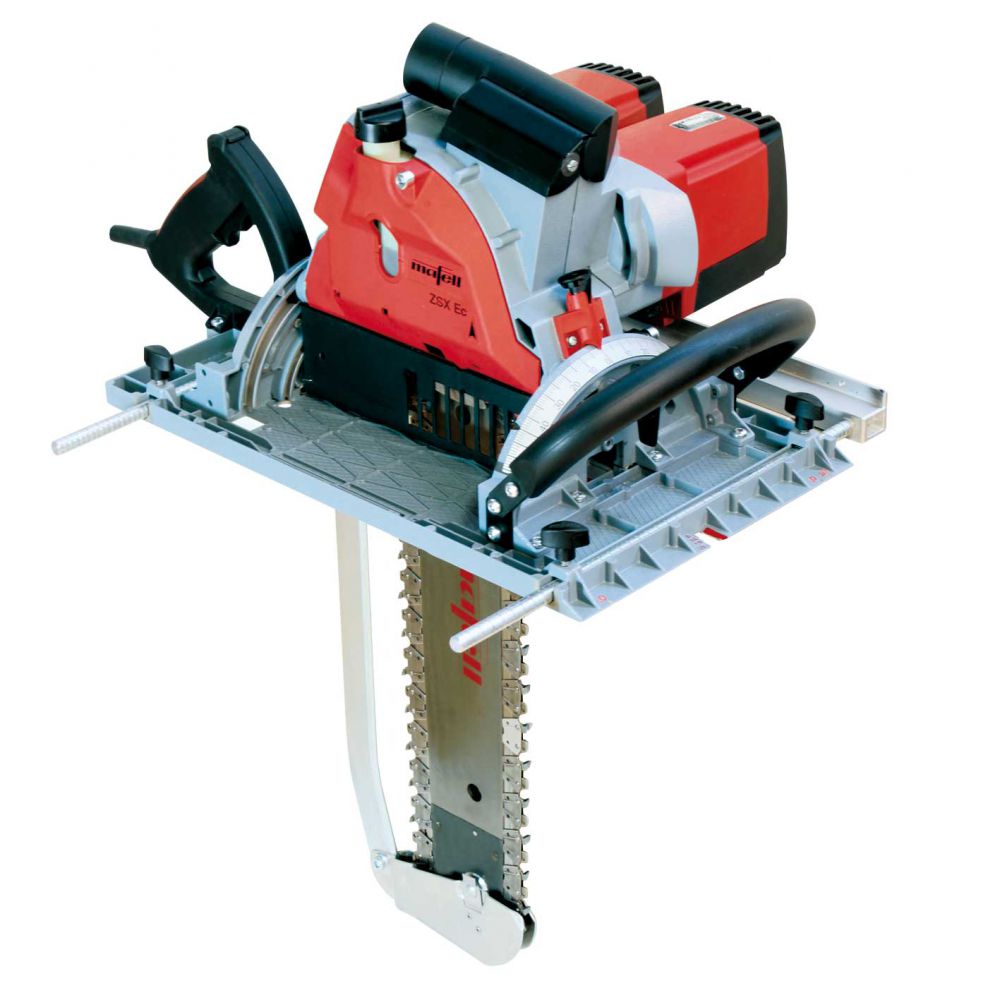

Mafell Carpenter's Chain Saw ZSX TWIN Ec - (Ref: 961601)



Key Features

  • The ZSX-TWIN Ec carpenter´s chain saw is a highly practical tool for large timbers.
  • By developing a machine with two motors, capable of producing very complex and otherwise laborious work easily and for a perfect fit, MAFELL has taken the chain saw to a new level.
  • With a nominal output of 3000 Watt, just one CUprex motor already tests the performance limits of the conventional 230 V power supply. Two CUprex motors running at the same time would bring a regular fused domestic power system to its knees. By dividing the load between two circuits, the twin-motor ZSX gets all the power it needs. A three-phase electric power system offers the ideal solution because the phases have separate fuses, so that the supply is not overloaded.



Strengths and benefits

  • Despite tremendous nominal output of 6000 Watt, the single-phase ZSX-TWIN Ec weighs just 20 kg (44.1 lbs). The low weight-to-power ratio allows the saw to cut as deep as 400 mm (15 3/4 in.).
  • In timber construction and when fitting solid timber walls, corners frequently need to be cut out. Thanks to the vertical cutting edge, recesses and half-lap joints can be produced quickly and exactly. The arduous task of turning the work simply does not arise.

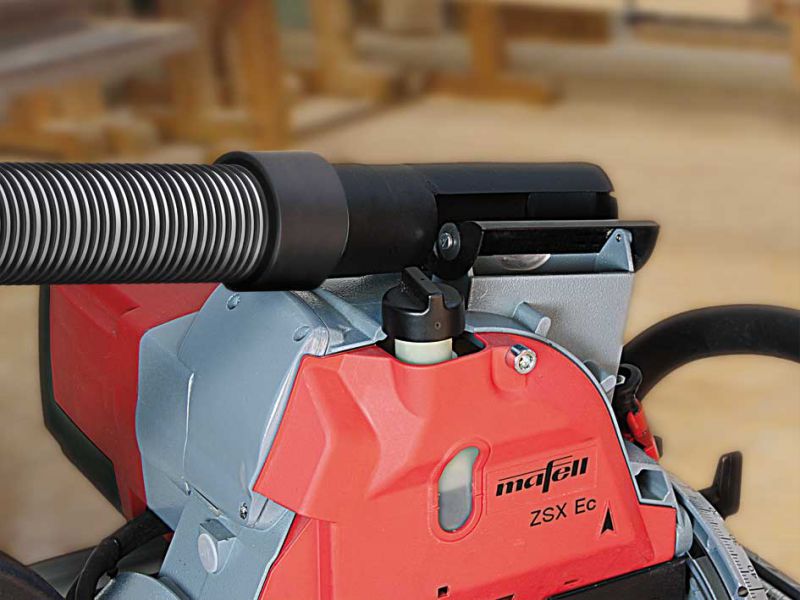

  • At the core of the MAFELL ZSX-TWIN Ec are the two 3000-Watt single-phase motors. They run at the same time on two 230 V phases of the three-phase electric power system.
  • The ZSX pivots from -15° to 60° exactly according to the scale.
  • Mafell CUprex High-Performance Motor



Applications

  • Rip cuts and cross-cutting
  • Recesses
  • Compatible materials include solid wood and laminated beams



Items included

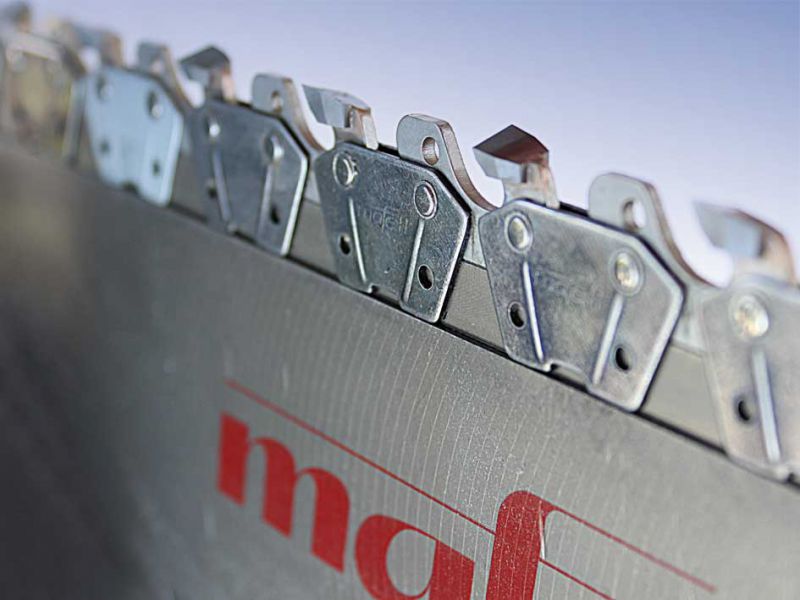

  • 1 Carbide-tipped ripping chain TWIN HM 400 Ref. No. 006977
  • 1 Carbide-tipped fine sawing chain HM 400 Ref. No. 006972
  • 1 Trolley ZSX-TWIN Ec

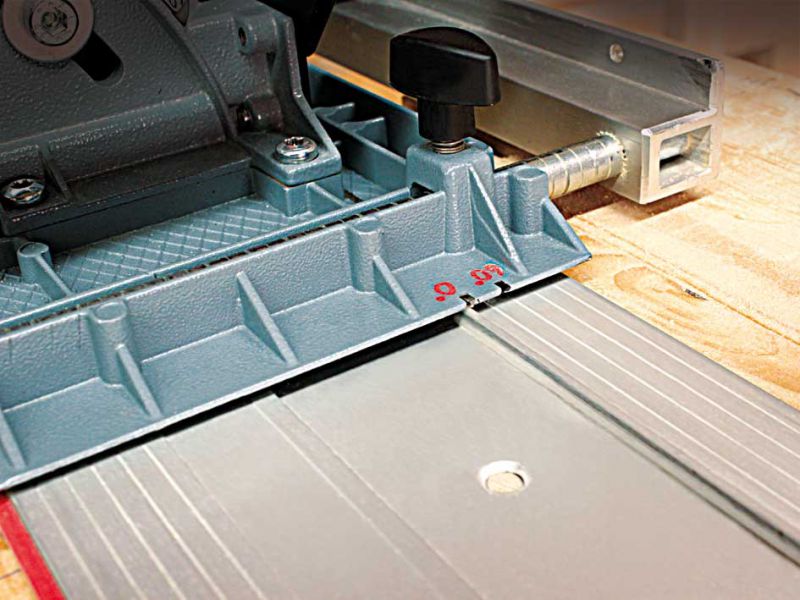

  • 1 Glider for use with guide rail Ref. No. 205934

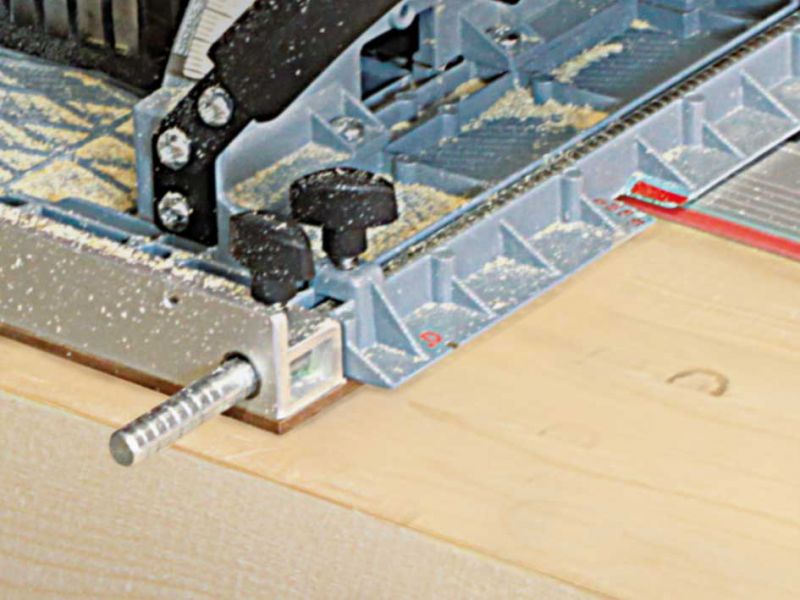

  • 1 Parallel fence Ref. No. 204591
  • 1 Combination screw driver 6 mm Ref. No. 093272
  • 1 Open-end spanner 13 mm Ref. No. 093008
  • 1 Mains cable 10 m (32.8 ft) Ref. No. 087612



Technical details

  • Cutting depth 15 3/4 Inch
  • Cutting depth at 15° 15 3/16 lbs
  • Cutting depth at 30° 13 5/8 lbs
  • Cutting depth at 45° 11 1/8 Inch
  • Cutting depth at 60° 7 13/16 Inch
  • Tilts in both directions -15 - +60 °
  • Nominal No. of strokes – no load 3600 1/min
  • Nominal power input 2 x 4.0 hp
  • Weight 53,4 lbs
  • Universal motor 230 V / 50 Hz



Mafell ZSX TWIN EC Owners Manual
