Mafell SKS 130 Door Lock Mortiser in Case with 16mm Chain Set 110v - 915522

X
Product Code: MAF/915522
Brand: Mafell
Stock Expected
Delivery typically within 2-3 weeks
£2,545.71 Inc. VAT
£2,121.43 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Mafell

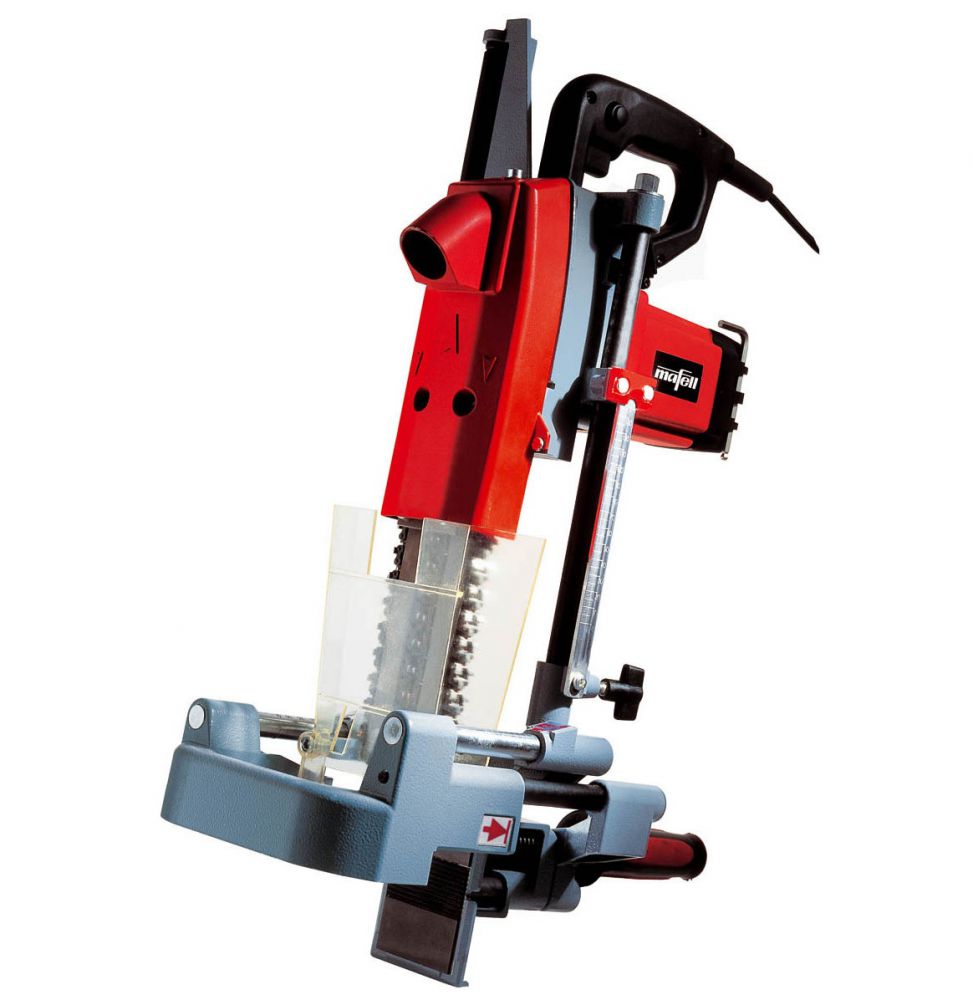

Mafell SKS 130 Door Lock Mortiser in Case with 16mm Chain Set 110v

ref: 915522



Key Features

  • The SKS 130 – the world´s first portable special machine for mortising door locks.
  • The security needs of many house and apartment owners have increased considerably, so that more and more security locks are being fitted.
  • At 1600 watts (2.1 hp), the SKS 130 cuts door locks of all sizes - completely tear-free!

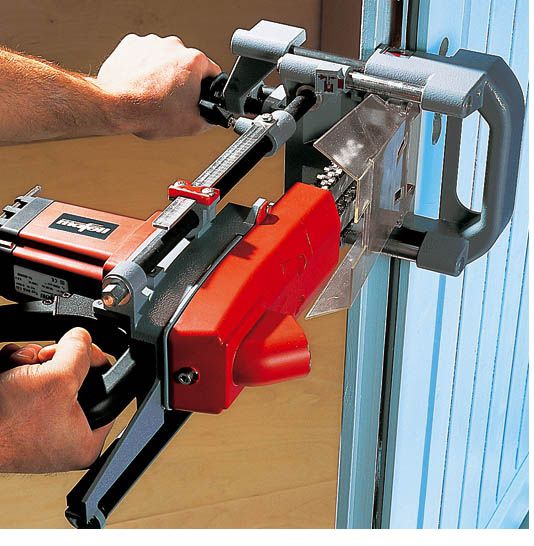

  • The SKS 130 is clamped onto a large surface of the door. Due to the Pertinax/rubber surface of the clamping device, the door surface remains protected, whether mounted on site or in the workshop.

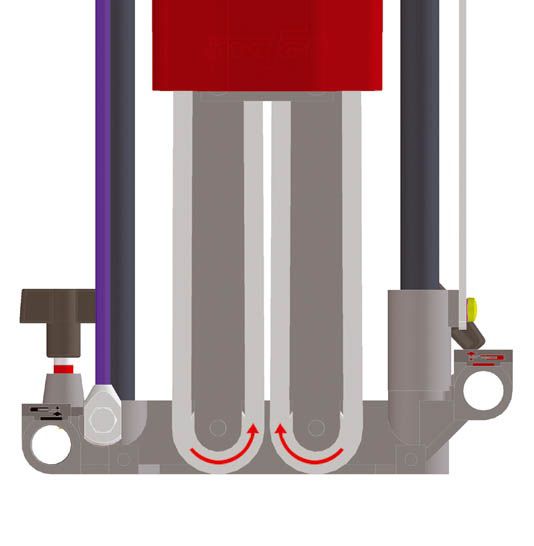

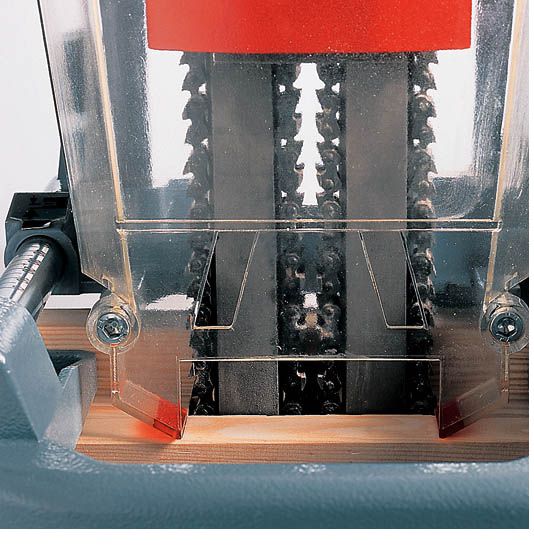

  • Two special mortising chains in opposite directions - for tear-free work and optimum chip flow.
  • Handy, ergonomic, compact construction – for on-site work on mounted doors.
  • Two special mortising chains in opposite directions – for tear-free work and optimum chip flow.



Applications

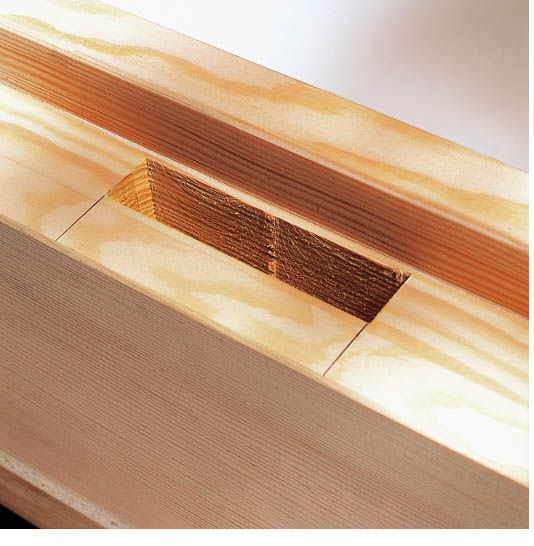

  • Cutting mortises for lock cases (installation of safety locks)
  • Compatible materials include doors made of wood and wood-based materials, solid wood



Strengths and benefits

  • Mortising lengths of 78 mm (3 1/16 in.) and mortising widths of 16 mm (5/8 in.) are possible with one cut. Wider and longer slots can also be made to the exact millimetre by following up with the SKS 130.
  • Two special mortising chains in opposite directions ensure tear-free work and optimum chip flow.
  • The chain bars are maintenance-free and do not need to be re-greased.
  • No longer a problem: quick, precise lock mortising is now possible on a mounted door.



Items included

  • 2 Chain bars cpl. Ref. No. 091000
  • 2 Sprockets Ref. No. 091002
  • 1 Allen key 5 mm Ref. No. 093278
  • 2 Mortising chains Ref. No. 091001
  • 1 Mains cable 4 m (13.1 ft)
  • Carrying Case


Technical details

  • Mortising depth: 5 1/8 Inch
  • Mortising width: 9/16, 5/8, 11/16 Inch
  • Mortising length: 3 1/16 Inch
  • Stroke/working travel: 6 7/8 Inch
  • Nominal No. of strokes – no load: 5770 1/min
  • Nominal power input: 2.1 hp
  • Weight: 23.4 lbs
  • Universal motor: 110 V



Mafell SKS 130 Door Lock Mortiser Manual
