Mafell Portable Carpenter's Bandsaw Z5 EC 240v - 925321

X
Product Code: MAF/925321
Brand: Mafell
In Offsite Stock - Delivery in 4 to 5 Days
£5,343.43 Inc. VAT
£4,452.86 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities
Qty
Mafell

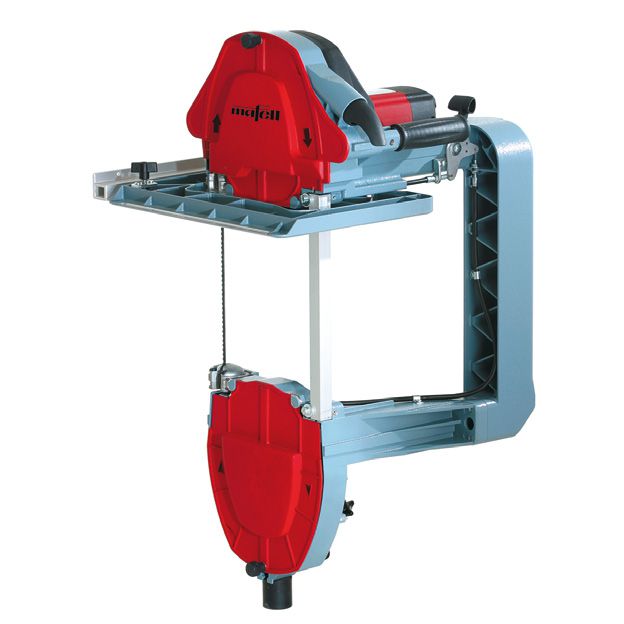

Mafell Z5Ec Carpenter's Bandsaw 240 v - (Ref: 925301)



Key Features

  • The Z 5 Ec portable bandsaw is the innovative successor to the legendary Z 3. Owing to a new, high-output motor and magnesium die-cast components, its persuasive benefits includes reduced weight (13.7 kg / 30.2 lbs), enhanced performance, higher torque and excellent handling.
  • Exclusive with ball bearing saw band guidance for excellent band running and thus for optimum cutting. Maximum 8 mm (5/16 in.) saw bands for optimum flexibility when curving and profiling purlins and rafters.

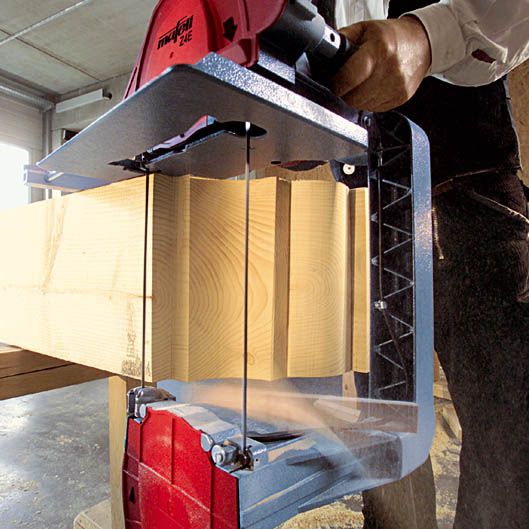

  • The Z5 Ec offers an impressive cutting depth of 305 mm (12 in.). The precision that typifies MAFELL portable bandsaw enables the Z 5 Ec to execute extremely clean and perfectly square cuts.
  • The cooling air of the high-performance motor is utilized to blow away dust from the mark. As a consequence, chips are kept well away from your head and you maintain a clear view of the mark at all times.



Strengths and benefits

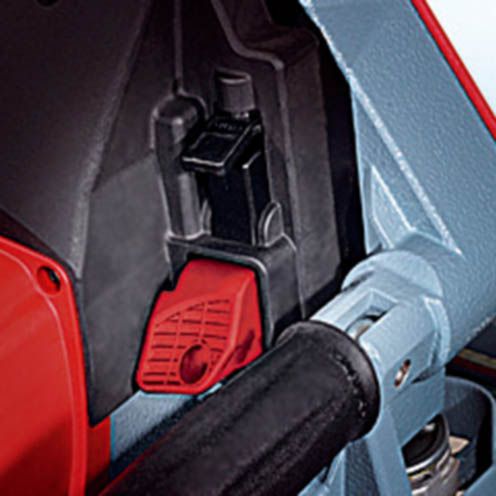

  • The back-toothed blade facilitates retraction from the cut, which is especially easy if the blade is locked by the mechanical brake.
  • With a spring-mounted and tensioned idler wheel, changing blades is an easy and quick procedure.
  • With voltage loss switch for protection against uncontrolled reconnection after a power interruption.
  • The unique tilting blade guide allows right-angle cuts to be made up to 90 mm (3 9/16 in.) deep without the opposite side of the blade touching the wood, e.g. when cutting lapped joints.
  • Mafell CUprex High-Performance Motor



Applications
  • Rip cuts and cross-cutting
  • Curving and profiling
  • Birdsmouth cuts and lap joints
  • Compound miter cuts and angled birdsmouths (two-man operation)
  • Compatible materials include solid wood and laminated beams



Items included
  • 1 Saw band, 8 mm (5/16 in.) wide, 4 teeth per inch, with front and rear cutting teeth
  • 1 Saw band, 8 mm (5/16 in.) wide, 4 teeth per inch
  • 1 Saw band, 6 mm (1/4 in.) wide, 4 teeth per inch
  • 1 Handle for two-man operation; Ref. No. 203824
  • 1 Parallel guide fence, Ref. No. 039386
  • 1 Mains cable 10 m (32.8 ft)
  • Boxed



Technical details
  • Cutting depth 305 mm
  • 1 band side tiltable 0 - 30 °
  • Nominal No. of strokes – no load 650-1550 1/min
  • Nominal power input 2250 W
  • Weight 13,6 kg
  • Universal motor 230 V / 50 Hz


Mafell Z5 EC Bandsaw Manual
