Mafell NFU 50-18 Cordless Groove Cutting Machine 18v, Pure - 91F303

X
Product Code: MAF/91F303
Brand: Mafell
Stock Expected
Delivery typically within 2-3 weeks
£2,365.71 Inc. VAT
£1,971.43 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Mafell

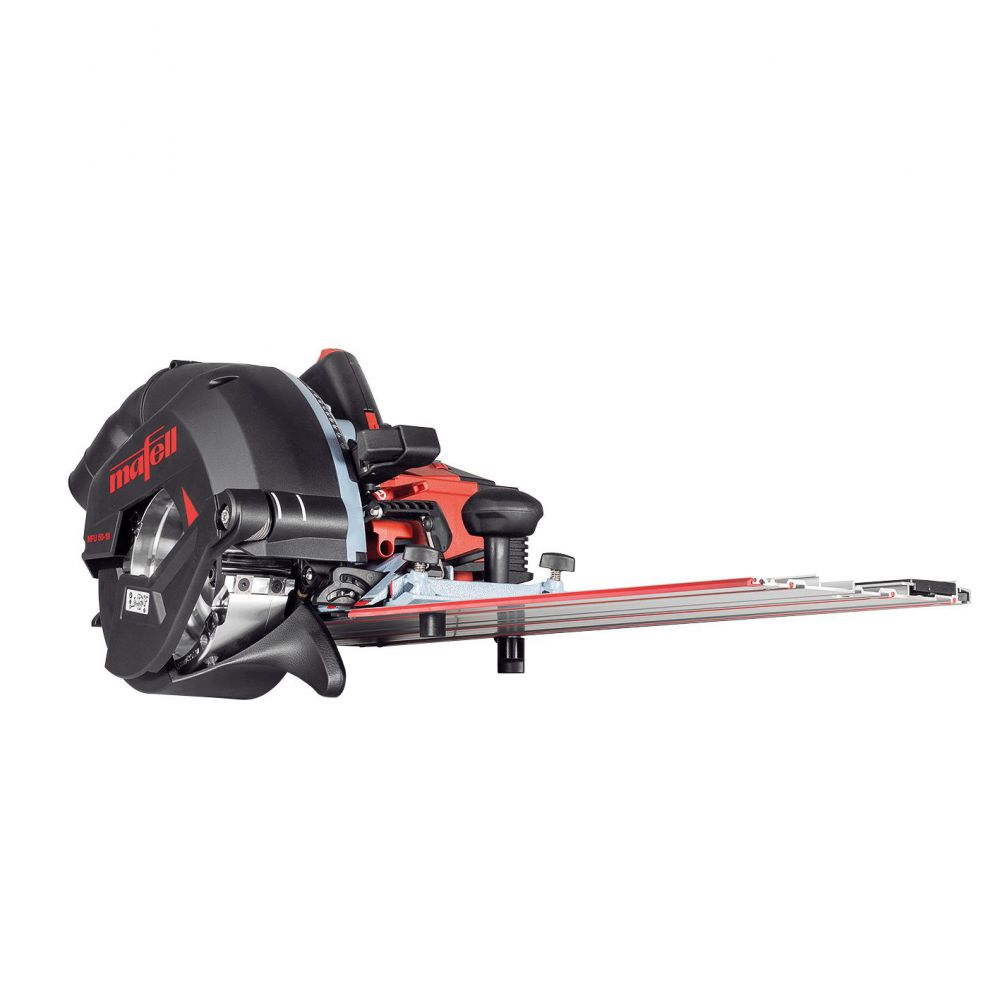

Mafell NFU 50-18 Cordless Groove Cutting Machine 18v, Pure

ref: 91F303



Key Features

  • Groove cutting machine NFU 50 offers flexibility of use and is an all-rounder capable of executing an enormous range of timberconstruction tasks. An extensive range of accessories opens up further possibilities for day-to-day work.
  • The design of the NFU 50 is characterized by the use of extremely rugged, high-quality and precision-made parts, including the lightweight magnesium die-cast housing and impact-resistant, fiber glass-reinforced plastic components. It also features clever technical details to help you meet the rigors of the job.
  • The rotating 58 mm (2 5/16 in.) hose connector for large volumes of dust can be positioned by means of a locking function.
  • The 2-in-1 functionality allows the cutting depth to be set quickly and easily.
  • The brake on the Groove cutting machines stops the motor within 3 seconds for optimum saftey.
  • The NFU can be removed from the cross-cut track at the single press of a button, allowing its use either freehand or on the guide rail.



Applications

  • Lengthwise and crosswise grooves
  • Frieze blocks (with guide)
  • Panels in half-timbered buildings, false floors
  • Birdsmouth joints up to 45°
  • Tenons
  • Compatible materials include solid wood and board materials



Items included

  • 1 Cutter head Ø 163 x 60 mm (6 7/16 x 2 3/8 in.); Ref. No. 091901
  • 1 position indicator NFU-PA
  • 1 Parallel guide fence
  • 1 Side fence SA 625; Ref. No. 207183
  • 1 Guide track L, max. cutting length 370 mm (14 9/16 in.); Ref. No. 208171
  • 1 allen key SW 6
  • 1 allen key Torx T 15
  • boxed
  • battery and charger NOT included



Technical details

  • Cutting depth at 0° with guide track: 0 – 44 mm
  • Cutting depth at 0° with guide track: 0 - 1 3/4 in
  • Cutting depth at 0° without guide track: 0 – 50 mm
  • Cutting depth at 0° without guide track: 0 - 1 15/16 in
  • Tilt range: 0 – 45 °
  • Nominal No. of strokes – no load: 4700 - 7100 1/min
  • Weight (including battery): 10,3 kg
  • Weight (including battery): 22.7 lbs
  • Dimensions (W x L x H) with guide L: 370 x 810 x 280 mm
  • Dimensions (W x L x H) with guide L: 14 9/16 x 31 7/8 x 11 in
  • Cutting length with guide L: 370 mm
  • Cutting length with guide L: 14 9/16 in
  • Extraction connection diameter: 49 mm
  • Extraction connection diameter: 1 5/16 in
  • Nominal voltage: 2 x 18 V



Mafell NFU 50-18 Owners Manual
