Mafell Duo-Dowel System DDF 40 MaxiMax 110v, with 800mm Dowel template and 2 x 5mm Dowel drill bits

X
Product Code: MAF/918622-PK
Brand: Mafell
Stock Expected
Delivery typically within 3-4 days
£1,097.66 Inc. VAT
£914.72 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Mafell

Mafell DuoDoweler DDF 40 MaxiMAX in T-MAX - GB 110 V, c/w 800mm Dowel template and 2 x 5mm Dowel drill bits



Key Features

  • New ergonomic design for easy handling
  • Patented alignment system
  • Slimline machine with a flat baseplate
  • The DuoDoweler DDF 40 introduces greater ease and efficiency to the task of drilling accurate dowel holes. Its hallmarks are a broad range of applications, a new ergonomic design for easy handling, and absolutely aligned, stable joints.
  • Whether in the workshop or on site, no other hand-held power tool can produce such high-quality joints.
  • When producing corner joints, partitions or rows of holes, the DDF 40 offers not only the precision of a stationary machine, but also the cost savings associated with standard wooden dowels.

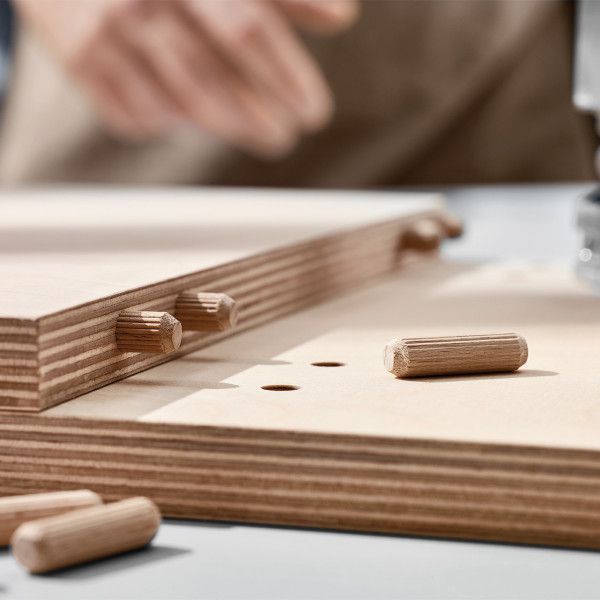

  • In addition, the technique of using dowels in pairs already achieves outstanding stability at the dry assembly stage.



Strengths and benefits

  • The rotary knob and scale allow the tilting fence to be accurately repositioned up to a height of 62 mm (2 7/16 in.) . Regularly occurring dimensions can be preset by way of the turret.
  • Two spring-loaded pins in the baseplate enable the user to drill holes at a fixed distance of 15,5 mm (5/8 in.) from the edge of the work; repetitive drilling without any measuring or marking is simple.
  • The ergonomic motor housing, with a molded grip at the front and a hump at the rear, gives the operator a perfect hold no matter what the job, while ensuring the ideal transmission of force to the machine.

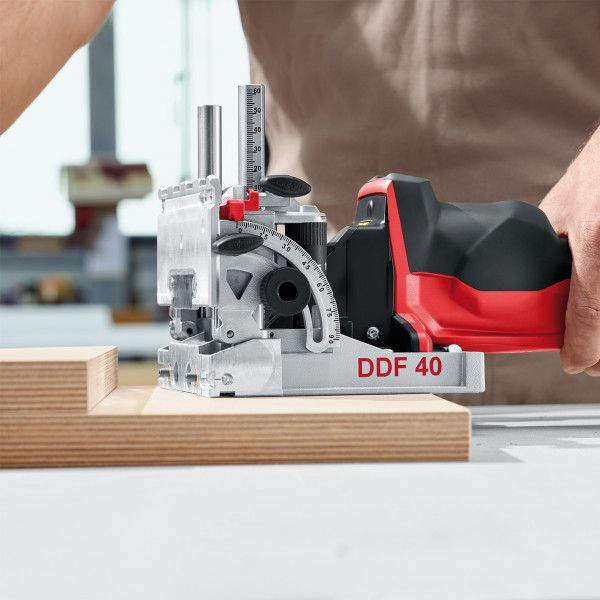

  • The tilting fence is located on two columns and fastened with a single adjusting screw. For miter joints, it tilts continuously from 0 through 90 degrees. Indexing stops are provided at 22.5°, 45° and 67.5°.

Applications
  • Rows of holes
  • Drilling for fittings/hardware
  • Ideal for carcass and staircase construction in the workshop and on site
  • Compatible materials include solid wood and board materials
  • All types of joints from 3 - 12 mm (1/8 in. - 1/2 in.)

Items included
  • 1 Mafell dowel template guide c/w clamps (800mm) - (Ref: 203980)
  • 2 Mafell dowel drill bit 5mm (each) - (Ref: 090089)
  • 1 auxiliary rest ZA
  • 1 set of additional stops ZAG
  • 1 hose connector
  • 1 position indicator PAZ
  • 2 Anti-slip mats, wrapped - (Ref: 095063)
  • 1 Bottle for gluel 250 ml (without glue) - (Ref: 095059)
  • 1 Allen key with handle - (Ref: 093282)
  • 2 carbide dowel drills-HW, dia. 8 mm
  • 2 carbide dowel drills-HW, dia. 6 mm
  • 1 pack of wooden dowels, 8 x 30 mm, qty. 200
  • 1 pack of wooden dowels, 6 x 30 mm, qty. 350
  • 1 Dowel nozzle Ø 8 mm - (Ref: 095060)
  • 1 side fence set SA 320 - (Ref: 206490)
  • 1 stop pin insert for battens LA - (Ref: 206491)

Technical details
  • Drilling depth 0 - 1 9/16 Inch
  • Drill spacing 1 1/4 Inch
  • Chuck Ø 5/16 Inch
  • Tool Ø max. 1/2 Inch
  • Tool Ø min. 1/8 Inch
  • Tilt range 0 - 90 °
  • Nominal No. of strokes – no load 8000 1/min
  • Nominal power input 1.2 hp
  • Extraction connection diameter 1 1/8 Inch
  • Weight 6.2 lbs
  • Dimensions (W x L x H) 5 11/16 x 11 13/16 x 6 7/16 Inch
  • Universal motor 110 V / 50 Hz



Click here for a series of YouTube tutorial videos on the DDF40

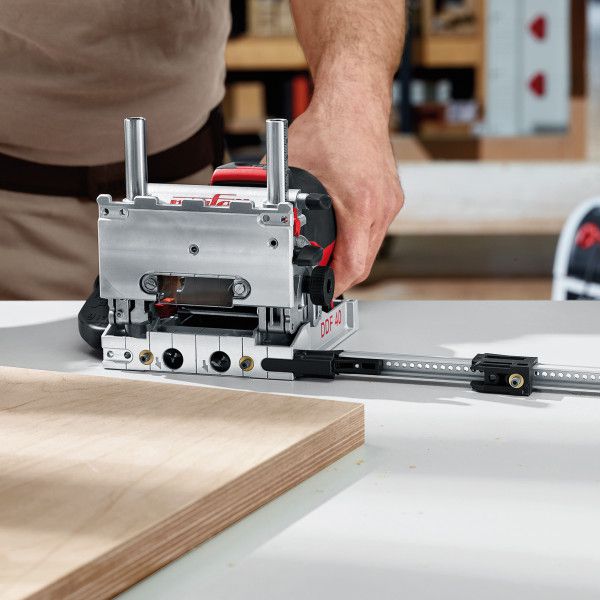

Mafell Dowel drilling template - 800 mm with quick acting clamping device - (Ref: 203980)

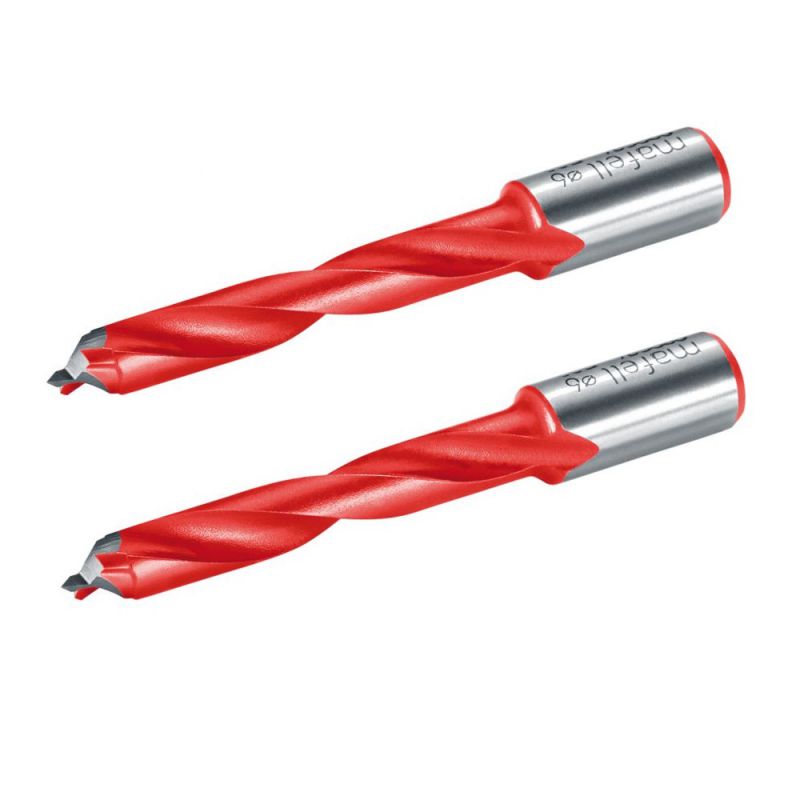

Mafell Dowel drill bit-HW - Ø 5 mm, 3/16 in - (Ref: 090089)

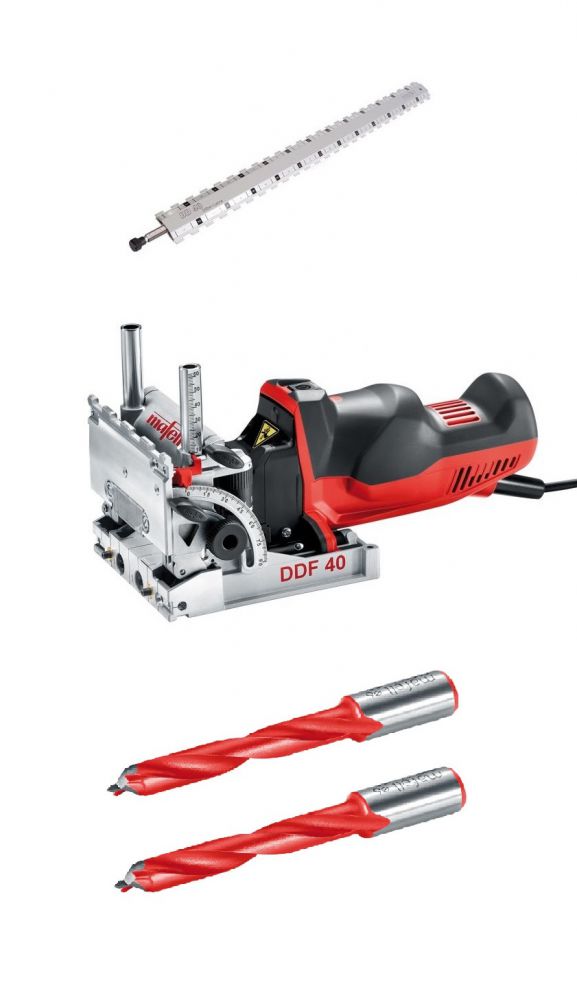

Items Included
Click For Bigger Image

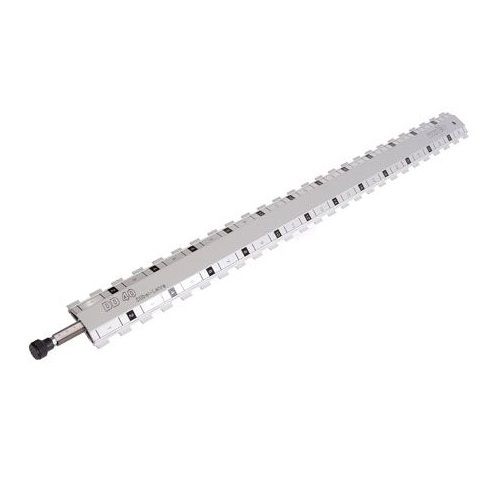

1 X Mafell Dowel Drilling Template 800mm with Quick Acting Clamping Device - 203980
Click For Bigger Image
2 X Mafell 090089 Mafell dowel drill bit 5mm (each)
Click For Bigger Image

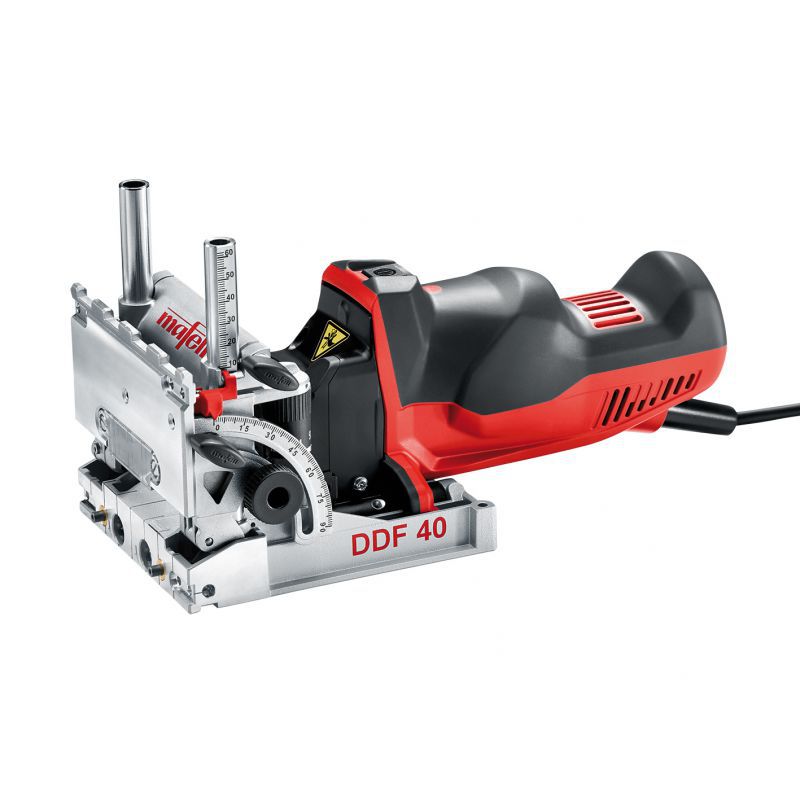

1 X Mafell DDF 40 MaxiMAX Duo-Dowel System Doweller 110v - 918622
