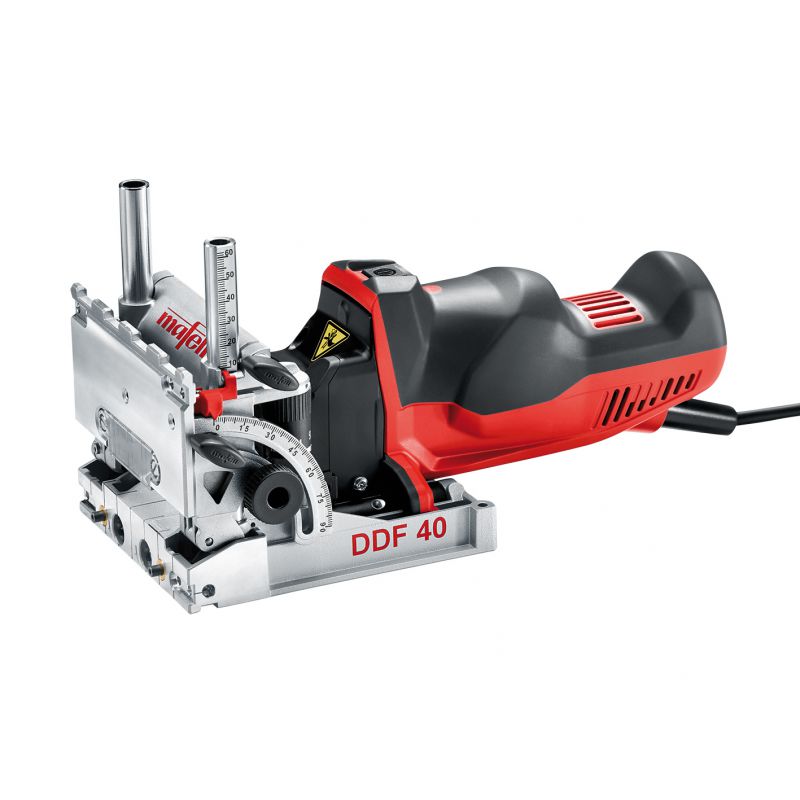

Mafell DDF 40 MaxiMAX Duo-Dowel System Doweller 240v - 918621
Product Code: MAF/918621
Brand: Mafell
£1,020.00 Inc. VAT
£850.00 Exc. VAT
Mafell DuoDoweller DDF 40 MaxiMAX in T-MAX - GB 230 V - (Ref: 918621)
Key Features
- New ergonomic design for easy handling
- Patented alignment system
- Slimline machine with a flat baseplate
- The DuoDoweler DDF 40 introduces greater ease and efficiency to the task of drilling accurate dowel holes. Its hallmarks are a broad range of applications, a new ergonomic design for easy handling, and absolutely aligned, stable joints.
- Whether in the workshop or on site, no other hand-held power tool can produce such high-quality joints.
- When producing corner joints, partitions or rows of holes, the DDF 40 offers not only the precision of a stationary machine, but also the cost savings associated with standard wooden dowels.

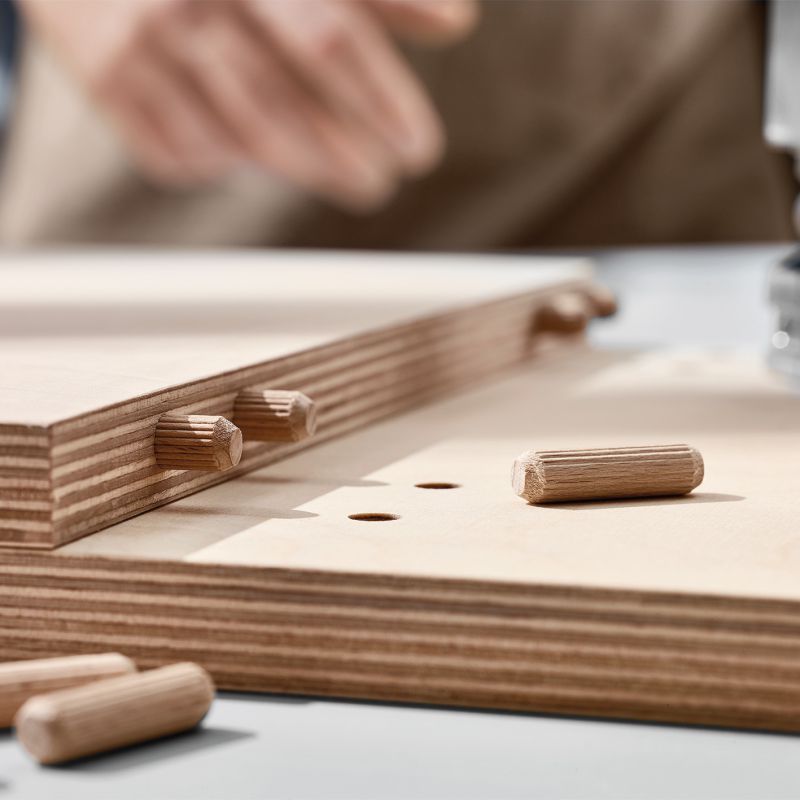

- In addition, the technique of using dowels in pairs already achieves outstanding stability at the dry assembly stage.
Strengths and benefits
- The rotary knob and scale allow the tilting fence to be accurately repositioned up to a height of 62 mm (2 7/16 in.) . Regularly occurring dimensions can be preset by way of the turret.
- Two spring-loaded pins in the baseplate enable the user to drill holes at a fixed distance of 15,5 mm (5/8 in.) from the edge of the work; repetitive drilling without any measuring or marking is simple.
- The ergonomic motor housing, with a molded grip at the front and a hump at the rear, gives the operator a perfect hold no matter what the job, while ensuring the ideal transmission of force to the machine.

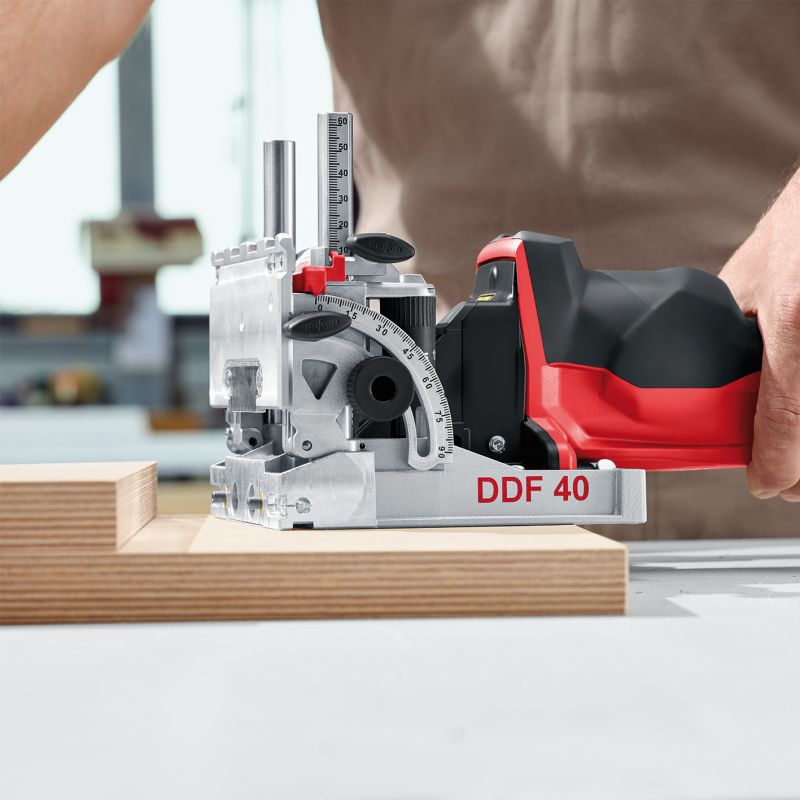

- The tilting fence is located on two columns and fastened with a single adjusting screw. For miter joints, it tilts continuously from 0 through 90 degrees. Indexing stops are provided at 22.5°, 45° and 67.5°.

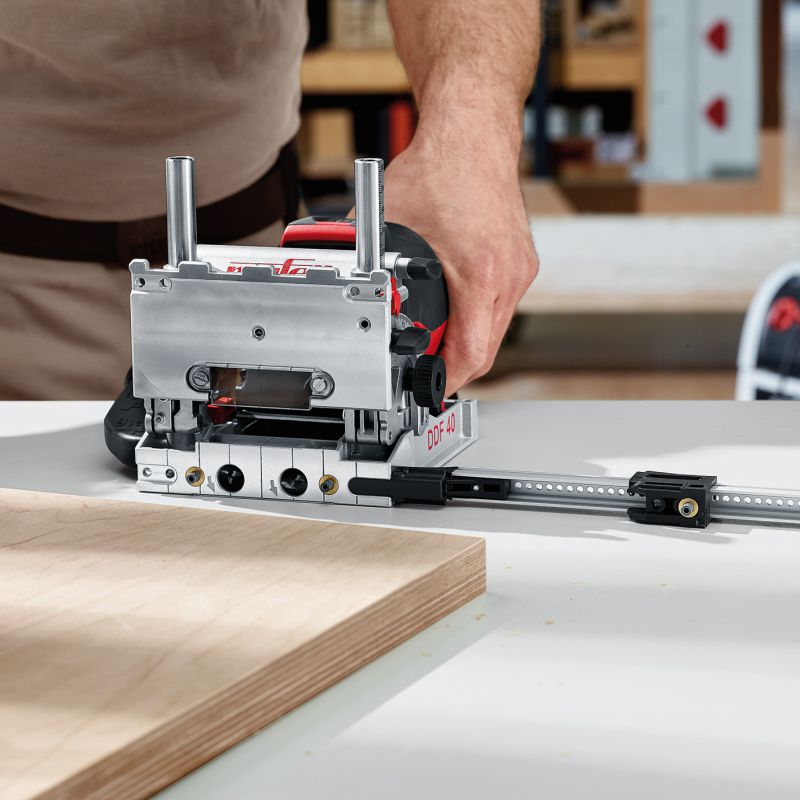

- Rows of holes
- Drilling for fittings/hardware
- Ideal for carcass and staircase construction in the workshop and on site
- Compatible materials include solid wood and board materials
- All types of joints from 3 - 12 mm (1/8 in. - 1/2 in.)
- 1 auxiliary rest ZA
- 1 set of additional stops ZAG
- 1 hose connector
- 1 position indicator PAZ
- 2 Anti-slip mats, wrapped Ref. No. 095063
- 1 Bottle for gluel 250 ml (without glue) Ref. No. 095059
- 1 Allen key with handle Ref. No. 093282
- 2 carbide dowel drills-HW, dia. 8 mm
- 2 carbide dowel drills-HW, dia. 6 mm
- 1 pack of wooden dowels, 8 x 30 mm, qty. 200
- 1 pack of wooden dowels, 6 x 30 mm, qty. 350
- 1 Dowel nozzle Ø 8 mm Ref. No. 095060
- 1 side fence set SA 320 Ref. No. 206490
- 1 stop pin insert for battens LA Ref. No. 206491
- Drilling depth 0 - 1 9/16 Inch
- Drill spacing 1 1/4 Inch
- Chuck Ø 5/16 Inch
- Tool Ø max. 1/2 Inch
- Tool Ø min. 1/8 Inch
- Tilt range 0 - 90 °
- Nominal No. of strokes – no load 8000 1/min
- Nominal power input 1.2 hp
- Extraction connection diameter 1 1/8 Inch
- Weight 6.2 lbs
- Dimensions (W x L x H) 5 11/16 x 11 13/16 x 6 7/16 Inch
- Universal motor 230 V / 50 Hz
