Mafell DD40P Duo Dowel System PowerMax Doweller 110v - 916042
Product Code: MAF/916042
Brand: Mafell
Stock Expected
Delivery typically within 2-3 weeks
£1,017.26 Inc. VAT
£847.71 Exc. VAT
✗ COLLECTION
✓ DELIVERY

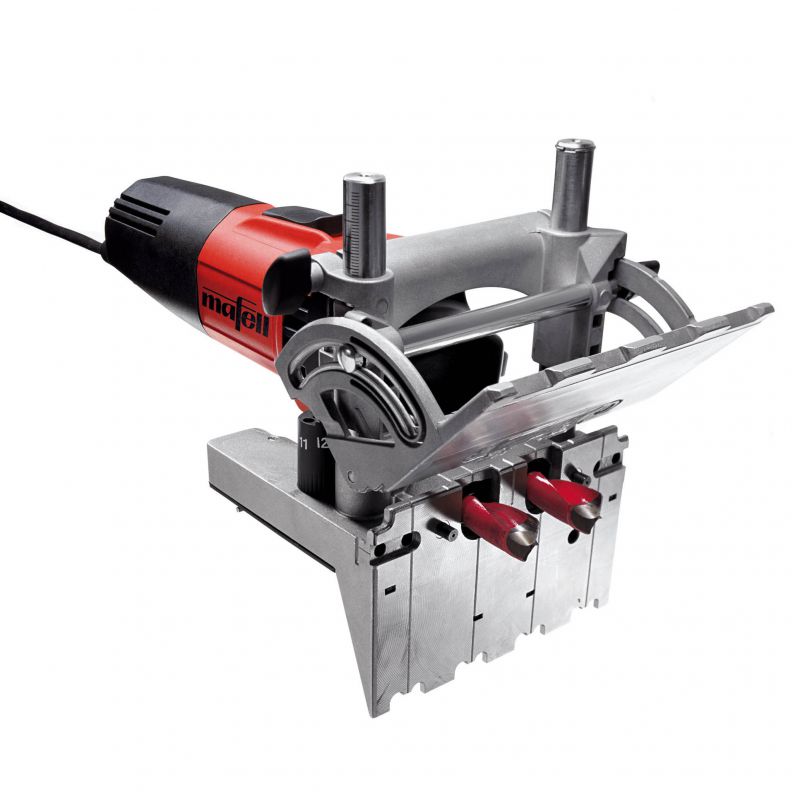

Mafell Duo-Dowel System DD40P - PowerMAX in T-MAX - GB 110 V - (Ref: 916042)
Key Features
- The PowerMax Duo-Dowel Jointer DD40 is the only portable dowel machine on the market. This MAFELL product is unparalleled worldwide.
- Thanks to the use of conventional wooden dowels combined with the precise Duo-Dowel Jointer DD40, MAFELL has triggered a revolution in portable joining. Furthermore, the Duo-Dowel System DD40 is faster, more precise and less expensive than any other on the market.
- The work is fastened exactly by the dowels, so that clamping is much simpler and quicker, or it can be omitted altogether.
- MAFELL´s DD40 System is an inclusive product package, comprising the MaxiMAX or MidiMAX machine in a MAFELL-MAX case, wooden dowels, a glue bottle, 2 anti-slip mats and drill bits as standard.
Strengths and benefits
- A clear scale for adjusting the material thickness and a turret with six stops enable you to reset the DD40 for a variety of thicknesses in a very short time.
- Stop system for fast and precise positioning. Retractable stop pins and auxiliary stops facilitate drilling near the edge – without the need for marking.
- Continuously variable settings for drilling depth, material thickness and joint angle.
- The tilting fence is located and fastened on both sides.
Applications
- Rows of holes
- Drilling for fittings/hardware
- Ideal for carcass and staircase construction in the workshop and on site
- Compatible materials include solid wood and board materials
- All types of joints from 5 - 16 mm (3/16 in. - 5/8 in.)
Items included
- 2 Anti-slip mats, wrapped Ref. No. 095063
- 1 Bottle for glue 250 ml (without glue) Ref. No. 095059
- 1 Allen key with handle Ref. No. 093282
- 1 Auxiliary stops (assortment) Ref. No. 203473
- 1 Dowel nozzle Ø 8 mm Ref. No. 095060
- 1 MAFELL special dowels 8 x 30 mm, 200 pieces
- 1 MAFELL special dowels 10 x 40 mm, 100 pieces
- 1 MAFELL special dowels 12 x 60 mm, 40 pieces
- 2 MAFELL dowel drill bits, carbide-tipped Ø 8, 10, 12 mm
- Transport and storage box T-MAX
Technical details
- Drill spacing 1 1/4 Inch
- Chuck Ø 5/16 Inch
- Tilt range 0 - 90 °
- Drilling depth 0 - 1 9/16 Inch
- Nominal No. of strokes – no load 13.500 1/min
- Nominal power input 1.3 hp
- Weight 6.4 lbs
- Tool Ø max. 5/8 Inch
- Tool Ø min. 3/16 Inch
- Universal motor 110 V
