Laserliner VideoInspector 3D Micro Professional Video Inspection System - 082.277A

Laserliner VideoInspector 3D Micro Professional Video Inspection System

ref: 32070 / 082.277A

The professional video inspection system with extremely compact camera head is ideal for precise visual inspections of small openings, for example in motor vehicles or machines. The watertight, movable camera head can be optimally adjusted for the location using the 3D control. Thanks to the object illumination with six high-performance ceramic LEDs, clear images can be achieved even under the worst conditions. The high-contrast TFT display rotates the image in 90° steps. The REC function can be used to record still images and videos for later analysis. Supplied with battery pack, magnetic bracket, USB charging cable, 8 GB micro-SD card, card reader, screwdriver and carrying case.

• Extremely small camera head diameter – perfect for small openings
• Supplied with battery pack, magnetic bracket, USB charging cable, 8 GB micro-SD card, card reader, screwdriver and carrying case
• Easy problem localisation behind or in objects, walls, pipes, cavities
• Clear images even under the worst conditions
• Manual 3D control of titanium camera head which moves through max. 160°
• Sturdy, durable adjustment mechanism
• Powerful object lighting thanks to 6 high-performance ceramic LEDs
• Image rotation in 90° increments
• Image and video REC function on SDHC memory card
• High-grade, long-life flexible tungsten tubing

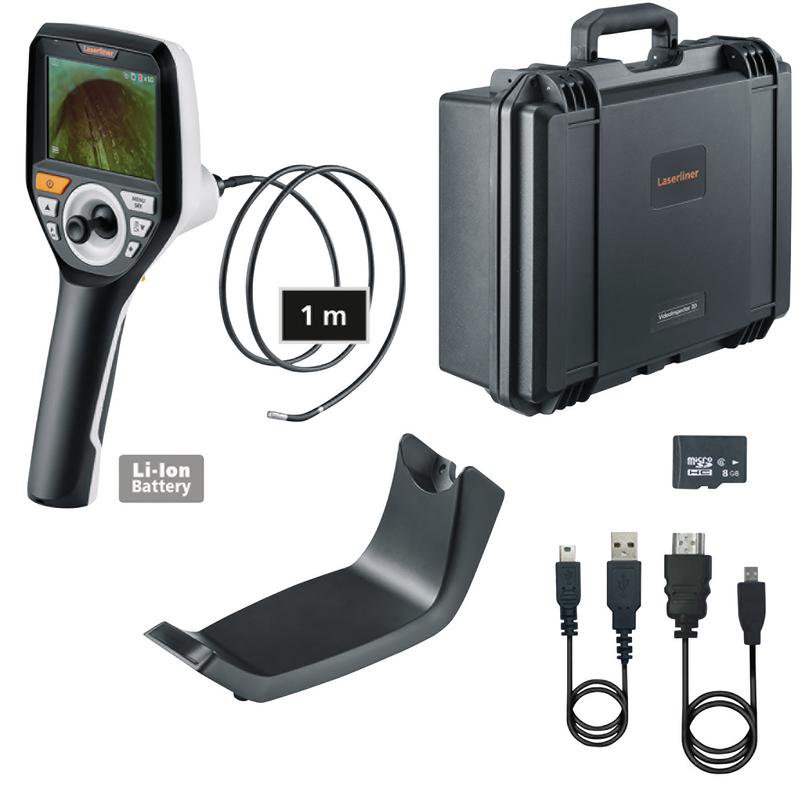

• 1 x Laserliner 082.277A VideoInspector 3D Micro Professional Video Inspection System (3,9 mm; 1 m)
• 1 x InspectorCamera 3D Micro
• 1 x Li-ion battery pack
• 1 x Magnetic bracket
• 1 x USB charging cable
• 1 x 8 GB micro SD card
• 1 x Card Reader
• 1 x Screwdriver
• 1 x Carrying case

• Live display: Yes
• Image/video recording: Yes
• Image/video playback: Yes
• Digital zoom: Yes
• Controllable camera head: Yes
• Time stamp: Yes
• Image alignment: Yes
• External image/video output: Yes
• Data transfer: Yes
• Diameter Camera Head: 3.9 mm
• Camera Resolution: 960 x 720 pixels
• Field of View (FOV): 120°
• Depth of Focus (DOF): 0,5 10 cm
• Screen Type: 3,5" TFT display
• Display Resolution: 640 x 480 pixels
• Image Format: JPEG
• Length of Probe: 1 m
• Illumination: 10 brightness levels
• Digital Zoom: 10 zoom levels
• Memory: Micro-SD memory card up to 8 GB
• Ports: Micro USB, Power supply 5V / DC
• Dimensions (W x H x D): 115 mm x 190 mm x 115 mm
• Weight: 625g
