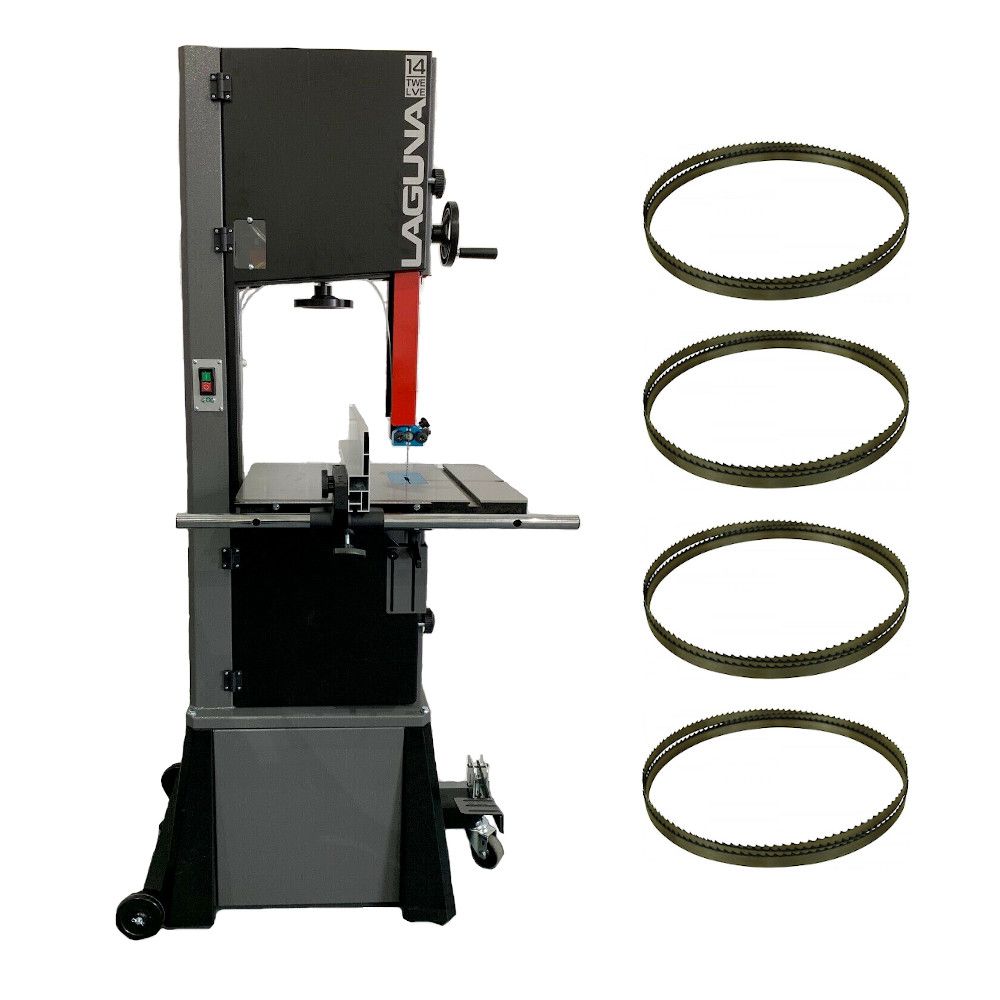

Laguna 14/12 Bandsaw Package Deal -14" Woodworking Bandsaw c/w 4 blades, mitre guide and wheel kit

X
Product Code: LG/14/12-PK2
Brand: Laguna
Low Stock - Please Call For Availability
Was £1,999.88 Inc. VAT
Now £1,579.00!
£1,315.83 Exc. VAT
✗ COLLECTION
✗ DELIVERY
Please call to check stock availability for larger quantities
Qty
Laguna

Laguna 14/12 Bandsaw Package Deal - 14" Laguna Woodworking Bandsaw 1.75hp 230v c/w 4 x bandsaw blades, mitre guide and wheel kit - (Ref: 14/12-PK2)



We are pleased to be introducing this multi award winning large 12" depth of cut bandsaw into Europe. Laguna's experienced designers have produced a bandsaw that we are sure will be a 'go to' machine in most joinery shops and high end DIY home workshops.



Key Features

  • These 'high end' features include a pyramid shaped spine that minimises any frame distortion when the blade is fully tensioned, ensuring cutting accuracy.
  • The 1 ¾ HP TEFC braked motor provides adequate power for even the deepest cuts. There is a quick blade release tension lever that makes blade changing faster and this is complimented with an easy to view blade tension scale indicator to easily ensure correct tension set up.
  • The micro polished 21" X 16″ cast iron table is mounted onto an oversized Trunion with two locking points that ensure there is a solid surface to work from. The rigid aluminium high/low fence ensures full and precise timber support.
  • Solid cast iron wheels are electronically / dynamically balanced & fitted with polyurethane one-piece tyres designed to run cooler and last longer than conventional tyres. The worm gear & pinion on the blade guard is ultra-smooth and engineered to have minimum flex even when fully extended - this is a trade mark of Laguna.
  • Double windows allow you to check both tension and tracking while the machine is running. There is a premium anodized aluminium throatplate with fine adjustment for ultimate accuracy.
  • And last but certainly not least, the famous ceramic Laguna guides create 10 points of contact on the blade allowing easy set up and highly accurate cuts even when re-sawing deep timber.
  • This really is a machine that needs to be viewed in the flesh to appreciate the premium build quality and features that have established this saw as a best seller..



Specification

  • Motor voltage/HP: 230V, 50Hz, 1 3/4HP (P2 = 1.3Kw S1)
  • Max. Depth of cut: 305mm (12")
  • Throat: 346mm (13 5/8")
  • Table cast iron: 406.4mm x 546mm (16" x 21 1/2")
  • Table tilt: -7 degrees +45 degrees
  • Mitre slot: 3/8" x 3/4" (9.525mm x 19.05mm)
  • Table height: 965mm (38")
  • Fly wheel: 14" Cast iron
  • Recommended breaker size: 15 Amp
  • Blade length: 2,921mm (115")
  • Minimum blade width: 3mm (1/8")
  • Maximum blade width: 19mm (3/4")
  • Guides Laguna ceramic above and below table
  • Machine Dimensions (W x D X H): 800mm x 683mm x 1784mm (31 1/2" x 26 7/8" x 70 1/4")
  • Stand Footprint (W x D): 642mm x 460mm (25 1/4" x 18 1/8")
  • Machine Dimensions with mobility kit (W x D): 882mm x 692mm (34 3/4" x 27 1/4")
  • Stand Footprint with mobility kit (W x D): 843mm x 521mm (33 3/16" x 20 1/2")
  • Weight gross: 125 kg (275 lbs)
  • Weight net: 117 kg (258 lbs)
  • Package size: 581mm x 581mm x 1397mm (22 7/8" x 22 7/8" x 55")
  • Mobility kit: Optional
  • Industrial work-light: Optional


PLEASE NOTE THIS VIDEO IS FROM AMERICA AND YOU SHOULD THEREFORE ALLOW FOR COSMETIC DIFFERENCES IN THE SOON TO BE UPLOADED UK VERSION OF THIS MACHINE.

Product Videos
Items Included
Click For Bigger Image
1 X Laguna 14/12 Woodworking Bandsaw - 14" Bandsaw 1.75Hp 230v
Click For Bigger Image
1 X Laguna 14/12WK Woodworking Bandsaw Mobility Kit Wheelkit
Click For Bigger Image
1 X SMG Sliding Mitre Guide for Laguna Bandsaws
Click For Bigger Image
1 X Starrett Woodpecker Bandsaw Blade 2921mm / 115" long 1/4 Wide x 6 TPI fits Laguna 14BX and 14/12
Click For Bigger Image
1 X Starrett Woodpecker Bandsaw Blade 2921mm / 115" long 3/8 Wide x 6 TPI fits Laguna 14BX and 14/12
Click For Bigger Image
1 X Starrett Woodpecker Bandsaw Blade 2921mm / 115" long 1/2 Wide x 4 TPI fits Laguna 14BX and 14/12
Click For Bigger Image
1 X Laguna 14/12 and 14BX Woodpecker Bandsaw Blade 2921mm x 20mm (3/4") x 4tpi
