Kreg DK5100 Kreg 5-Spindle Pneumatic Pocket Hole Machine

Kreg DK5100 Kreg 5-Spindle Pneumatic Pocket Hole Machine

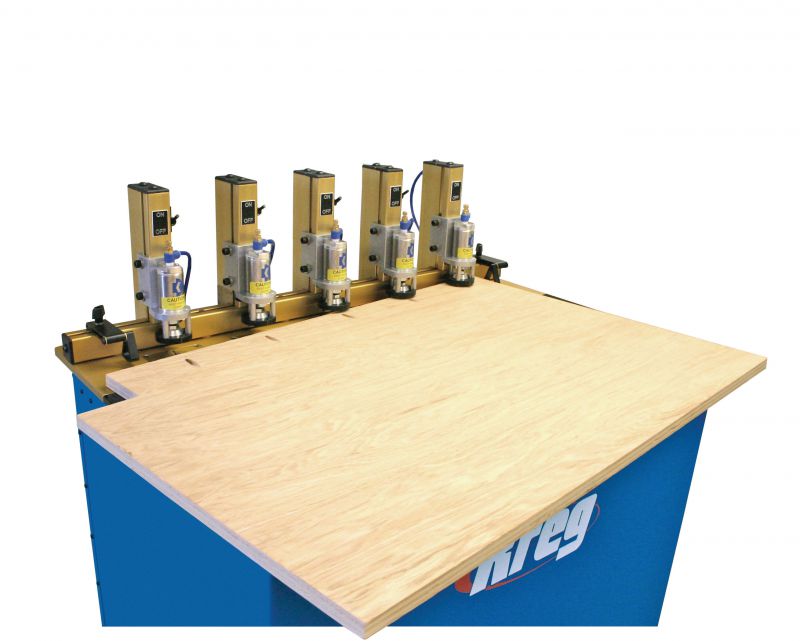

Five industrial-grade motors, five individually-activated clamping cylinders, and five durable drill spindles; all in one amazing machine. The DK5100 makes drilling multiple pocket holes across cabinet sides, shelving, stairs, and window or door extensions easier than ever before. In the right setting, it can beat the bottle-neck that’s slowing down your shop and significantly improve your bottom line. This machine is built for the shop that has a specific repetitive application that demands increased productivity. The time saved by drilling up to five pocket holes at once is truly dramatic and will allow you to reallocate resources to areas of your shop that need more attention.

• Five individually-actuated motors
• Five clamping cylinders
• Five durable drill spindles
• Entirely pneumatic design
• Hardened-steel drill guides to maximize drill bit life
• One-touch, foot pedal operation
• Swing Stops for optimized material positioning
• Dust collection chutes for efficient chip removal
• Pre-filter and automatic lubricator

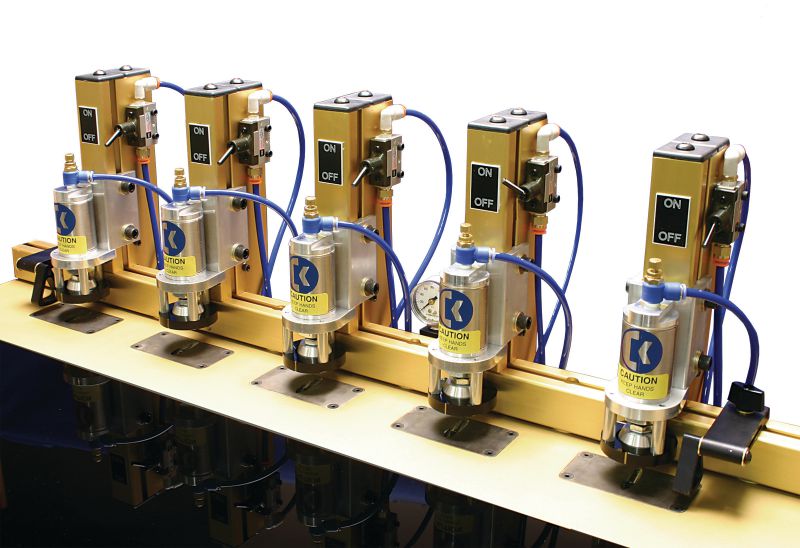

• Individual Control: Each of the five spindles is controlled with an on/off switch located on each clamping tower, giving you instant control of every spindle. Drill with all five spindles at once or turn a couple off to best meet the needs of your project.
• 5 Pocket Holes, 1 Machine Cycle: The DK5100’s five spindles are spaced 6" on-center, the perfect spacing for many panel applications. A simple tap of the foot pedal will create five uniform pocket holes in less than two seconds.
• Pneumatic Power: All five drill spindles are driven by industrial-grade, pneumatic motors that are designed to provide you with plenty of drilling power, panel after panel, year after year.

• Includes: (1) DK5100 with bits and fittings
• Owner's Manual

• Power: Five 3/4 HP motors, 20 CFM at 50% duty cycle (120 PSI/minute)
• Compatibility: DKDB Stepped Drill Bit

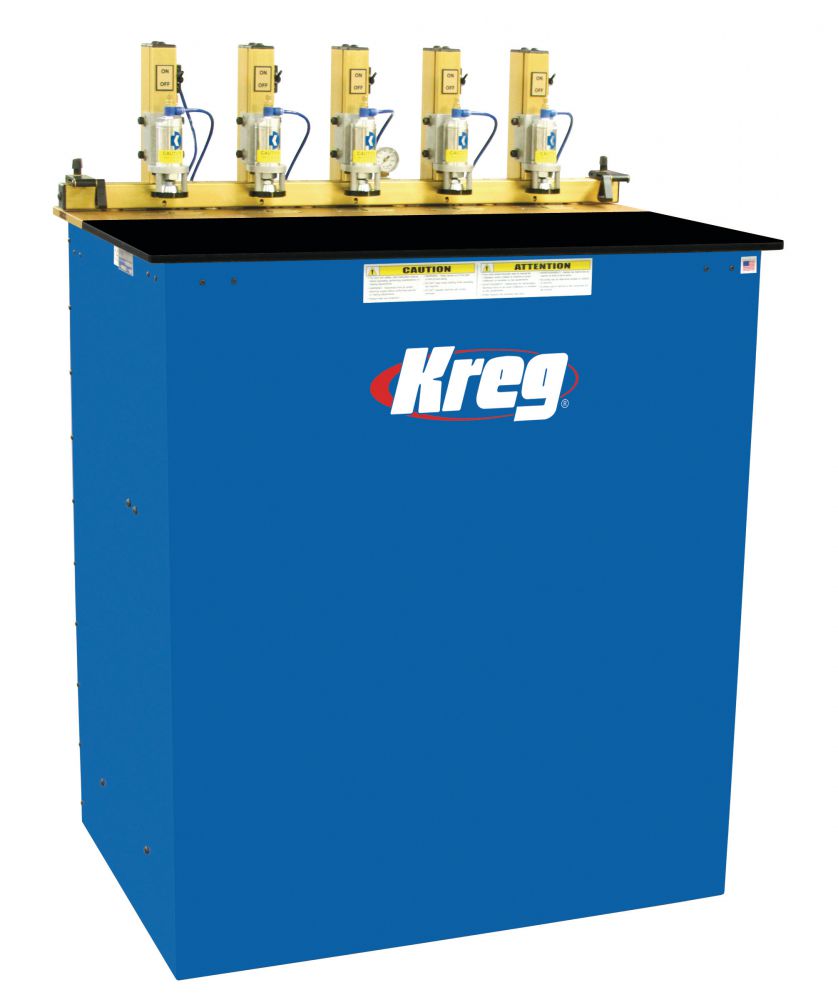

• Dimensions: 50"H x 36"W x 24"D (40" table height), 350 lbs.
• Warranty: 5 years

Kreg DK5100 Owners Manual
