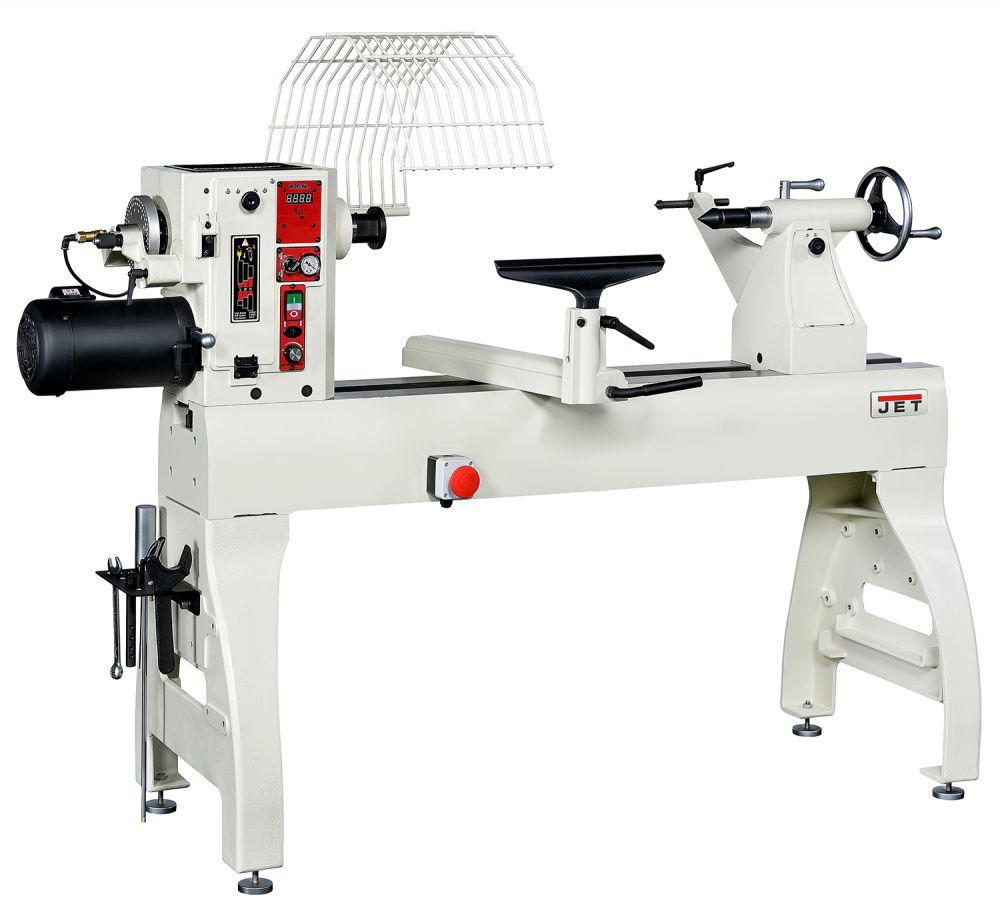

Jet JWL-2442-M Variable Speed Wood Lathe

JET Variable Speed Wood Lathe

ref: JWL-2442-M

Variable Speed Woodturning Lathe 230v

• Variable Speed Lathe 230v
• Swing over bed 610mm
• Swing over toolrest base 490mm – Centre distance 1067mm
• Equipped with two sturdy legs that allow the lathe to be perfectly positioned and balanced.
• The sliding head is equipped with a heavy locking device that allows it to work at the end of the bench.

• Swing over bed 610mm
• Swing over toolrest base 490mm
• Centre distance 1067mm
• Number of mechanical speeds 3
• Spindle speed range L 0-910 rpm
• Spindle speed range M 0-2000 rpm
• Spindle speed range H 0-3500 rpm
• Spindle nose M33 x 3.5 DIN 800
• Headstock spindle taper. MT2
• Spindle index lock 14 x 25.7°, 36×10°,48×7.5°
• Spindle hole diameter 15.8mm
• Tailstock spindle taper MT2
• Tailstock hole diameter 9.5mm
• Tailstock ram travel 115mm
• Centre above floor 1120mm
• Overall for (LxWxH) 2260 x 710 x 1651mm
• Leg footprint (LxW) 1600 x 610mm
• Net weight 395kg
• Mains 1~230V, PE, 50Hz
• Output power2.2kW (3HP) S1
• Reference current 12A
• Extension cord (H07RN-F):3×1.5mm
• Installation fuse protection 16A
• Isolation class I
• Compressed air supply 6.5bar (90psi)
