Jet JWL-1840EVS-M WOOD LATHE

X
Product Code: JET/JWL-1840EVS-M
Brand: JET
Low Stock - Please Call For Availability
Was £3,755.20 Inc. VAT
Now £3,248.60!
£2,707.17 Exc. VAT
COLLECTION
DELIVERY
Qty
JET

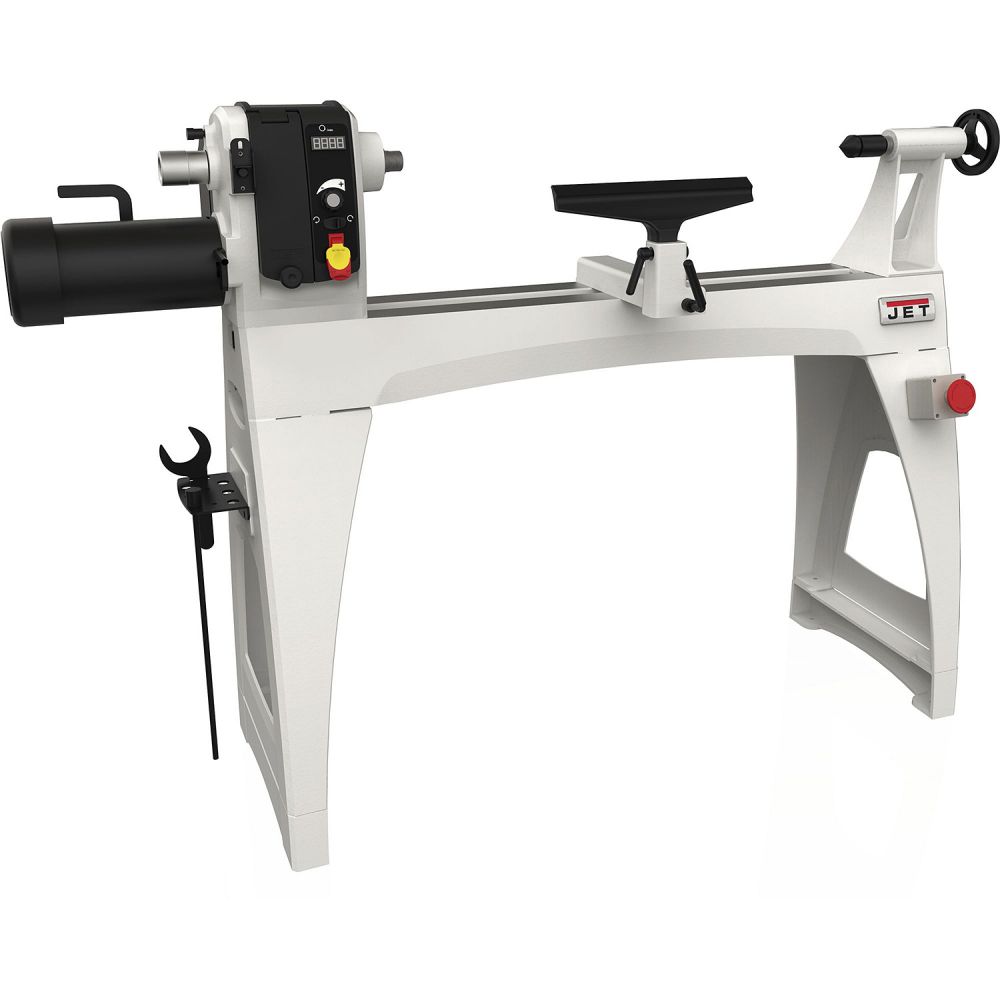

JET JWL-1840EVS-M Wood Lathe



Key Features

  • Machine height ergonomically adjustable using the 100mm cast iron risers and levelling feet supplied
  • Emergency stop switch can be positioned as needed with the magnet on the machine bed

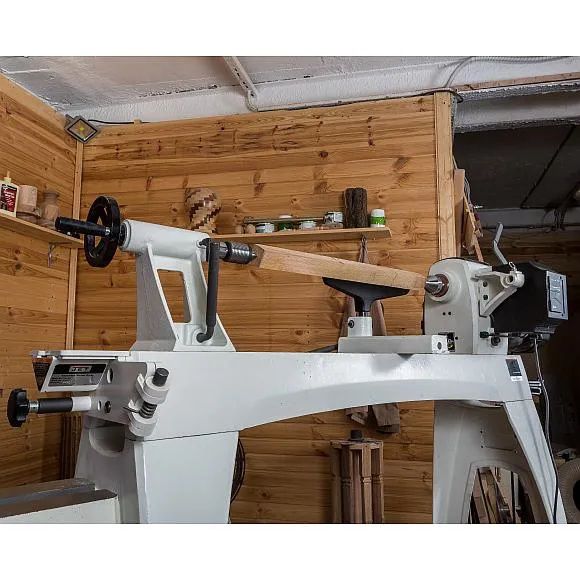

  • The headstock moves across the whole machine bed and pivots by 360° for maximum versatility
  • The main spindle is supported on three bearings for greater rigidity and load-bearing capacity

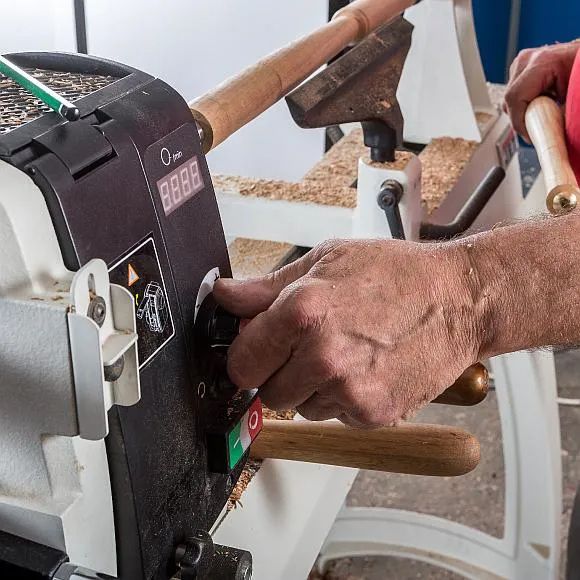

  • Infinitely variable, adjustable speeds using a frequency converter, from 40–3'200rpm with 2 belt speeds

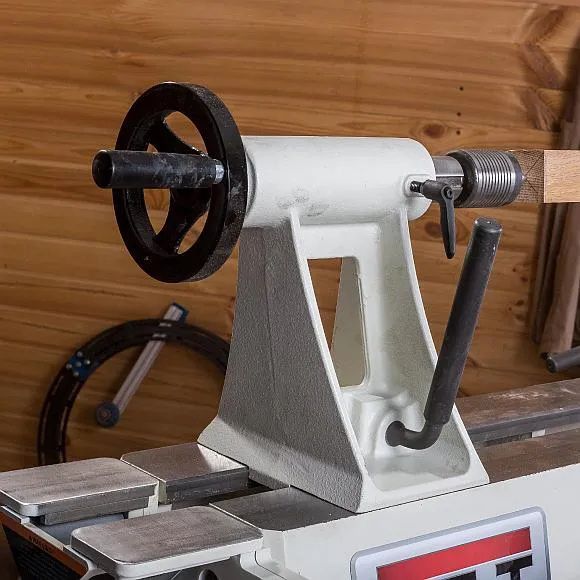

  • Tailstock with heavy-duty Acme thread, quill with anti-rotation key, with mm scale
  • Double-wedge clamping for tool rest and extension, load-bearing, efficient, holds position securely
  • Spindle lock for two-handed changing of the faceplate and turning chuck
  • The 36-hole spindle indexing device integrated in the pulley enables many types of decorative work



Technical details

  • Motor (V/kW): 230/2.4
  • Swing over bed (mm): 470
  • Swing over tool rest base (mm): 360
  • Centre distance (mm): 970 (1'025 with short trading grains)
  • Spindle speeds (rpm): 40–3'200, variable
  • Spindle nose: M33×3.5
  • Spindle index lock: 36×10°
  • Headstock spindle taper: MT2
  • Tailstock spindle taper: MT2
  • Tailstock hole diameter (mm): 9
  • Tailstock ram travel (mm): 108
  • Steel support (ø/mm): 350/25.4
  • Centre above floor min/max (mm): 995/1'130
  • Dimensions (mm): 1'854×508×1'334
  • Weight (kg): 190



Specification

  • Motor KW: 230/2.4
  • Spindle Speeds: 40–3'200, variable
  • Spindle Nose: M33×3.5
  • Swing Over Bed: 470
  • Dimensions L x W x H: 1'854×508×1'334



Jet JWL-1840VS Lathe Owners Manual
