Jet JWL-1640EVS-M WOOD LATHE

X
Product Code: JET/JWL-1640EVS-M
Brand: JET
In Stock
Was £3,423.60 Inc. VAT
Now £2,989.74!
£2,491.45 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Qty
JET

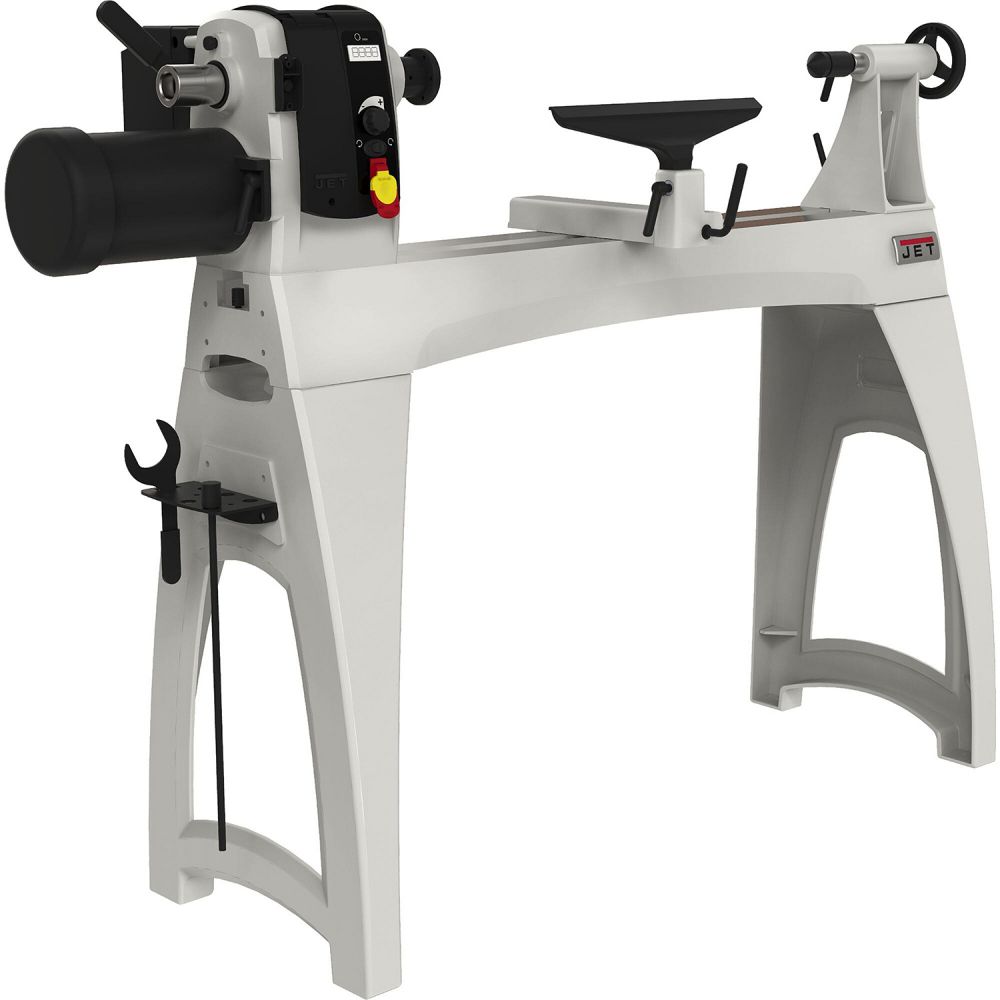

JET Wood Lathe - JWL-1640EVS-M



Key Features

  • The headstock moves across the whole machine bed and pivots by 360° for maximum versatility
  • The main spindle is supported on three bearings for greater rigidity and load-bearing capacity
  • Infinitely variable, adjustable speeds using a frequency converter, from 40–3'200 rpm with 2 belt speeds

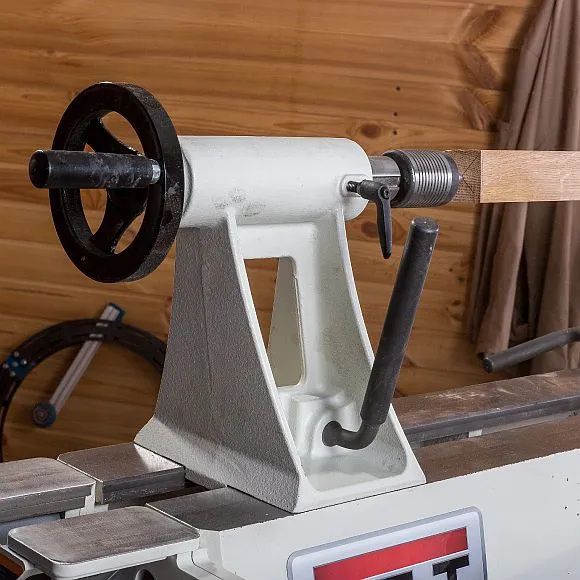

  • Tailstock with heavy-duty Acme thread, quill with anti-rotation key, with mm scale
  • Double-wedge clamping for tool rest and extension, load-bearing, efficient, holds position securely
  • Spindle lock for two-handed changing of the faceplate and turning chuck
  • Integrated spindle indexing device 36×10° for hole patterns and decorative work



Technical details

  • Motor (V/kW): 230/1.8
  • Swing over bed (mm): 418
  • Swing over tool rest base (mm): 325
  • Centre distance (mm): 940 (990 with short trading grains)
  • Spindle speeds (rpm): 40–3'200, variable
  • Spindle nose(mm): M33×3.5
  • Spindle index lock: 36×10°
  • Headstock spindle taper: MT2
  • Tailstock spindle taper: MT2
  • Tailstock hole diameter (mm): 9
  • Tailstock ram travel (mm): 108
  • Steel support (ø/mm): 350/25.4
  • Dimensions (mm): 1'854×508×1'334
  • Weight (kg): 170



Specification

  • Motor KW: 230/1.8
  • Spindle Speeds: 40–3'200, variable
  • Spindle Nose: M33×3.5
  • Swing Over Bed: 418
  • Dimensions L x W x H: 1'854×508×1'334
