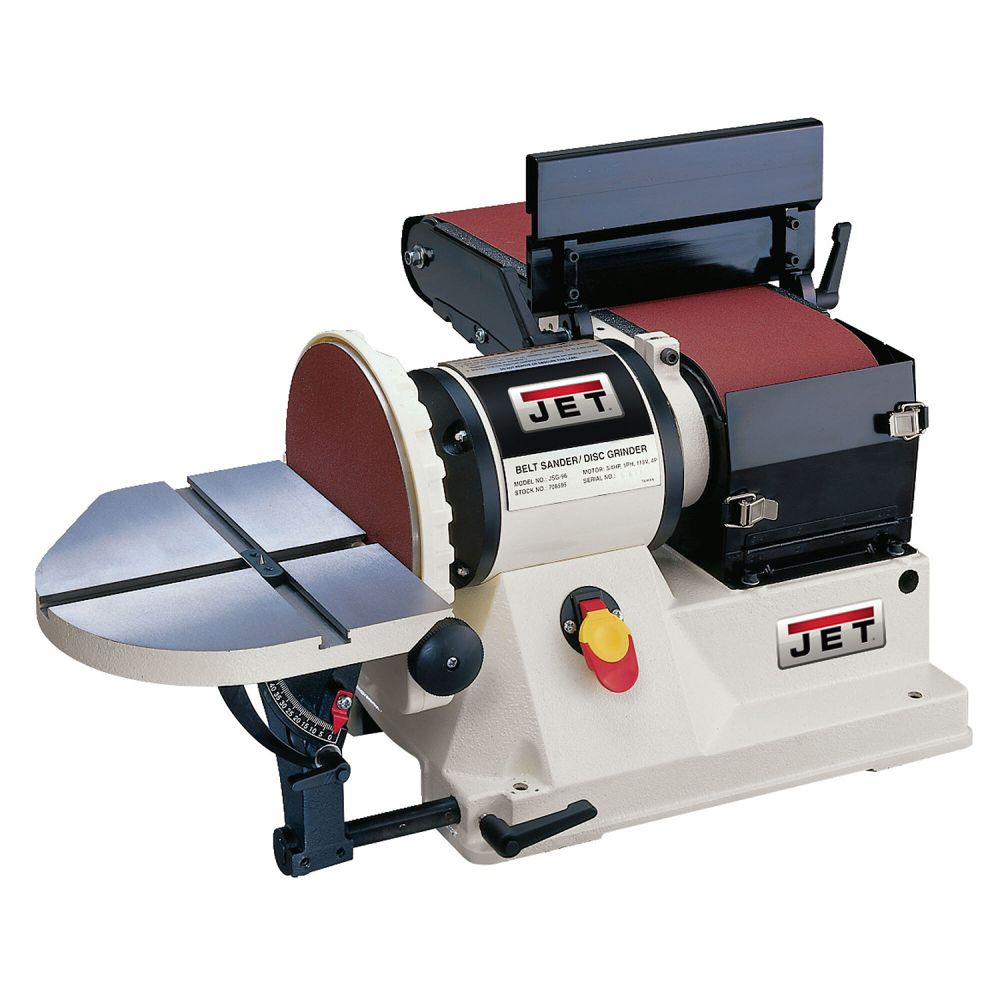

Jet JSG-96-M COMBINATION DISC AND BELT SANDER 10" x 6"

JET COMBINATION DISC AND BELT SANDER 10" x 6"
Ref: JSG-96-M

• Large cast iron table has preset stops at 90° and 45° to let you use the belt sander vertically, horizontally or anywhere in between
• Exclusive dual thumbscrew belt tracking adjustment locks to keep belt on track during use
• Graphite covered steel platen runs cooler increasing machine and belt life
• Specially designed belt guard allows full use of the 150mm belt width and length
• Drive drum is rubber-coated for a better grip on the sanding belt resulting in less slippage

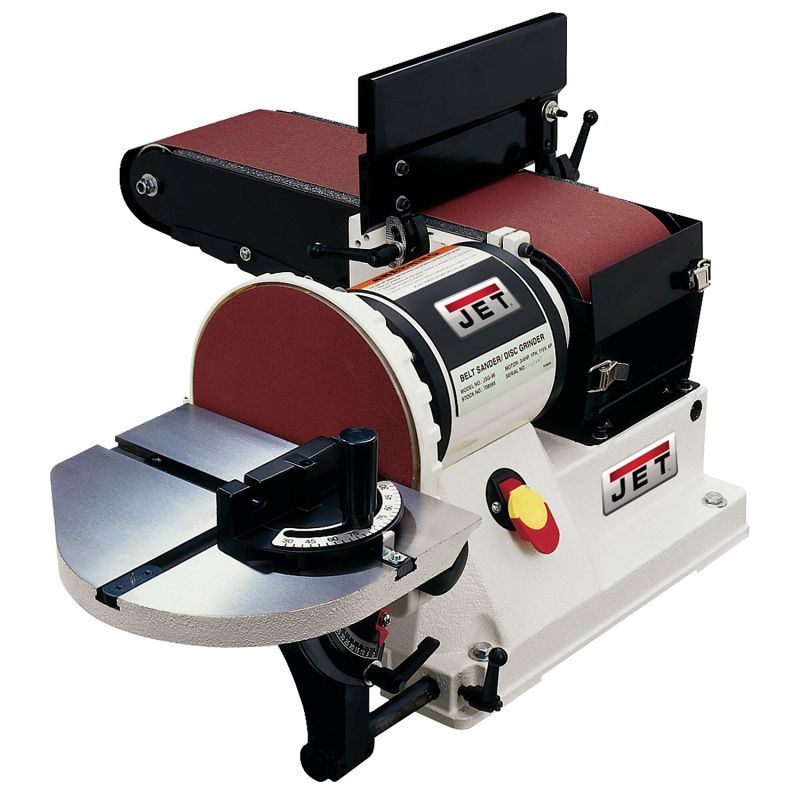

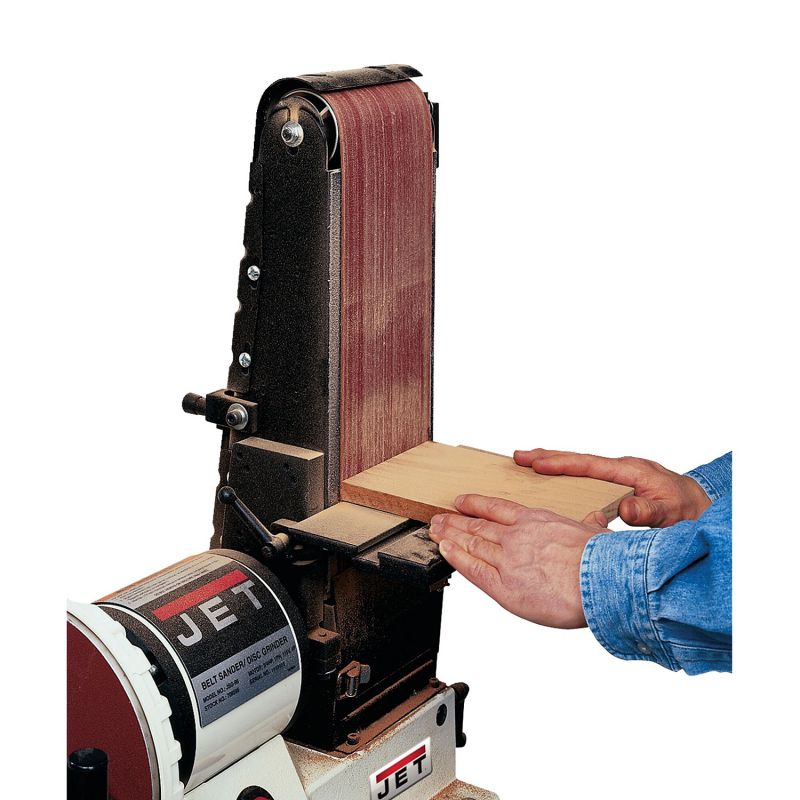

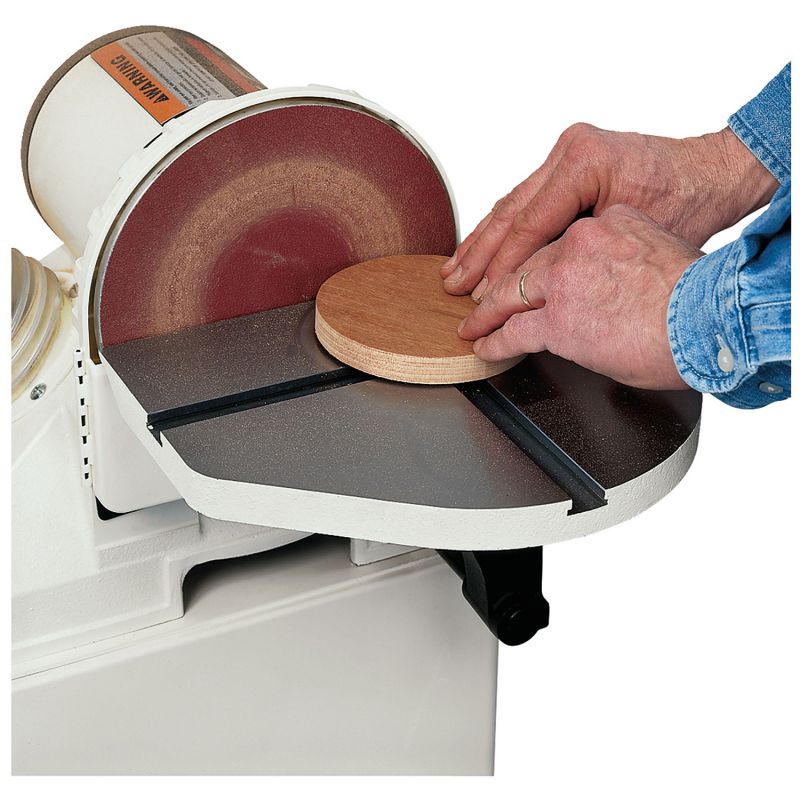

The disc sander is fully enclosed and has a finely ground table with a precision alloy mitre fence. The table can be tilted through 45° with preset stops at 45° and 90°. Along the top of the table are two T slots machined 90° apart which will accommodate either the mitre fence or the circle sanding point (supplied as standard). The 150mm wide belt can be used in either the vertical or horizontal plane and has a fully adjustable and well machined table from which to work in the upright position. A graphite slipper plate sits directly behind the sanding area, reducing friction and ensuring greater belt life. A 100mm dust extraction outlet is positioned behind the machine; this extracts from both sides of the machine without the need for hose re-positioning. The sander can be mounted straight onto a bench or onto the optional closed stand but please note that it is supplied as standard in bench mounting form; if it is to be floor standing the optional closed stand (which also incorporates retractable wheels allowing the sander to be easily moved when not in use) will need to be ordered.

Supplied with an abrasive belt and disc, mitre fence, circle sanding accessory and service tools.

• Motor (V/kW): 230/1.0
• Sanding disc speed (rpm): 1'400
• Sanding belt speed (m/s): 10
• Sanding disc diameter (ø-mm): 230
• Sanding belt dimensions (mm): 150×1'220
• Sanding disc table tilt: 45° down
• Sanding belt table tilt: 45° down
• Sanding disc table size (mm): 250×300
• Sanding belt table size (mm): 140×280
• Dust port (ø-mm): 100
• Dimensions (mm): 780×420×730
• Weight (kg): 41

• Motor KW: 230/1.0
• Belt Speed: 10 m/s
• Disc Diameter: 230
• Disc Speed: 1400 RPM
• Dimensions L x W x H: 780×420×730
