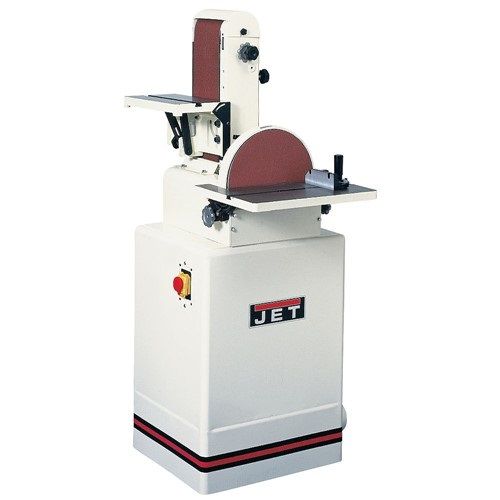

Jet JSG-31A COMBINATION DISC/BELT SANDER

JET COMBINATION DISC AND BELT SANDER
Ref: JSG-31A

• A powerful motor powers both sanders with plenty of power to complete even the heaviest jobs
• Compact and space-saving with motor in the base
• The sturdy cast-iron disc sander platen can be tilted down 45° ( or up 15°)
• Convenient knob for easy adjustment of the belt tension
• Mitre gauge for more precision
• Preset table angle locking positions at 90° and 45°
• Sanding arm can be angled horizontally or vertically as required

• Motor (V/kW): 230/2.0
• Sanding disc speed (rpm): 1'400
• Sanding belt speed (m/s): 12
• Sanding disc diameter (ø-mm): 300
• Sanding belt dimensions (mm): 150×1'220
• Sanding disc table tilt: -45° /15°
• Sanding belt table tilt: -45° /0°
• Sanding disc table size (mm): 230×420
• Sanding belt table size (mm): 190×330
• Dust port (ø-mm): 100
• Dimensions (mm): 830×700×1'400
• Weight (kg): 124

• Motor KW; 230/2.0
• Belt Size: 150×1'220
• Belt Speed: 12 m/s
• Disc Diameter: 300
• Disc Speed; 1'400 RPM
• Dimensions L x W x H: 830×700×1'400
