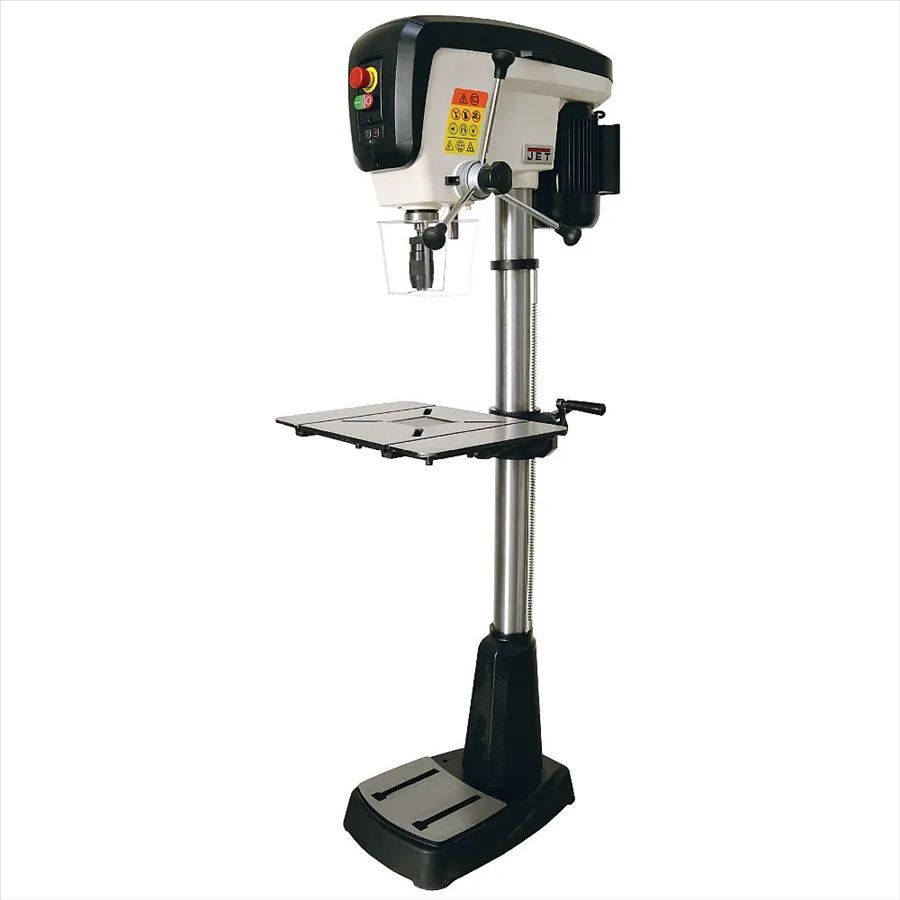

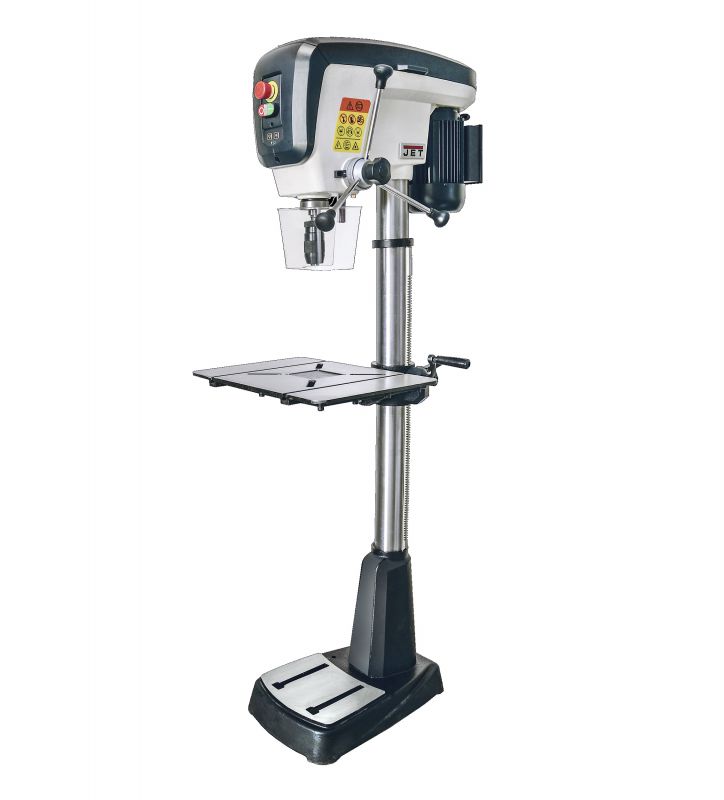

Jet JDP-17-T DRILL PRESS 400V

X
Product Code: JET/JDP-17-T
Brand: JET
Stock Due Soon
Please Call For Update
£1,496.40 Inc. VAT
£1,247.00 Exc. VAT
JET

JET DRILL PRESS 230V
Ref: JDP-17-T



Key Features

  • Heavy-duty drill press developed specifically for wood workshops
  • Extra-large, precision-planed work table with 2 T-slots and 4 table slots for even greater flexibility
  • Flat table edge designed for using clamps
  • Replaceable MDF table insert
  • 127mm drill stroke with just one turn of the handwheel, for long drill holes
  • Integrated drill depth stop for precision batch tasks
  • Efficient 1.0kW induction motor and quiet poly-v belt drive
  • One-handed belt tensioning for fast speed changes
  • Xacta-X laser system easily identifies the drill center
  • Integrated long-life LED working lamp prevents shadows
  • Large cast iron base for high stability
  • Electric drill chuck protector, belt guard protection and emergency stop as standard



Technical details

  • Motor (V/kW): 400/1.0
  • Spindle speed range (rpm): 180 – 2'900
  • Number of spindle speeds: 16
  • Spindle fixture: MT2
  • Spindle travel (mm): 127
  • Distance spindle to column (mm): 215
  • Spindle distance to table (max., mm): 763
  • Spindle distance to base (max., mm): 1'194
  • Table size (mm): 356×483
  • Table tilt: 90° left/90° right 90°
  • Miter t-slot/distance (mm): 13/270
  • Column diameter (mm): 80
  • Dimensions (mm): 723×483×1'679
  • Weight (kg): 86

Specification
  • Motor KW: 400/1.0
  • Spindle Speeds: 16
  • Spindle Travel: 127
  • Spindle Speed Range: 180 – 2'900
  • Table Size: 356×483
  • Dimensions L x W x H: 723×483×1'679
