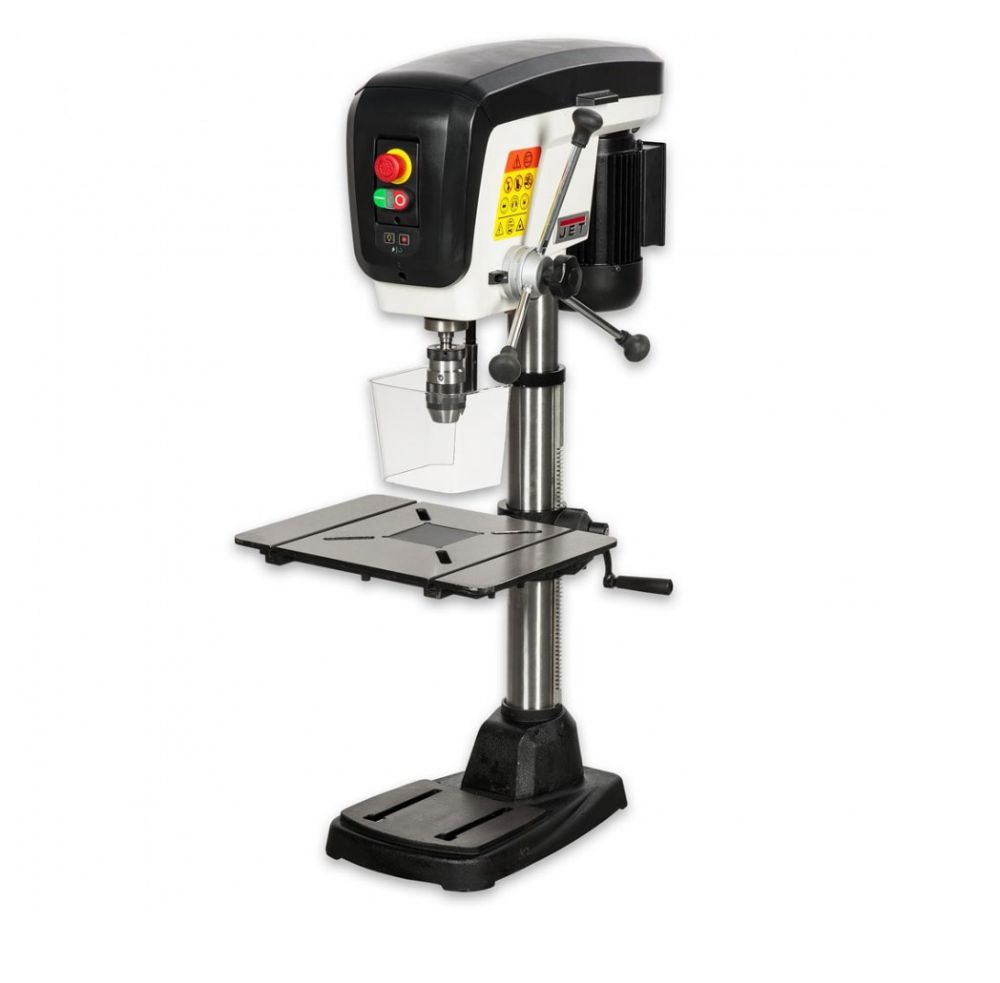

Jet JDP-15B-M Bench Drill Press 230V

X
Product Code: JET/JDP-15B-M
Brand: JET
Low Stock - Please Call For Availability
£991.20 Inc. VAT
£826.00 Exc. VAT
✗ COLLECTION
✗ DELIVERY
Please call to check stock availability for larger quantities
Qty
JET

JET BENCH DRILL PRESS 230V
Ref: JDP-15B-M



Key Features

  • Heavy-duty drill press developed specifically for wood workshops

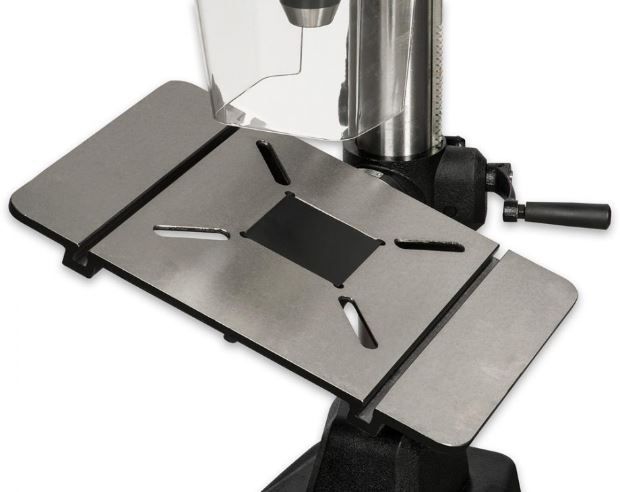

  • Extra-large, precision-planed work table with 2 T-slots and 4 table slots for even greater flexibility
  • Flat table edge designed for using clamps
  • Replaceable MDF table insert
  • Integrated drill depth stop for precision batch tasks
  • Efficient 1.0kW induction motor and quiet poly-v belt drive
  • One-handed belt tensioning for fast speed changes
  • Xacta-X laser system easily identifies the drill center
  • Integrated long-life LED working lamp prevents shadows
  • Large cast iron base for high stability

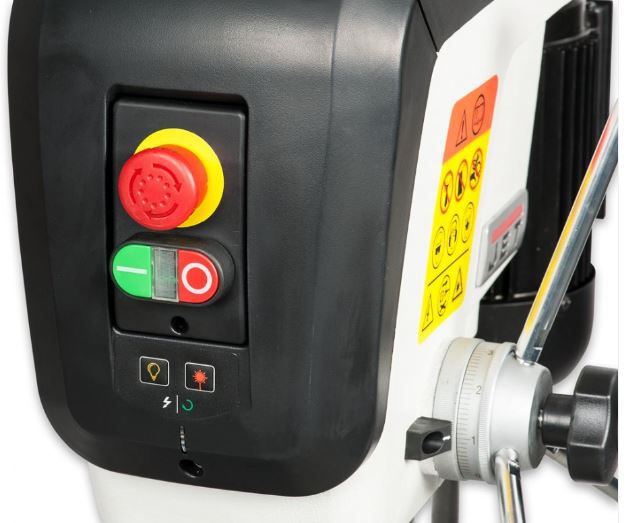

  • Electric drill chuck protector, belt guard protection and emergency stop as standard


Technical details

  • Motor (V/kW): 230/1.0
  • Spindle speed range (rpm): 180 – 2'900
  • Number of spindle speeds: 16
  • Spindle fixture: MT2
  • Spindle travel (mm): 80
  • Distance spindle to column (mm): 190
  • Spindle distance to table (max., mm): 470
  • Spindle distance to base (max., mm): 680
  • Table size (mm): 320×454
  • Table tilt; 90° left/90° right
  • Miter t-slot/distance (mm): 13/270
  • Column diameter (mm): 73
  • Dimensions (mm): 723×483×1'115
  • Weight (kg): 71

Specification
  • Motor KW: 230/1.0
  • Spindle Travel: 80
  • Spindle Speed Range: 180 – 2'900
  • Spindle Feeds: 16
  • Table Size: 320×454
  • Dimensions L x W x H: 723×483×1'115
