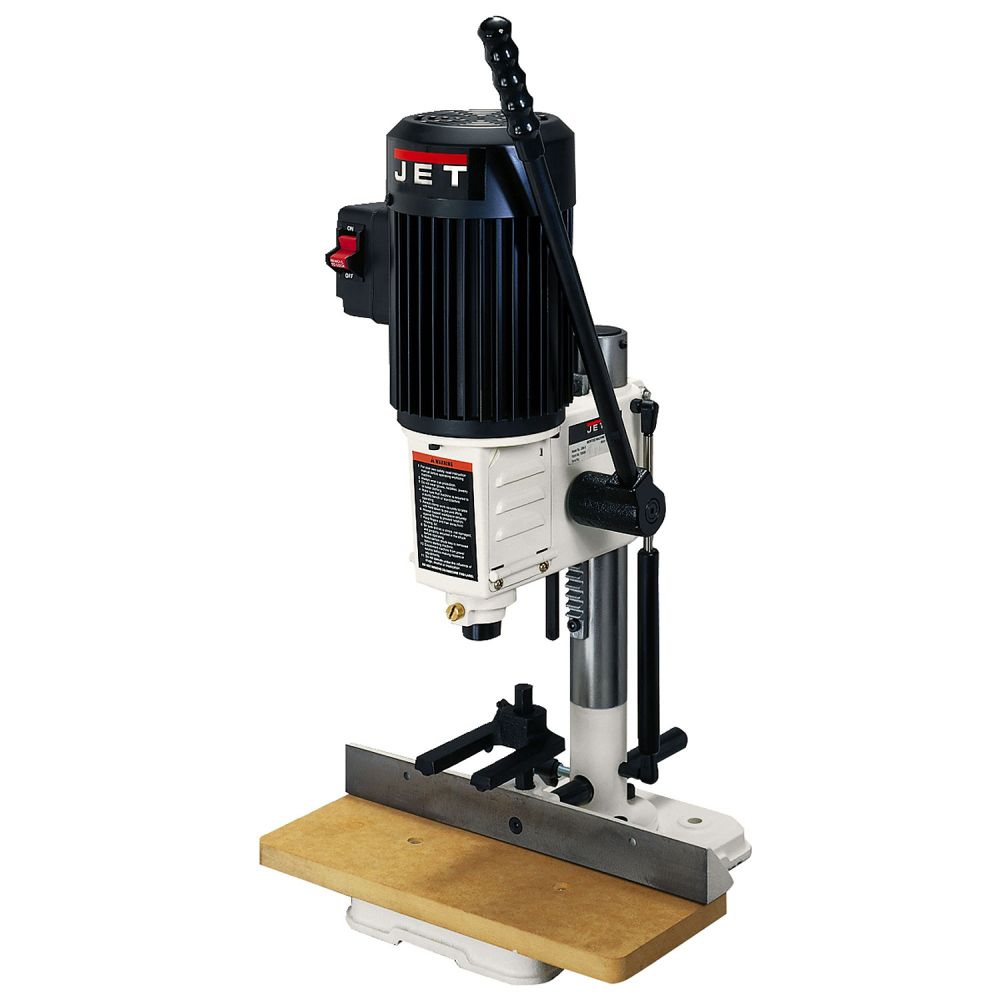

Jet JBM-5 Bench Top Morticer
Product Code: JET/JBM-5
Brand: JET
Low Stock - Please Call For Availability
£571.20 Inc. VAT
£476.00 Exc. VAT
JET Hollow Chisel Morticer - (Ref: JBM-5)
Key Features
- Compact, mobile and easy to use in the workshop or on a building site
- Heavy-duty cast iron construction for precision working
- With height adjustment via the toothed rack and gas pressure balancer cylinder
- Convertible drill lever
- Adjustable fence, workpiece hold-down and drill depth stop
- Table covering made from MDF, easy to replace
- Delivered without chisel pictured
Strengths and benefits

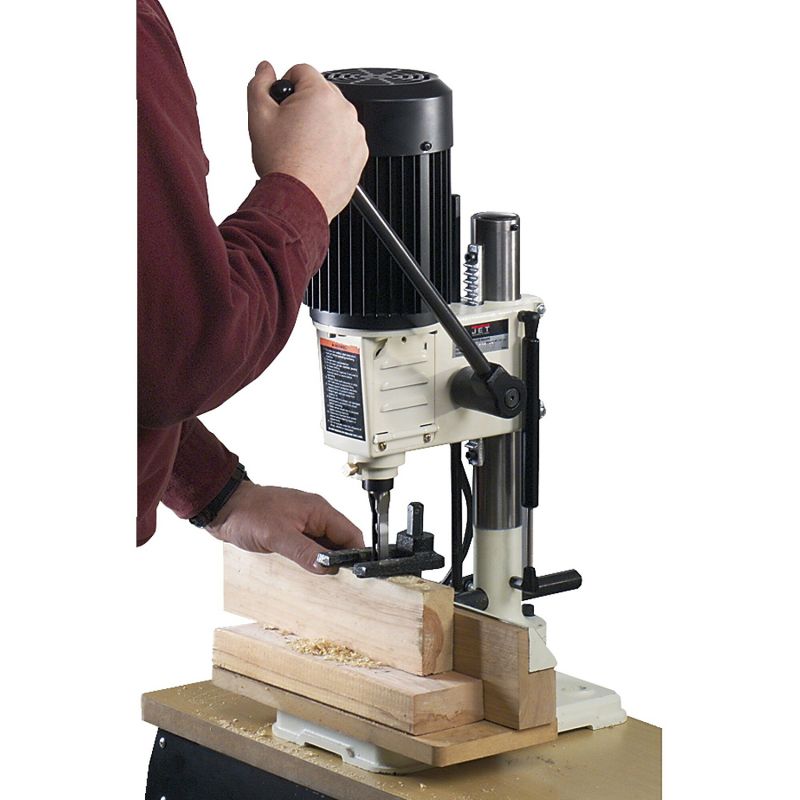

- The benchtop morticer JBM-5 is ideal for a basic mortice production and offers reliability and accuracy similar to that of a professional machine. Despite its fewer opportunities of mortice depth and maximal chisel diameter, this machine is still a good power tool for mass production of mortices. The morticer is compact, mobile and easy to use in the workshop or on a building site. Sophisticated mechanisms help to make your work easier. A gas spring compensates for the weight of the engine. There is a gear mechanism with a guidance system and a long lever for simple morticing. Vertical clamping of workpiece. Simple and accurate clamping of chisel. To clamp the drill with a shorter stem, you can buy an extension for three-jaw chuck as an optional accessory.
- The hollow square mortice chisels are ideal for production of square mortices. The drill inside a square sleeve first drills a small round hole and the square sleeve then knocks out sharp edges around the hole. The drill is spindle driven whilst the sleeve is stationary. The corners are knocked out thanks to the stroke of special spikes, which drive into the material.
Specification
- Power Input / Output (230 V): 700 / 350 W
- Spindle speeds (rpm): 1450
- Shank Size 5/8" (with bush) or 3/4" (without bush)
- Max. chisel size (mm): 12×12
- Max. bore size diameter (mm): 10
- Max. workpiece height (mm): 105
- Max. workpiece height with an extension (mm, optional): 155
- Max. chisel stroke (mm): 120
- Table size (mm): 345×150
- Centre of chisel to back fence (mm): 90
- Dimensions of the workpiece stop (mm): 345×90
- Dimensions (mm): 370×350×750
- Weight (kg): 23
JBM-5 Benchtop Morticer Operating Manual.pdf
Jet JBM-5 Mortiser Parts List
