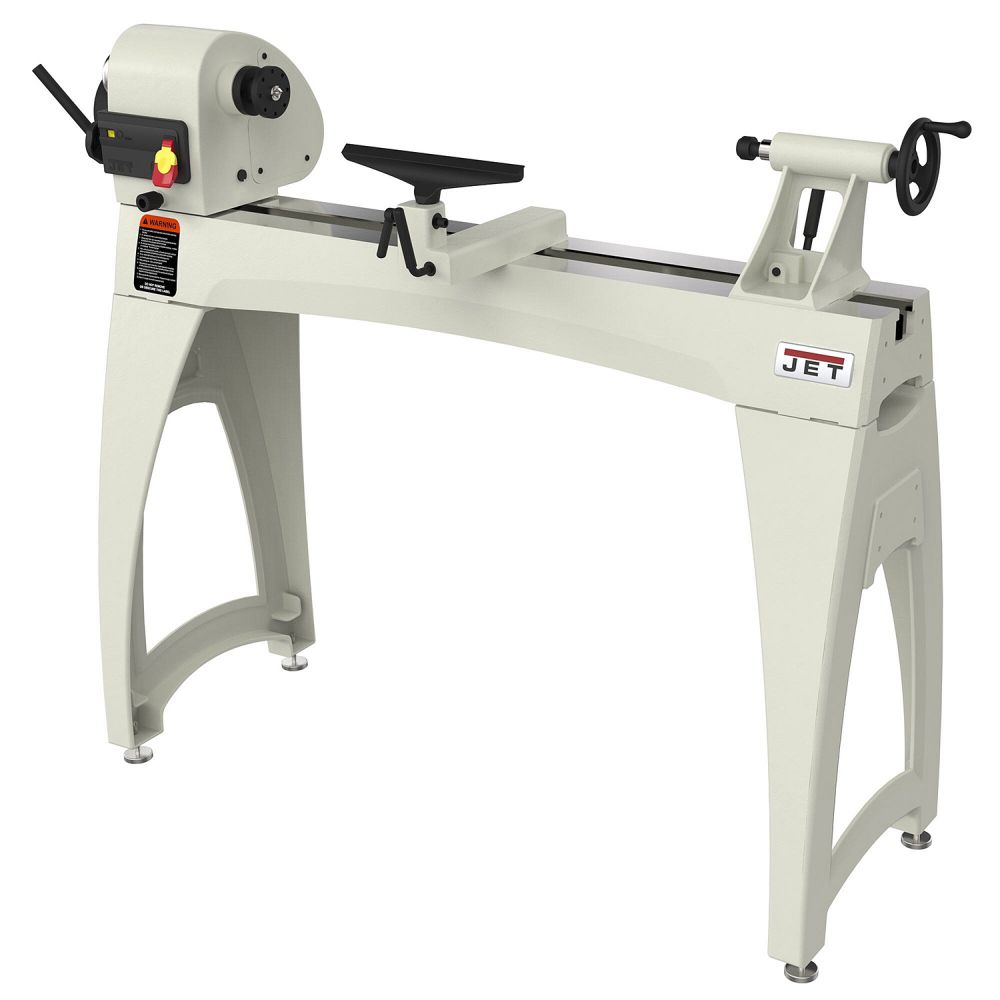

JET Wood Lathe JET JWL-1440VS-M

JET Wood Lathe
Ref: JWL-1440VS-M

• Heavy, extra-wide cast iron machine bed for the ultimate in smooth operation and stability when working on unbalanced pieces

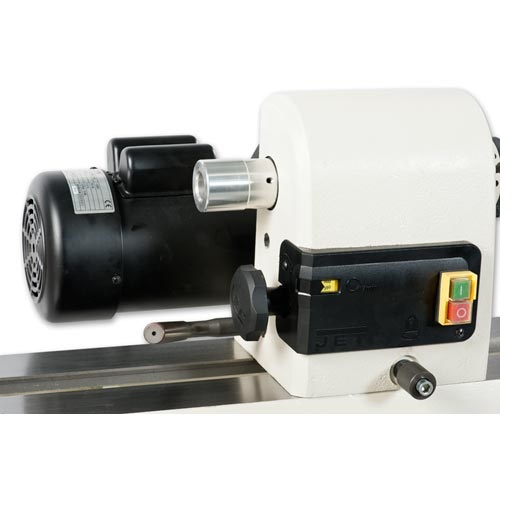

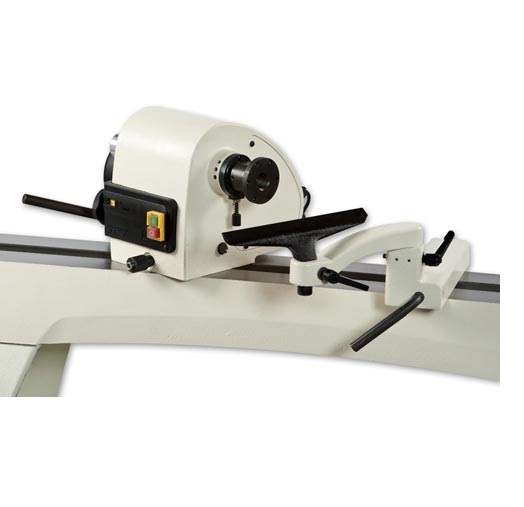

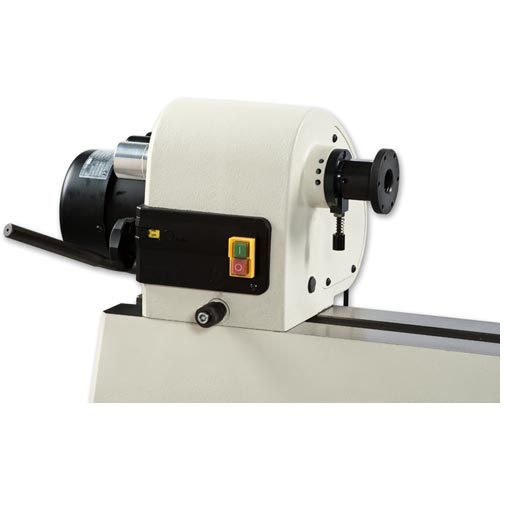

• Headstock moves across the entire machine bed, pivots by 360° with locking positions at 0° /30° /60° /90° /135° /180° /270°

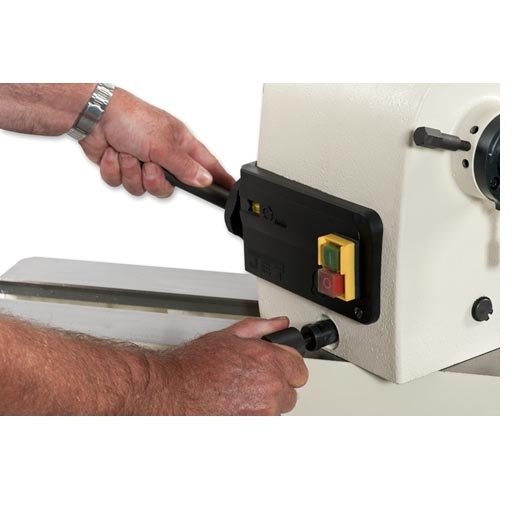

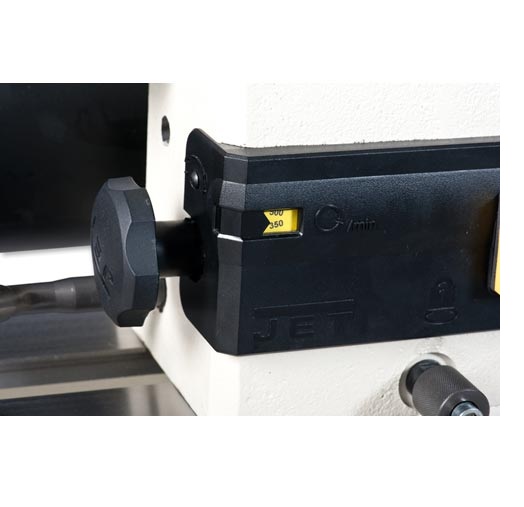

• Infinitely variable speed control with twist handle at the headstock end, infinitely adjustable from 280 to 2'500rpm

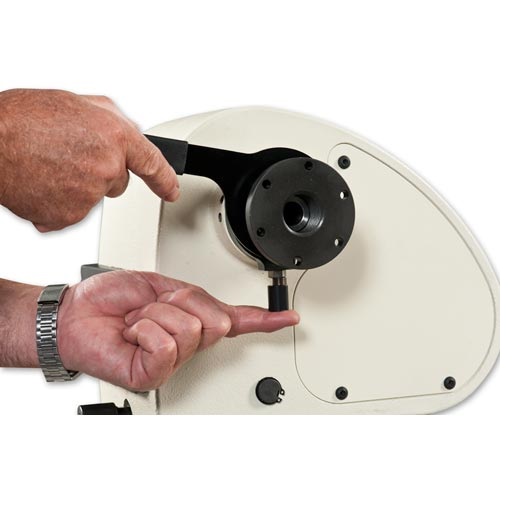

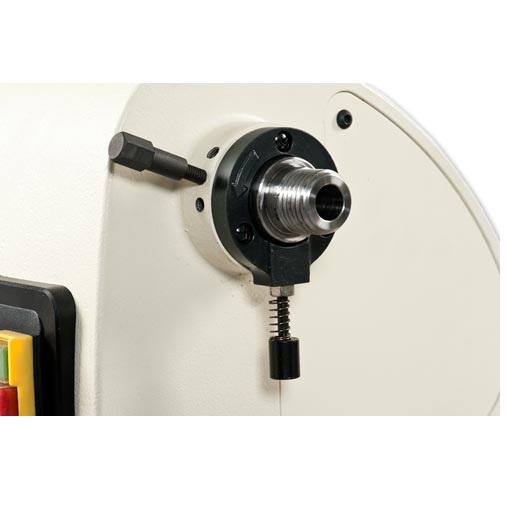

• Spindle lock on the front of the headstock to easily change the faceplate and turning chuck

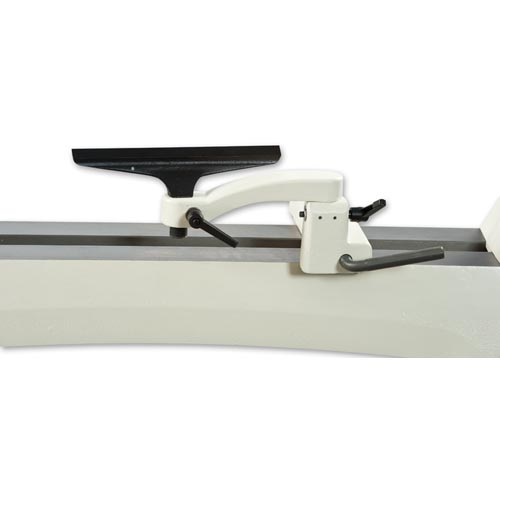

• Double-wedge clamping for tool rest and extension, load-bearing, efficient, holds position securely

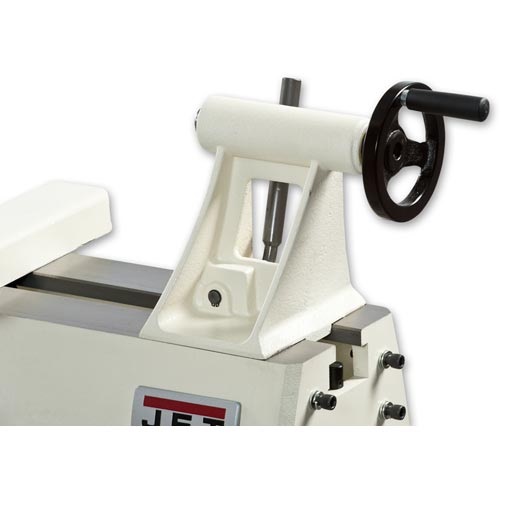

• Tailstock with heavy-duty Acme thread, 108mm quill stroke with scale, 9mm through-hole
• Integrated spindle indexing device 36×10°

• Motor (V/kW): 230/1.3
• Swing over bed (mm): 370
• Swing over tool rest base (mm): 280
• Centre distance (mm): 1'016
• Spindle speeds (rpm): 280–2'500, variable
• Spindle nose: M33×3.5

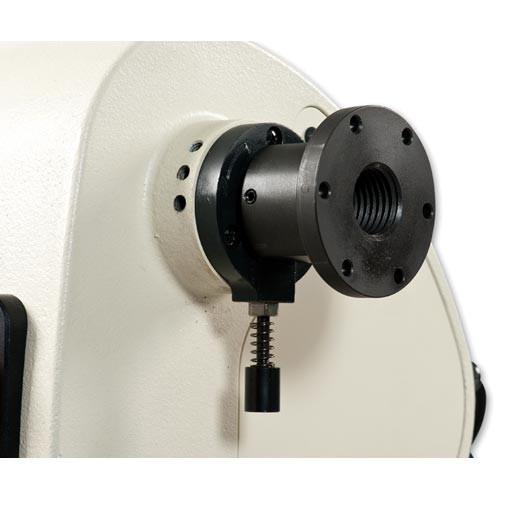

• Spindle index lock: 36×10°
• Headstock spindle taper: MT2
• Tailstock spindle taper: MT2
• Tailstock hole diameter (mm): 9
• Tailstock ram travel (mm): 108
• Steel support (ø/mm): 300/25.4
• Dimensions (mm): 1'850×535×1'250
• Weight (kg): 165
