Holzmann R455B Oscillating Wide Belt Sander 415v

X
Product Code: HOL/R455B
Brand: Holzmann
Available to Order Please Call
01726 828 388
£5,279.99 Inc. VAT
£4,399.99 Exc. VAT
Holzmann

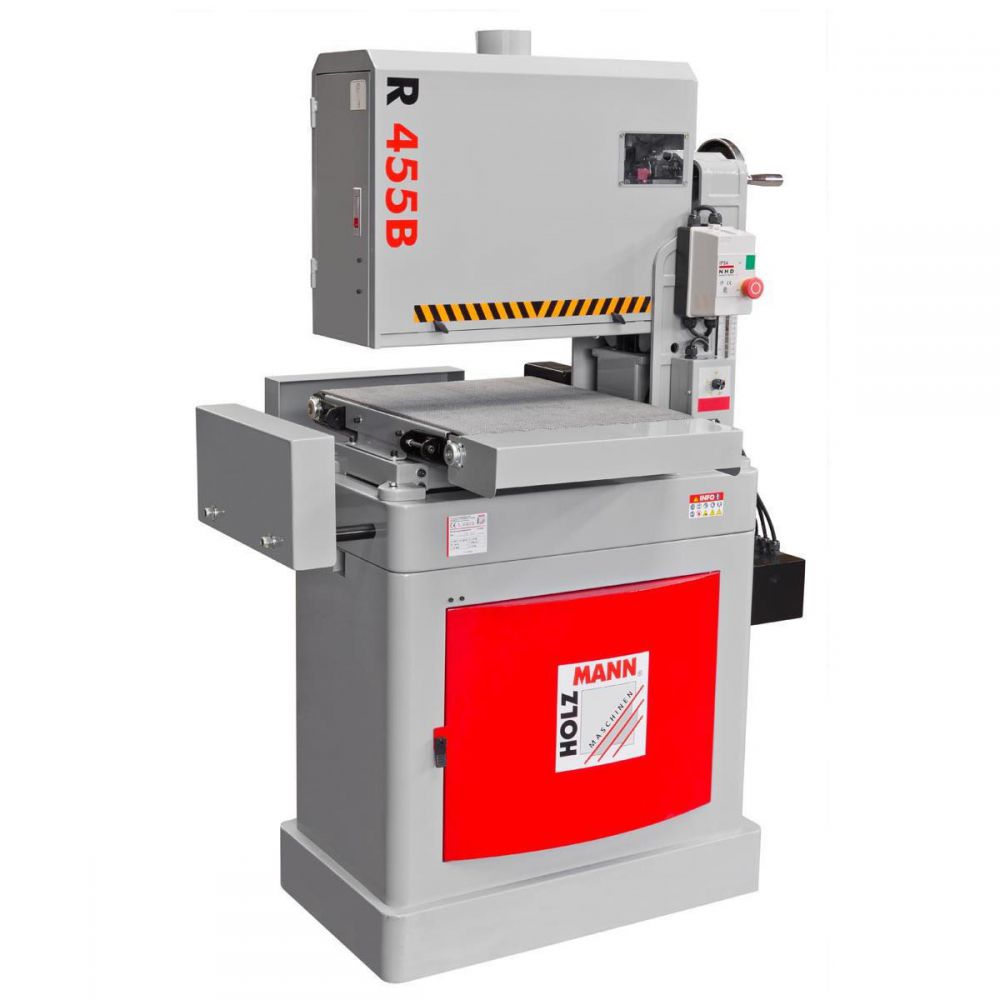

Holzmann R455B Oscillating Wide Belt Sander 415v



Key Features

  • the unilateral opening enables the processing of larger workpieces (sanding capacity up to 914 mm)
  • predestined for grinding of window frames
  • oscillation ensures perfect grinding results and maximizes grinding belt utilisation
  • quality crafted cast iron frame with extension on rails
  • feed speed stepless adjustable
  • powerful (2.2 kW) and quiet induction motor
  • depth scale (metric and inch) provides information about the thickness adjustment
  • easy and faster belt change
  • rugged, rubberized sanding drum
  • suction port (Ø100mm) on top of the machine
  • R455B 457x127mm Industrial oscillating wide belt sander + unilateral opening allows 914mm sanding width + variable feed speeds + especially designed for window frames + sturdy cast iron frame + table extensions + cabinet base + 2200W (S1) motor 415v Professional



Technical details

motor data

  • motor power s1 in W: 2200
  • feed speed: 1,8-6,7
  • speed in min-1: 1420
  • voltage: 400V / 3 / 50Hz

measurements

  • total dimensions in mm: 960x740x1550
  • dust collector port in mm: 100

workpiece measurements

  • min. workpiece thickness in mm: 6
  • max. workpiece thickness in mm: 127

grinding

  • drum diameter in mm: 82
  • max. sanding width in mm: 457
  • belt dimensions in mm: 457x1010
  • belt speed: 24

volume level and vibration

  • sound pressure level in dB(A): 82

weight

  • net weight in kg: 215
  • gross weight in kg: 247
