Holzmann KNF1 Single Blade Joining / Coupling Machine 230v
Product Code: HOL/KNF1_230V
Brand: Holzmann
In Offsite Stock - Delivery in 4 to 5 Days
£719.99 Inc. VAT
£599.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities

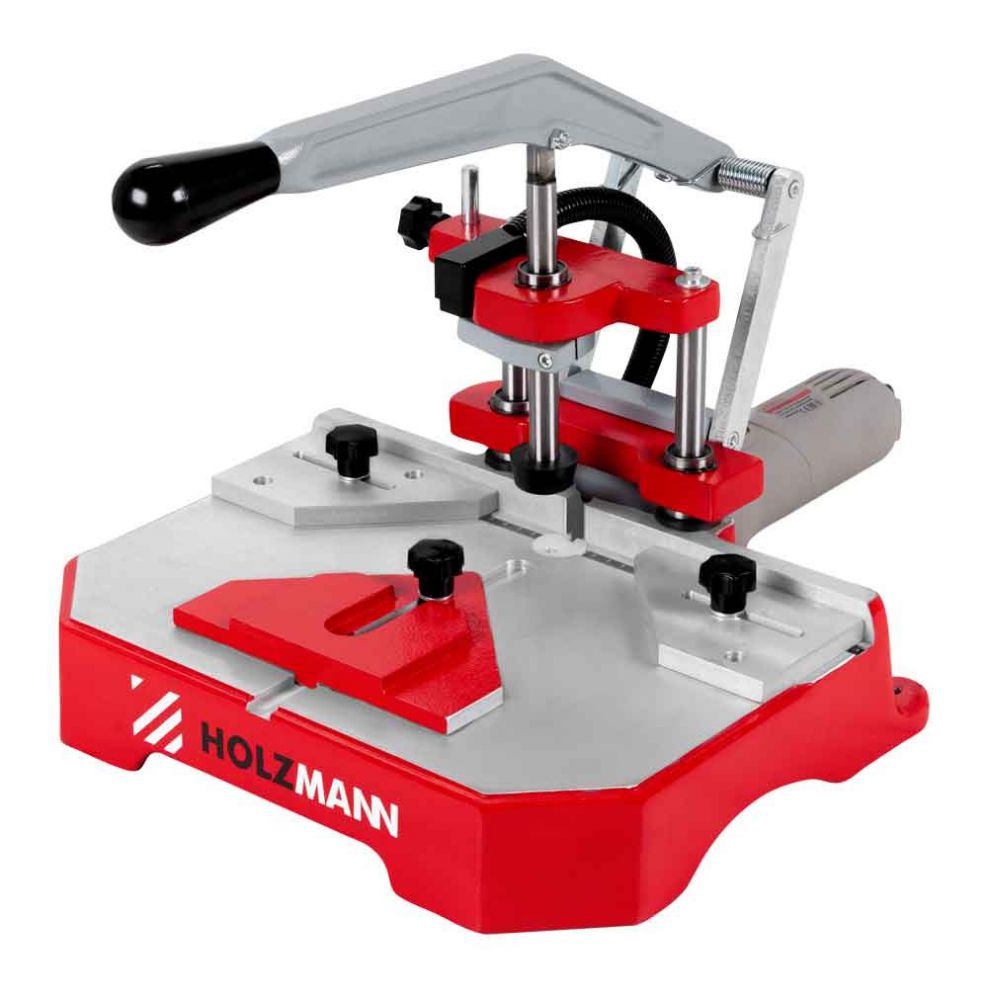

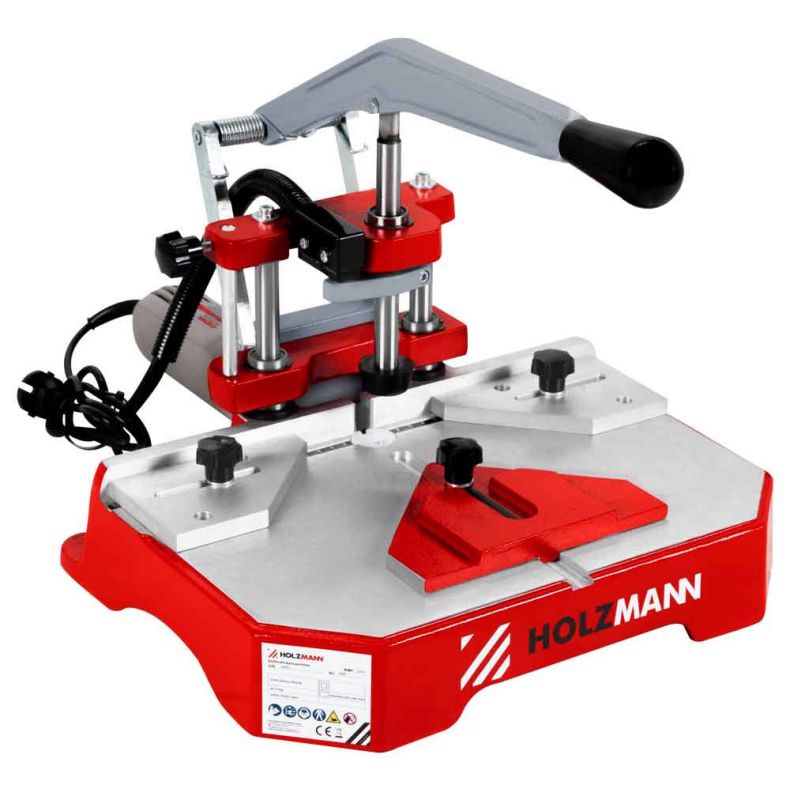

Holzmann KNF1 Single Blade Joining / Coupling Machine 230v
Key Features

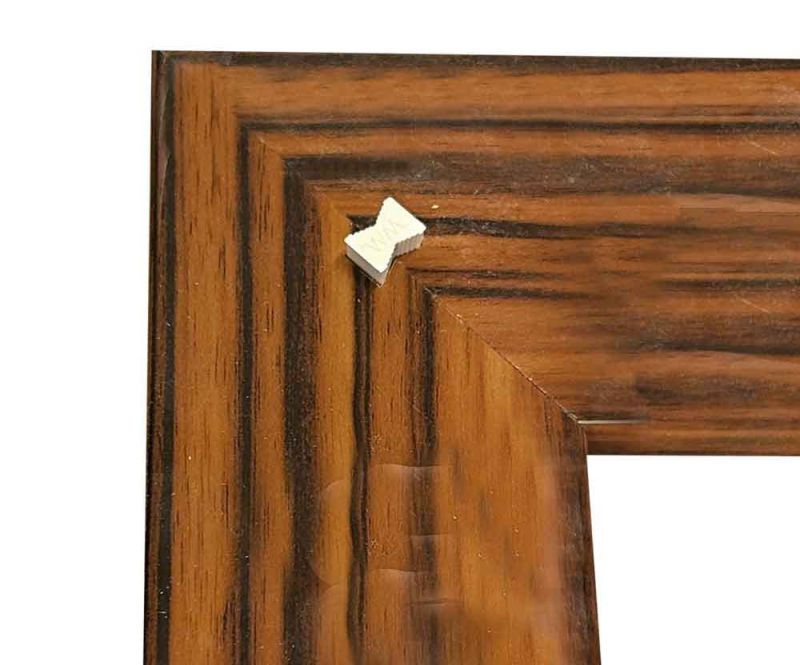

The HOLZMANN KNF1_230V single blade wooden coupling machine with one milling spindle is ideal for producing one keyway joint per working stroke. Picture frames, window frames and many other frame joints can be produced quickly and easily. Milling, insert the matching dovetail joint element and the two machined parts are joined together (no glue required).
- manual workpiece clamping
- one milling spindle
- max. profile dimension 185 mm
- Adjustable stops for workpiece positioning
Technical details
motor data
- motor power s1 in W: 600
- voltage: 230 V / 50 Hz
- appliance class: II
measurements
- table size in mm: 380 x 220
- total dimensions in mm: 400 x 550 x 370
workpiece measurements
- max. workpiece thickness in mm: 95
technical specification
- max. milling performance in mm: 55
- milling spindle speed in min-1: 12000 - 27000
volume level and vibration
- sound pressure level in dB(A): 88
weight
- gross weight in kg: 14
- net weight in kg: 11
