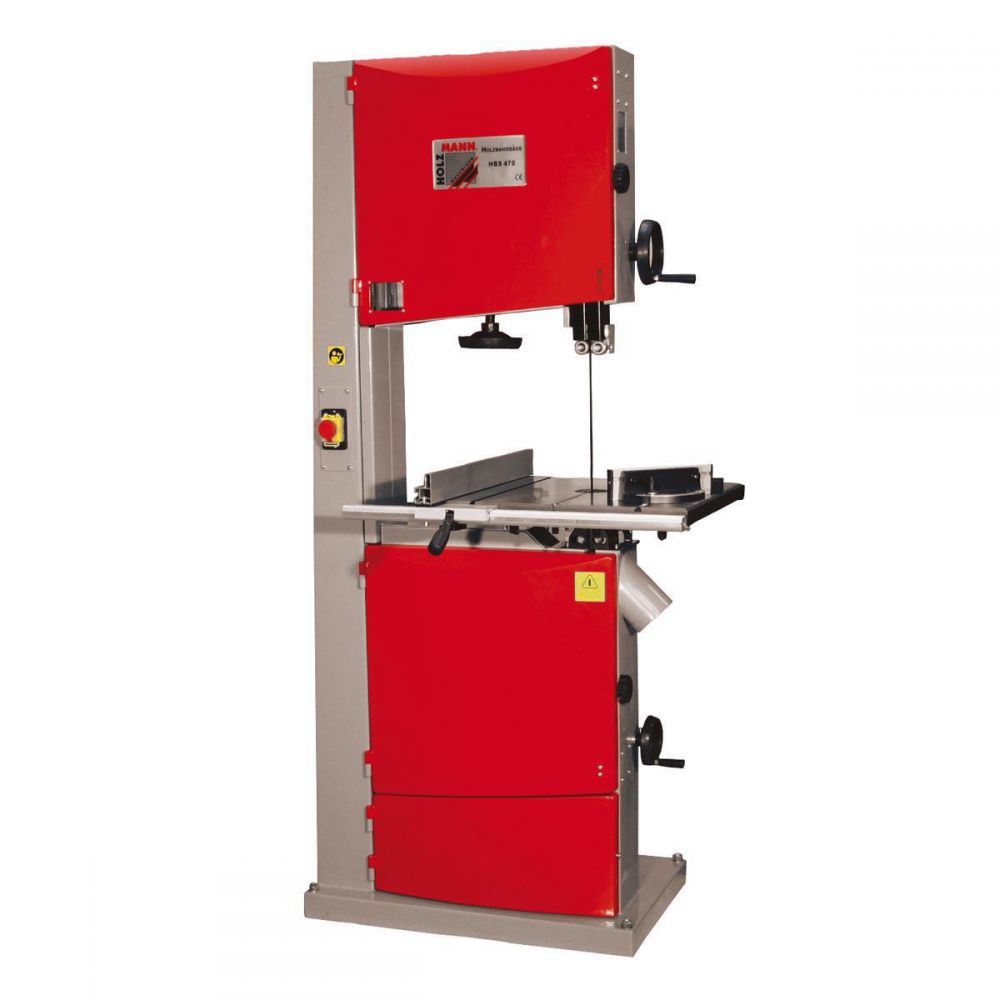

Holzmann HBS470-PROFI 470mm 2-Speed Professional Woodworking Bandsaw 230v

Holzmann HBS470-PROFI 470mm 2-Speed Professional Woodworking Bandsaw 230v

The Holzmann HBS470Profi is a heavy duty professional floor standing bandsaw that combines accuracy, durability, and performance that will meet the needs of the more demanding woodworker.

• for professional use with cast drive wheels
• Rubberized cast-spoke wheels with precision bearings enable low-noise operation
• Aluminum stop with quick release
• Measuring scale at the stop and magnifying glass for precise reading and setting
• Cutting height adjustment can be set quickly and easily using a handwheel and rack combination
• Saw band width from 6mm to 25mm possible
• Machine height: 186cm
• 2 speeds (380 or 820m / min)
• Inclined adjustment of the table from 0  -45 ° via toothed guides
• 2 connection options for suction (Ø100mm)
• Scope of delivery:1x saw band, miter ruler, stop
• HBS470PROFI 470mm Dia 2 Speed Bandsaw + 285x465mm depth/width of cut + cast iron table & band wheels + blade width 6-25mm + triple roller guides + 2 x dust outlets + mitre att + 1500W (S1) motor 230v Professional

• Motor Power: s1 1500w s6 2100w
• Outreach: 465mm
• Table Size: 530x480mm
• Dust Collector Port: 100mm
• Swivel Range: -10°- +45°
• Max. Cutting Height 90°: 285mm
• Max. Cutting Width At Parallel Fence: 390mm
• Saw Band: 3454 x 6-25mm
• Saw Band Speed: (I): 380 (II): 820 m/min
• Flywheel Diameter: 470mm

Holzmann HBS470-PROFI Woodworking Bandsaw Manual
