Holzmann FS300 4-Speed Tilting Spindle Moulder with Outrigger-Table 415v
Product Code: HOL/FS300
Brand: Holzmann
Available to Order Please Call
01726 828 388
£3,839.99 Inc. VAT
£3,199.99 Exc. VAT

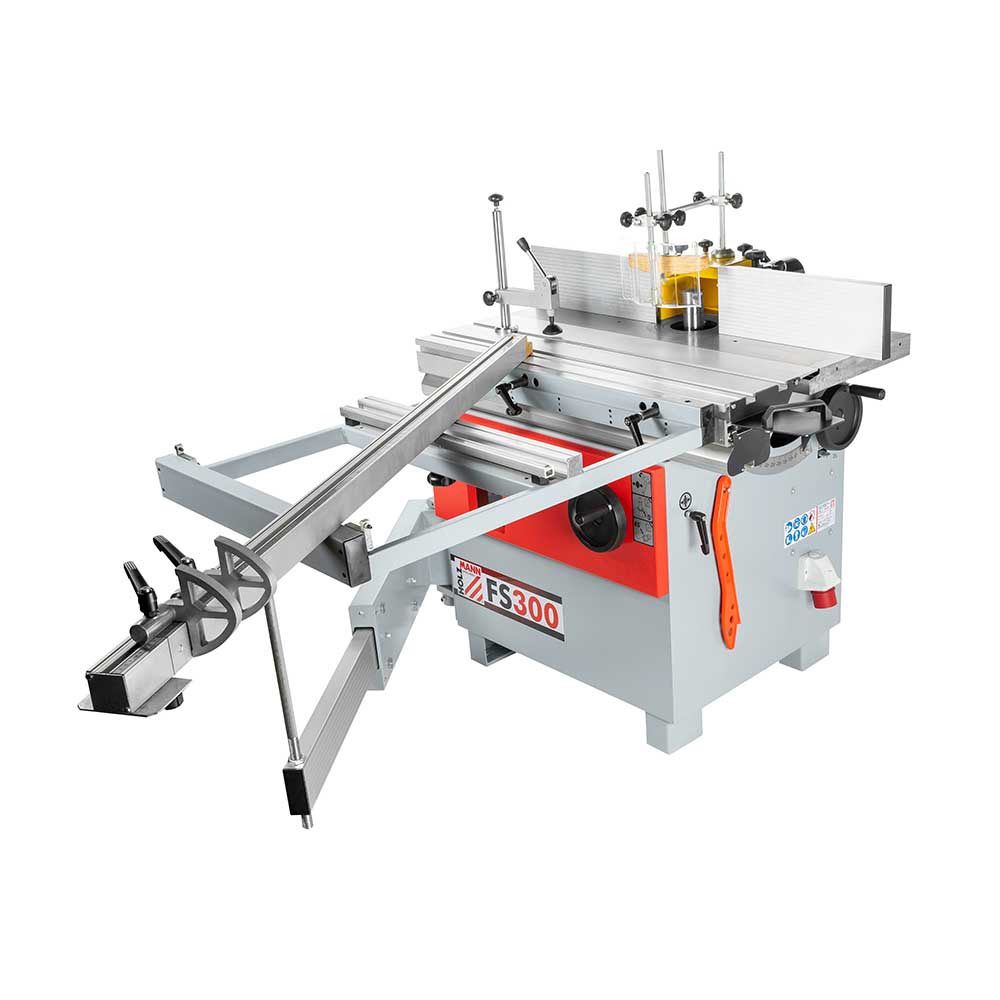

Holzmann FS300 4-Speed Tilting Spindle Moulder with Outrigger-Table 415v
Key Features
- Spindle shaper with sliding and outrigger-table
- heavy, very high-quality overall design

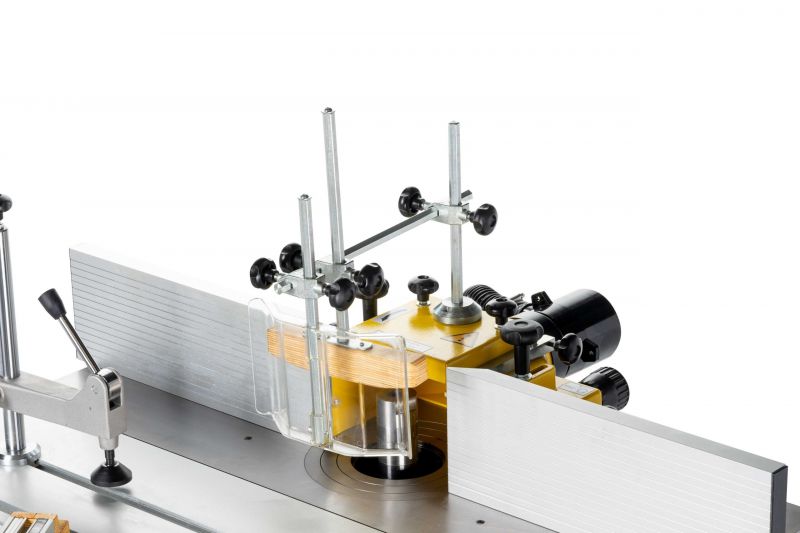

- high quality hood with down holder and fence fine adjustment
- 4 spindle speeds
- tiltable spindle adjustable via handwheel
- dust collection below the sliding table
- Included in delivery: Format sliding table incl. outrigger table and cross-cut fence and spindle shaper hood.
- FS300 4 speed tilting spindle moulder (1400-8000 rpm)+ format sliding table carriage (STC) + panel outrigger STC + tilting spindle via handwheel + 200 max tool dia above table + Shaws guard + 3000W (S1) motor 415v
- 2155 x 990 x 1430 without sliding table
- 2155 x 2400+(1150) x 1430 with sliding table
Technical details
motor data
- motor power s1 in W 3000
- motor power s6 in W 4000
- voltage 400V / 3 / 50Hz
measurements
- table size in mm 1000 x 350
- table height in mm 890
- sliding table in mm1000 x 310?
- suction port in mm 100
technical specification
- milling spindle diameter in mm 30
- milling spindle speed in min-1 1400 / 3500 / 6000 / 8000
- spindle stroke in mm 130
- max. milling diameter in mm 175
- milling spindle swivel (-5)0-45?
- max. clamping height in mm 140
- table opening in mm 178
- max. tool diameter below table in mm 170 (90?) , 100 (45?)
- max. tool diameter above table 200
- mitre fence in mm 450 x 160 (L +R)
volume level and vibration
- sound power level in dB(A) 96,8
- sound pressure level in dB(A) 80,7
weight
- gross weight in kg 343.50
- net weight in kg 280
