Holzmann BF16V Milling Machine 230v
Product Code: HOL/BF16V
Brand: Holzmann
Available to Order Please Call
01726 828 388
£1,139.99 Inc. VAT
£949.99 Exc. VAT

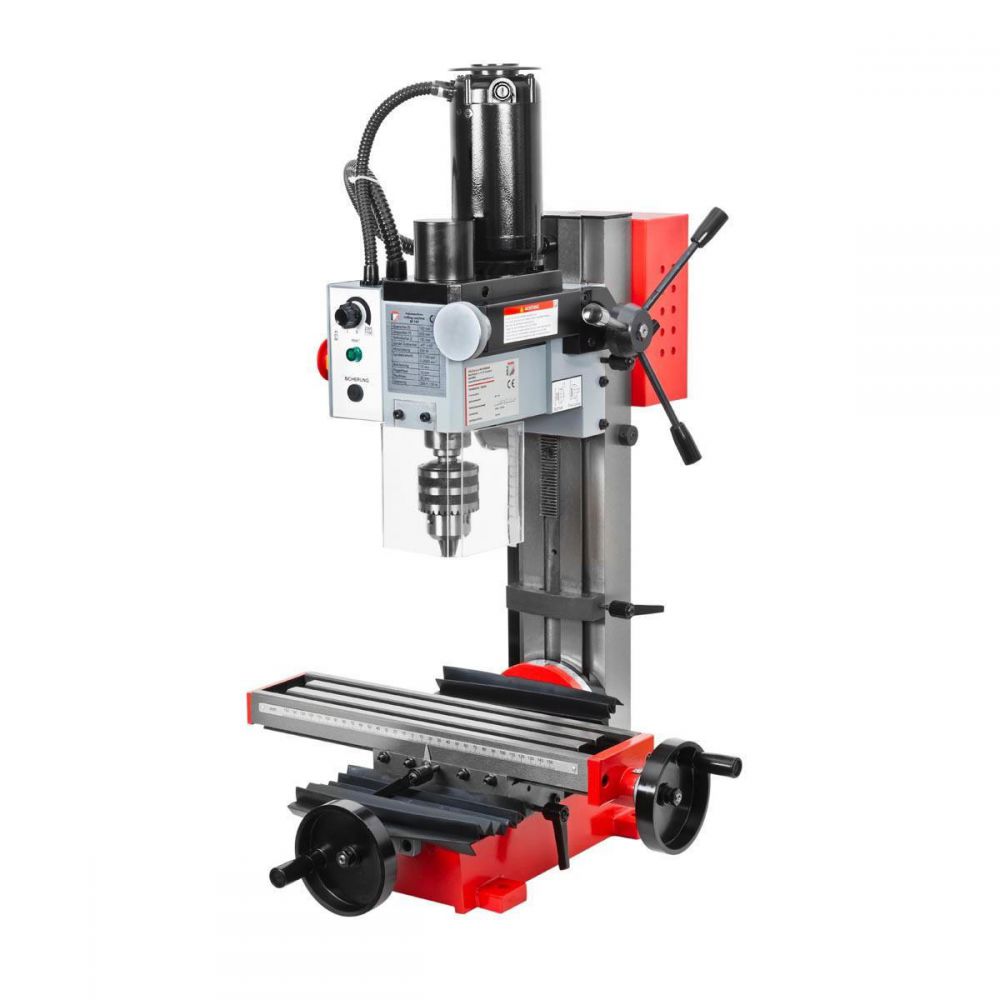

Holzmann BF16V Milling Machine 230v
Key Features
- cross table
- dovetail guided cross table and gear, adjustable via gibs
- rotateable gear head enlarges use of application
- three lever wheel for drilling operation

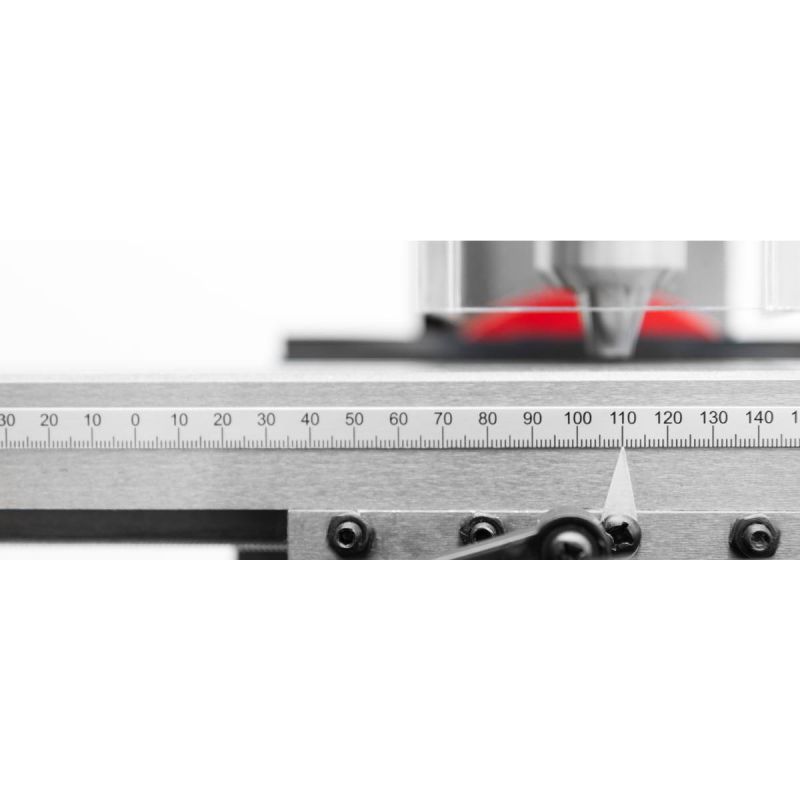

- high quality cross table with scale
- ideal machine for schools, precision mechanic and DIY users
- Included in delivery: drill chuck B16 1-13mm, toolings, draw bar M12
Technical details
motor data
- motor power s1 in W: 350
- voltage: 230V / 50Hz
measurements
- outreach in mm: 160
- table size in mm: 405 x 90
- total dimensions in mm: 520 x 510 x 760
technical specification
- milling adapter: MK3/MT3

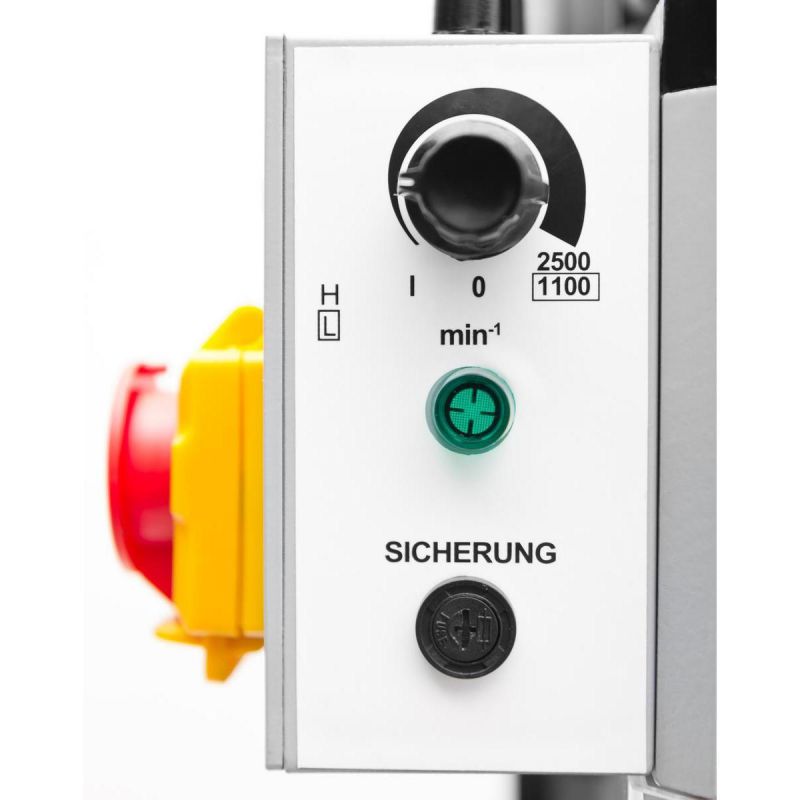

- milling spindle speed in min-1: (I): 0-1100; (II): 0-2500
- max. milling diameter in mm: 30 mm
- head swivel: -45° +45°
- max. distance spindle-table in mm: 100-280mm
- travel X-axis in mm: 230
- travel Y-axis in mm: 100
- travel Z-axis in mm: 18
- T-slots in mm: 12
- max. drilling performance steel in mm: Ø13
- max. drilling performance cast in mm: Ø16
volume level and vibration
- sound pressure level in dB(A): 73
weight
- net weight in kg: 48
- gross weight in kg: 58
