Holzmann BBS550SMART-G Horizontal Band Re-Saw 1050 x 550 mm - Petrol
Product Code: HOL/BBS550SMARTG
Brand: Holzmann
£3,719.99 Inc. VAT
£3,099.99 Exc. VAT

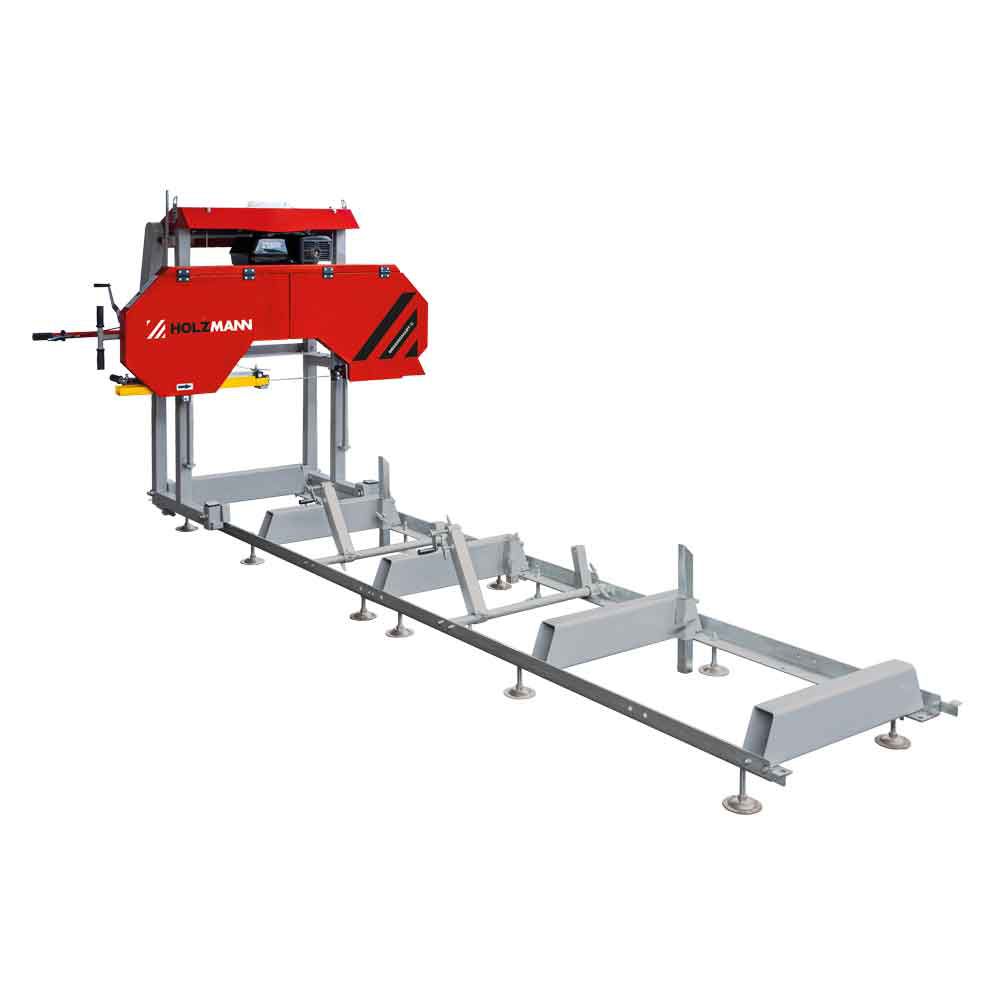

Holzmann BBS550SMART-G
Horizontal Band Re-Saw 1050 x 550 mm - Petrol
Key Features
The machine are designed exclusively for cutting soft, hard, dry, raw or frozen timber or wooden prisms, with lengths according to the machine design.
- this version is equipped with a powerful gasoline engine for non-electric-power?operation more independence in the installation location (no connection to mains)
- the cutting length depends on the number of expanding sections
- all types of timber can be cut with the same band.
- solid and twist free construction
- low level of required maintanance
- easy handling
- massive cast iron drive wheel
- precise guide
- eccentric clamp system
- manual height (thickness) adjustment
- manual cutting feed
- BBS550SMART-G 1050mm x 550mm dia horizontal band re-saw + manual feed and cutting height adjustment + 2m track as standard + optional track sections for added length required. (sold separately) + massive cast iron drive wheel 4 stroke petrol engine.
Technical details
motor data
- motor power s1 in W 8200

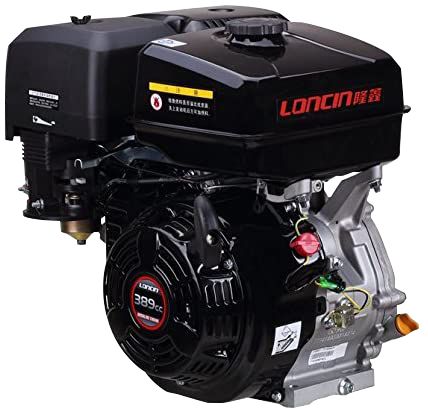

- engine type Loncin G390F
- displacement in ccm 389
- fuel type ROZ 95 (EN228)
- fuel capacity in l 6,5
measurements
- total dimensions in mm 4260 x 1780 x 1700
workpiece measurements
- min. workpiece length in mm 1050
band saws
- saw band in mm 3658 x 32 x 1,1
- saw band speed in m/min 1200
- flywheel diameter in mm ? 475
- max. log diameter in mm ? 550
- max. opening between blade guides in mm 530
- track section in m 2
- kerf thickness in mm 1,5 – 2,2
volume level and vibration
- sound power level in dB(A) 98
- sound pressure level in dB(A) 89
weight
- gross weight in kg 407
- net weight in kg 355
packaging
- packaging width in mm 630
- packaging length in mm 2170
- packaging height in mm 860
