Festool 203166 Festool KV D8/50 Domino Corner Connectors

X
Product Code: FES/AC/203166
Brand: Festool
Low Stock - Please Call For Availability
£101.84 Inc. VAT
£84.87 Exc. VAT
✗ COLLECTION
✗ DELIVERY
Please call to check stock availability for larger quantities
Qty
Festool

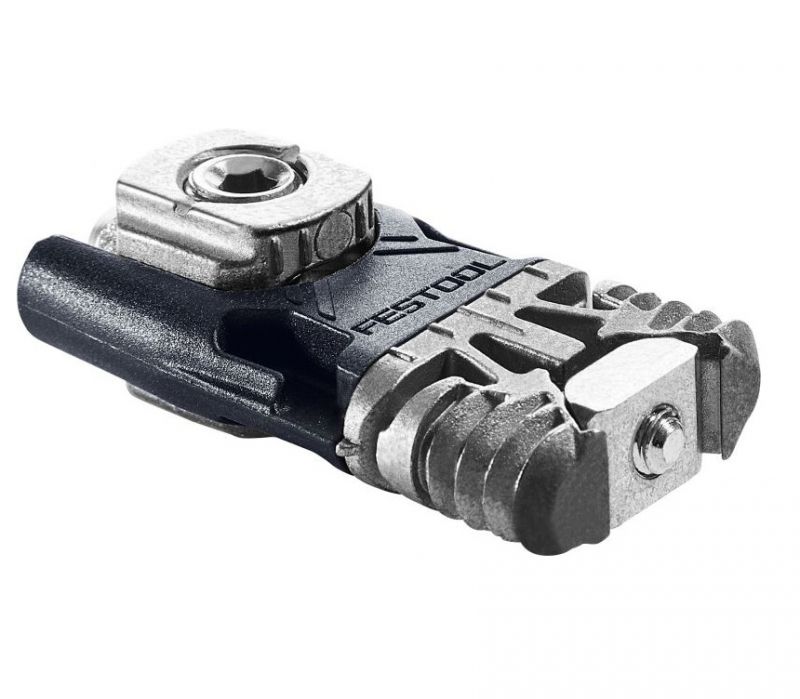

Festool KV D8/50 Domino Corner Connectors - Ref: 203166



Key Features

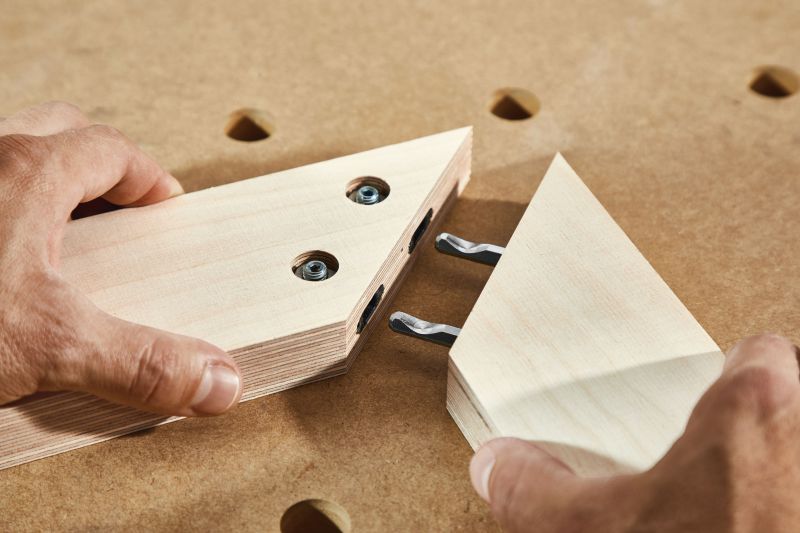

The new DOMINO basic structure connectors and furniture connectors enable stable yet flexible furniture designs that can be separated again. Because of their great versatility, they provide for a very large range of applications – from corner panel joints to centre panel joints to joints between a series of holes. For unique flexibility, speed and efficiency.

  • The clever DOMINO system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly
  • The connectors' large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own.
  • The flush-screwed fixture elements protect each furniture component from being scratched
  • Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture
  • The new detachable DOMINO basic structure connectors and furniture connectors are perfectly suited for a panel thickness of 18 mm to 28 mm
  • for 50 corner joints with the DF 500

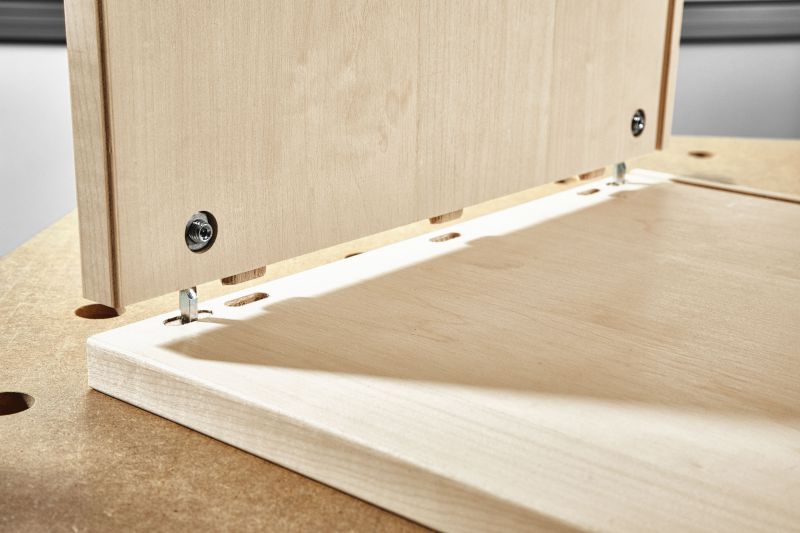

  • the DOMINO/DOMINO KV D8/50 connector is positioned both in the cupboard panel and the base of the structure with the DOMINO jointer DF 500

Technical details
  • Joint fixture (8 mm DOMINO dowel cross-cuts) D8
  • DOMINO routing depth for side part 15.00 mm
  • DOMINO routing depth for base part 28.00 mm
  • Drilling diameter in base part 15.00 mm
  • Panel thickness 18 – 28 mm
  • Qty. in pack 50 Pieces



Items included
  • 50x Split anchor
  • 50x Bolt with M4 thread
  • 50x Plastic trays
  • 50x Cross anchor with threaded pin
  • without cover caps
  • Qty. in pack: 50 Pieces
