EcoFlow 5kWh Prepared Power Kit

EcoFlow 5kWh Prepared Power Kit

ref: 315217 / ZMM100BP5/ZMM100-Combo2-UK

EcoFlow Power Kits are the world's first compact modular power solutions for tiny homes and RVs. With a plug-and-play design, customizing your energy is quicker and easier than ever.

Simple. Smart. Compact.

• 4 Charging methods include up to 4800W solar, 1000W alternator, 3000W shore power, and 1800W Smart Generator input.
• Plug-and-play for simple assembly
• Compact, integrated design, all-in-one inverter hub
• Save space with stackable batteries
• 48V system, a safer, smaller power solution
• Real-time and remote smart controls

Customizable Kits for Any Van Size.

• Whether you’re replacing your van’s electrics or building a system from scratch, Power Kits plug-and-play system allows you to easily modify your hardware to fit your van and power needs.

Kits for Any Cabin Size.

• From tiny home to off-grid cabin, you can adjust your kit to fit any size build.

4 Charging Methods

• You might be on the road, but there are plenty of ways to charge, and fast. We’ve designed a new range of rigid and flexible solar panels giving your van a solar input of up to 4800W*. Use your alternator to recharge with 1000W. Spending the night on a campsite? Then take advantage of shore power for an extra 3000W. Caught short? Rely on our Smart Generator for emergency backup. *Tested using a production model in a closed environment with favorable conditions. Actual results may vary depending on environment, usage, and firmware version.

Simple Assembly.

• We made our modular system plug-and-play so you can quickly customize your van power whenever you want. Simply stack a battery to increase capacity, or plug in a solar panel for faster charging.

Compact and Integrated Design.

• Unlike other off-grid power solutions, Power Kits combine five components into one Power Hub that deals with all your power needs, saving you space, money, and set-up hassle. Our 2 and 5kWh batteries securely stack in threes, giving you an expandable capacity of up to 15kWh.

Auto-Heating Batteries.

• Our LFP batteries are auto-heating so you can even use them in cold climates without affecting their life-span.

48V, a safer, smaller power solution.

• Power Kits offer you a safe, 48V power solution for your off-grid home. A 48V system produces the same amount of power, but unlike 12Vs, only a quarter of the electric current passes through thinner wires, producing significantly less heat and power loss.

Space-Saving Solutions.

• To save your valuable space, we shrank down the traditional power kit, integrating components, using thinner wires, and creating a unique stackable battery. Conveniently conceal the Power Hub, batteries and other accessories so they’re out of sight, under seats or in a closet.

Smart Controls.

• Keep an eye on your energy at home and on the go with a whole host of setting options and real-time data tracking accessible from the app and Power Kit Console.

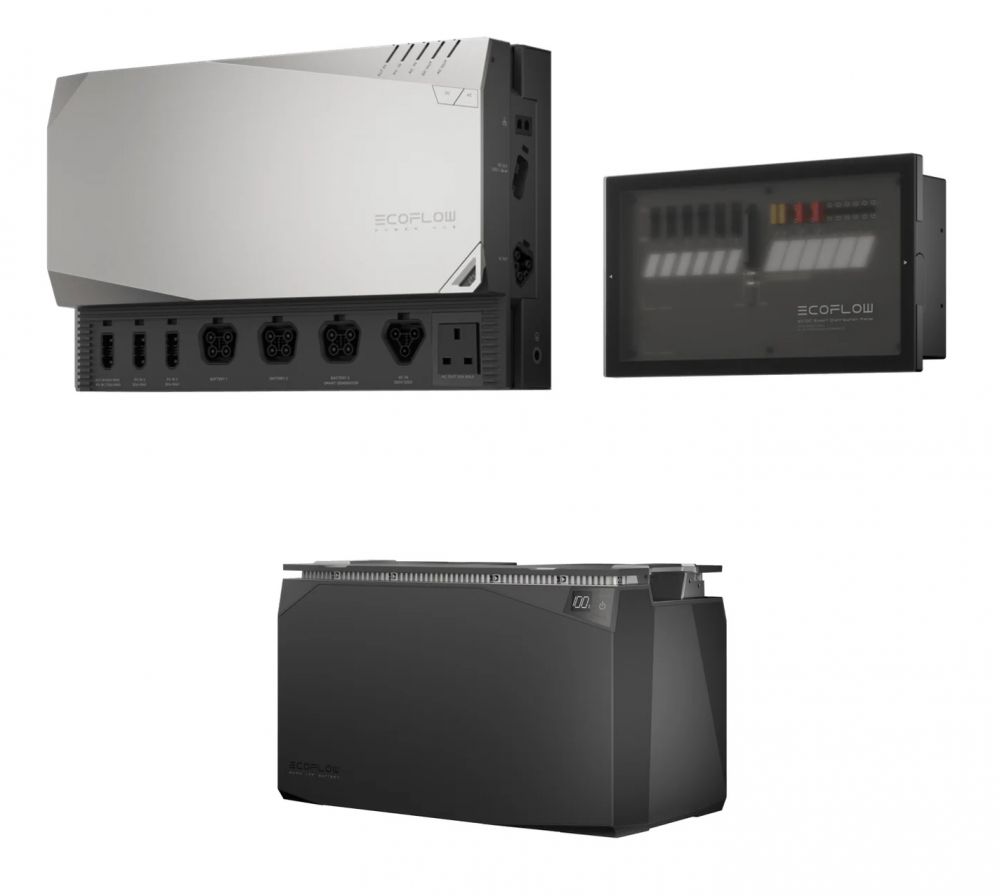

• 1 x Power Hub
• 1 x 5kWh LFP Battery
• 1 x Cable Pack
• 1 x AC / DC Smart Distribution Panel
• 1 x Battery Mounting Strap

Power hub

• Net Weight (kg)14
• Net Weight (lb)31
• Dimension (mm)480x140x300
• Dimension (in)18.9x5.5x11.8
• Wi-FiSupported (2.4G, <120m)
• BluetoothSupported ( <15m)
• Mobile AppSupported
• AC Main Output/FrequencyPure Sine Wave, 3600W (Surge 7200W), 230V, 50Hz
• DC Main Output13.6V/70A 1000W Max: 26.4V/60A. 1600W Max
• AC Main InputX-Stream Fast Charging 3000W Max, 15A Max
• AC Main Input Voltage/Frequency230V, 50Hz
• Operating Temperature-25°C - 60°C (-13°F - 140°F)
• Storage Temperature-25°C - 60°C (-13°F - 140°F)

• Cell ChemistryLithium Iron Phosphate
• Cycle Life~3500 Cycles up to 80% Capacity
• Protection LevelIP54
• Tests and CertificationsUL Standard, FCC, CE, E-Mark, UKCA, UN38.3, RCM, PSE​

• AC Main Input16A Max. 230V, 3600W
• DC Main Input70A Max
• AC Output6 AC Positions, 10A Max Each
• DC Output12 Fused DC Positions (6 Positions Controllable via Power Kit Console & App)
• Operating Temperature (F)-13°F-140°F
• Dimensions8.3x13.9x3.9in (Height x Width x Depth)
• Net Weight(lbs)5.7lbs
• Protection LevelIP21
• Tests and CertificationsUL Standard, FCC,PSE
