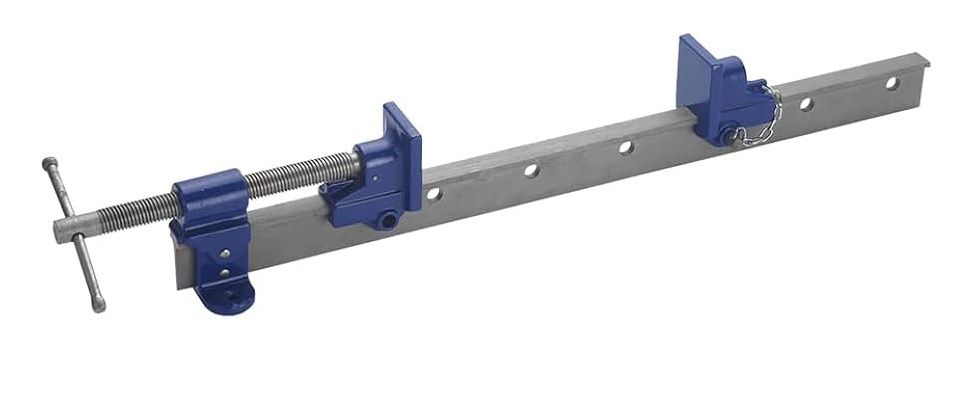

Eclipse ETBR42 T-Bar Sash Clamp - 1070mm (42 Inch) Clamping Capacity

Eclipse ETBR42 T-Bar Sash Clamp - 1070mm (42 Inch) Clamping Capacity

• T Bar clamps for a wide range of wood working applications including gluing of large pieces of wood and furniture. Replacement tail slide, peg and chain available.
• Manufactured from a rigid "T" bar section steel bar fitted with a ductile iron head and slide
• Steel T Bar offers maximum tensile and yield strength and resists twisting under high clamping pressure and can achieve an average clamping force of up to 1000 Kgf
• The ductile head and slide are guaranteed unbreakable
• Tommy bar will bend before the clamp becomes over stressed
• Twin start rolled acme thread applies pressure quickly and smoothly to the workpiece
• The drilled feet in the fixed head enable the clamp to be mounte to a workbench
• The slightly tapered jaws enable perfectly parallel clamping
• Slide secured by a solid steel pin passing through one of the location holes spaced along the steel bar
• Ideal for clamping large and heavy pieces of furniture and wood when gluing

• Clamping capacity: 1070mm (42")
• Bar length: 1220mm (48")
