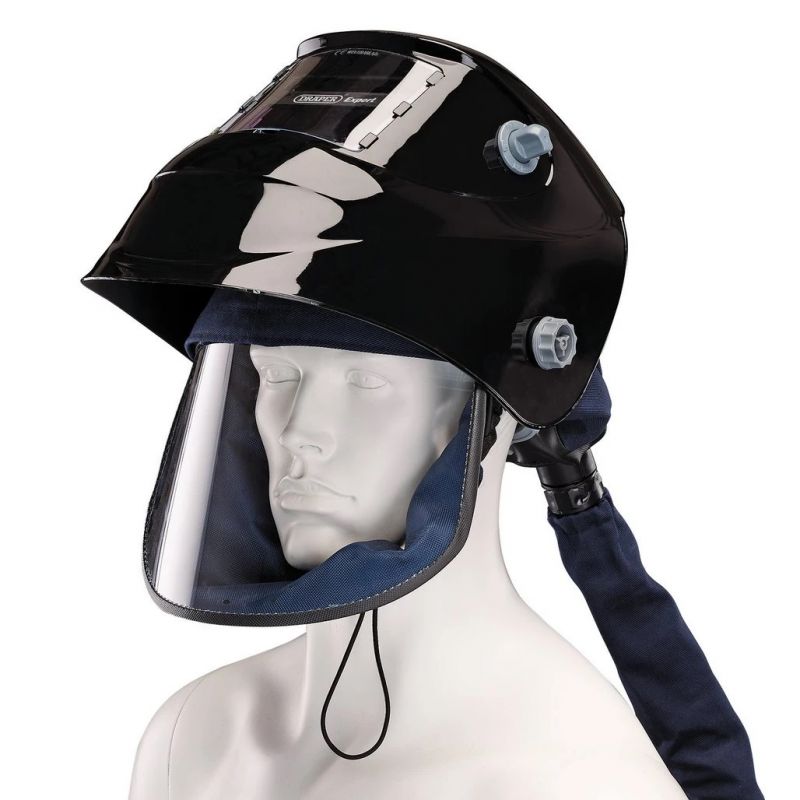

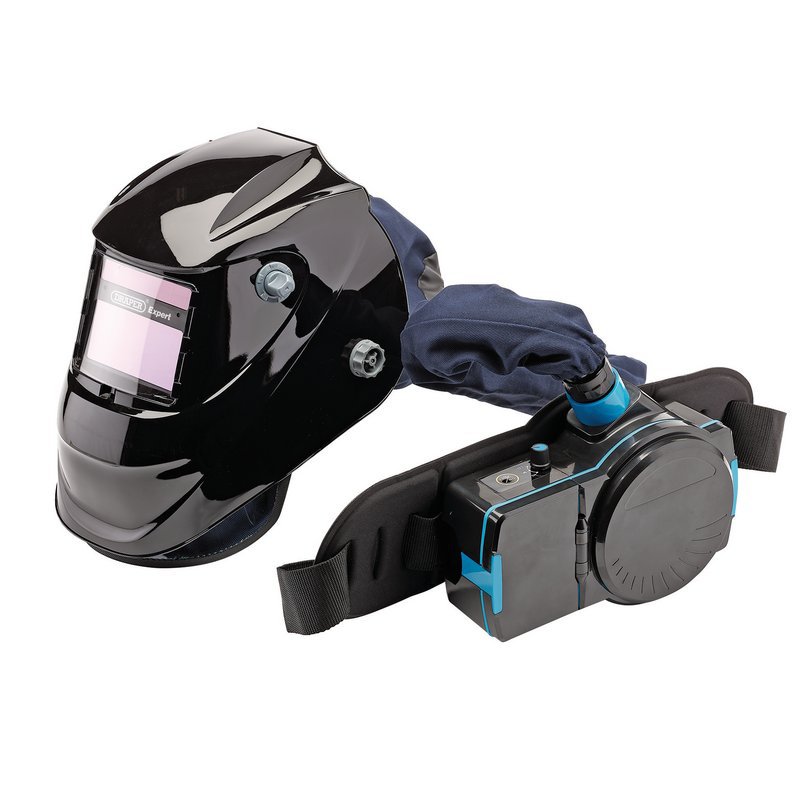

Draper Expert Air-Fed PAPR Auto-Darkening Welding Helmet, Black - 02518

Draper Expert Air-Fed PAPR Auto-Darkening Welding Helmet, Black

ref: 02518 / WHAFVS

• This air-fed powered air-purifying respiratory (PAPR) welding helmet is ideal for keeping lungs and eyes healthy in a challenging work environment.
• It offers electronically controlled airflow with three levels: 150L/min, 180L/min and 220L/min.
• There is a dual airflow adjustment knob –– high, medium and low –– and an on/off button.
• For safety, there is an alarm to warn of low airflow and low battery.
• The air hose is fire retardant and includes a P3 filter.
• This versatile helmet is auto-darkening, automatically switching on when the arc is struck and rapidly changing to the required amount of shade.
• The shade coverage includes 4 and 9-13.
• The helmet is powered by a solar cell and a lithium-ion battery (replaceable) for fast switching and low amp sensitivity.
• The 98 x 48mm viewing area provides good visibility of the weld zone.
• It is suitable for TIG, MIG and arc welding and also grinding.
• The comfortable headband is adjustable using the knob to enable an optimal fit.

• Suitability: TIG, MIG, arc and grinding
• Airflow rates: 150L/min, 180L/min and 220L/min
• Lens size: 98 x 48mm
• Shade levels: 4 and 9-13
• Lens switching time: 1/25,000s
• ARC sensors: 2
• Operating temperature: -10 to +55℃
• Power supply: Li-ion battery and solar
• Battery: 12V 4.3Ah Li-ion (replaceable)
• Weight: 2.31kg
