Door Hinge Jig Package Deal free Corner Chisel + Router Cutter Trend Hinge/Jig/A
Product Code: HINGE/JIG/A/DEAL-PK2
Brand: Trend
In Stock
£216.92 Inc. VAT
£180.77 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Trend Door Hinge Jig Package H/JIG/A/DEAL
c/w 2 piece hinge jig, corner chisel* and router cutter
The 2 piece Contractor Hinge Jig is designed for recessing hinges in wooden doors & frames with plunge router.
Key Features
- It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
- Used on-site & in joinery shops to increase productivity with excellent results.
- Four apertures for fire door requirements.
- No need for marking out in the conventional way.
- Quick & simple to set-up as the hinge is used as the pattern.
- Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
- Use with a light duty plunge router with 1/4 inch collet.
- Long reach router cutter required, 12mm diameter with 70mm overall length.
- Angled position slots to prevent creep.
- Unibase may be needed.
- Patent No. GB2285410.
- T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.
Specification
|
Description |
Metric & Imperial Conversion |
| Hinge sizes possible | |
| Length min. | 2-5/8" (67mm) |
| Length max. | 5" (127 mm) |
| Width min. | 3/8" (9.5 mm) |
| Width max. | 1-3/8" (35 mm) |
| Width max. in 35mm rebate | 20mm |
| Width max. in 44mm rebate | 30mm |
| Door sizes possible | |
| Height min. | 6' 5" (1956 mm) |
| Height max. | 6' 10" (2100 mm)* |
| Thickness min. | 5/8" (16 mm) |
| Thickness max. | 2" (51 mm) |

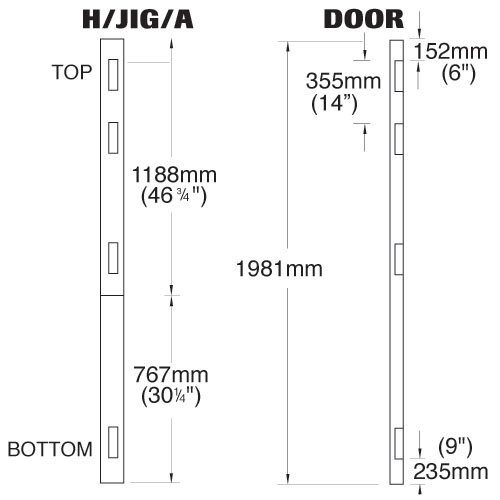

* Please note for doors over 2040mm the botton hinge will be higher than 9" up.

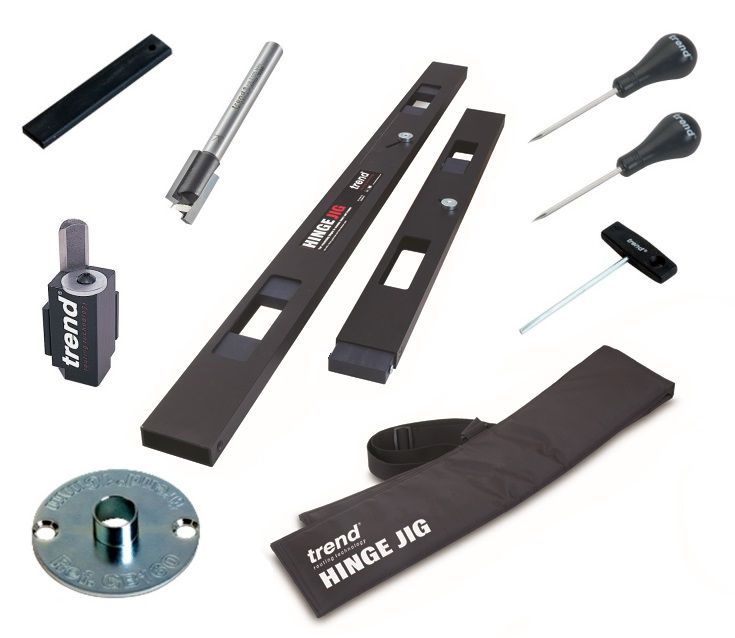

Trend Hinge Jig / Hinge Recessing Jig is supplied with:
- 4 x Apertures
- 4 X Bradawls with spacer
- 1 X 16mm guide bush
- 1 X T-handle hex key
- 1 X 4mm spacing gauge
- 1 X Fabric storage case with H/JIG/A
Replacement Parts
|
Description |
Product Reference |
| 1. Special guide bush (dia. 16mm x 10mm) | GB160 |
| 2. Bradawl (requires spacer) | WP-HJ/09 |
| 3. Nylon spacer for bradawl (1 off) | WP-HJ/08 |
| 4. 4mm feeler gauge (1 off) | WP/HJ/10 |
| 5. Aperture block (1 off) | WP-HJ/02 |
| 6. T-handle hex key (1 off) | WP-AKT/01 |
| 7. Plastic storage tube (for HINGE/JIG) | CASE/HJ |
| 8. Fabric carry case (for J/JIG/A) | CASE/HJ/A |
Trend One Piece Hinge Jig
Trend Skeleton Hinge Jig
Trend Lock Jig
Product Videos
View similar items
Items Included
;)
1 X TREND TR12x1/4TC Hinge Jig Router Cutter Two Flute 12.0mm dia x 19.0mm Cut - Ex LONG 70.0MM O/L
;)
1 X TREND H/JIG/A HINGE JIG TWO PART IN CASE
;)
1 X TREND CORNER CHISEL C/CHISEL for Hinge Jig
