Charnwood W691 2HP Single Bag Dust Extractor

X
Product Code: CH/W691
Brand: Charnwood
In Stock
Was £349.00 Inc. VAT
Now £329.00!
£274.17 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Qty
Charnwood

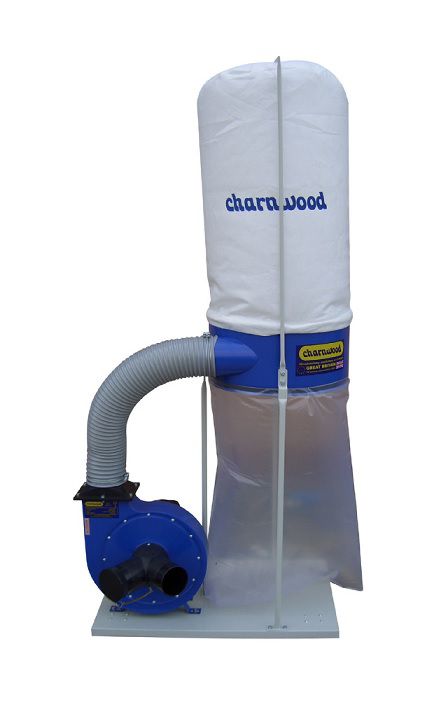

Charnwood W691 - 2HP Single Bag Dust Extractor

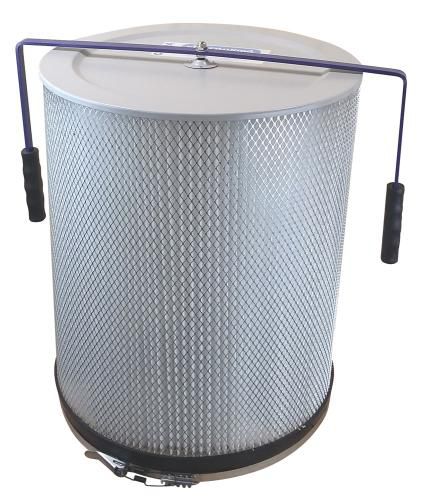

OPTIONAL Fine Cartridge Filter shown for illustration only



Key Features

  • Powerful & Quiet 2hp Induction Motor
  • 2 Inlets For Simultaneous Extraction

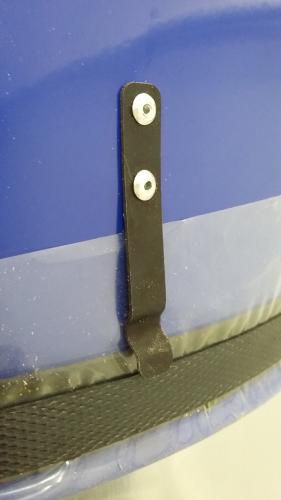

  • Quick Action Metal Bag Straps
  • Transparent Heavy Duty Collection Bag
  • 5 Micron Filter Bag
  • 16amp Connection Required



Strengths and benefits

  • A larger extractor aimed at workshops where extraction is not continuously needed.
  • These more powerful machines give a higher flowrate per hour which allows a longer hose length to be attached or a small system of branches and gates to be fitted around the workshop.
  • The second in our series of incredibly low priced units is this 2hp model fitted with a large collection bag making it suitable for any high volume waste machinery. The extractor is fitted with two inlets, which can be used simultaneously for example to collect from above and below the saw blade on a table saw. Maximum recommended total hose length is 7 metres.
  • Supplied with 5 micron filter bag, transparent collection bag, durable steel fan, NVR switch, wheels, quick release metal straps and Y branch.
  • A 16amp fixed electric supply is required to run this machine.
  • Hose is not supplied as standard, our 100mm diameter transparent hose is recommended, sold by the metre.
  • This machine is intended for Light Trade use which means it has a maximum continuous running time of 2 hours, after which the motor must be rested and left to cool. If you need need a longer duty cycle than this please look at our professional heavy duty range of extractors.
  • We also have a large range of accessories available for connecting your dust extractor to the dust producing machinery. Reducers to join the 100mm diameter hose to the smaller diameter outlets usually found on bench top machinery. Hoods to collect dust from machinery with no purpose made collection points.



Specification

  • Motor (induction): 1500w (2hp), 240v
  • Flowrate (cubic metres per hour): 2000m3/hour
  • Inlet Diameter: 1 x 125mm or 2 x 100mm
  • Bag capacity: 148 Litres
  • Maximum continuous run time: 2 hours
  • Dimensions (WxDxH): 900mm x 560mm x 1950mm
  • Weight: 47kg
  • Rating: Hobby / Light trade
  • Warranty: 5 Years



W691 Owners Manual

Buyers Guide to Dust Extraction

Charnwood Machinery 5 Year Guarantee
